This is a simple one from Greer Amps – the Tomahawk Deluxe Drive. It has some distinct similarities to a Rat or Distortion +, in that there’s opamp clipping, driving hard clipping diodes, and a tone control.
Schematic from PedalPCB. I added a buffer on vref, as half the opamp wasn’t being used, so why not.

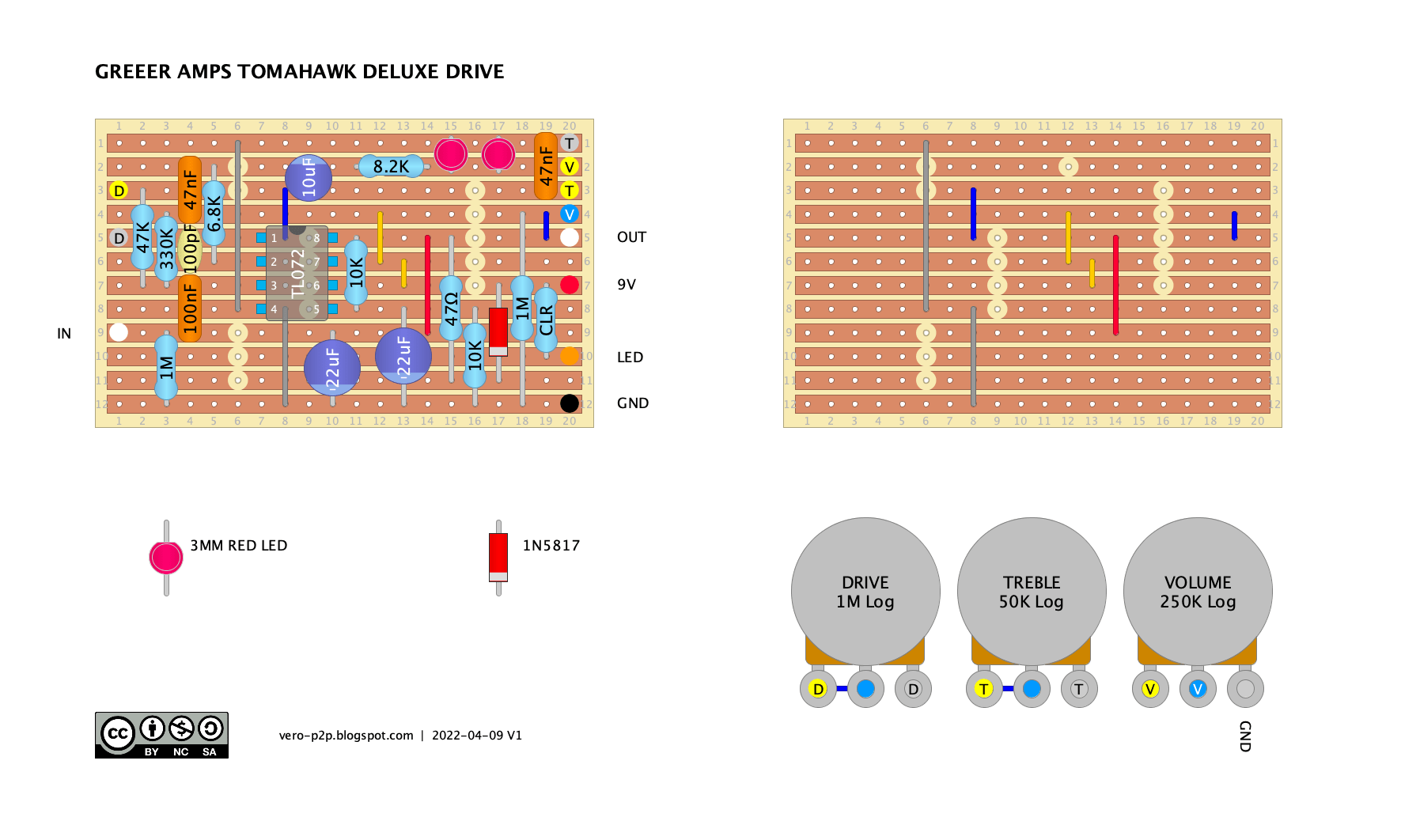

GREER AMPS TOMAHAWK DELUXE DRIVE – VERO LAYOUT
