So it’s another Fuzz Face variant – but no doubt. good one. The Earthquaker Devices Erupted is a one-knob Fuzz Face with a single-knob controlling bias. Quite a few layouts included volume pots; if you prefer to have one, I’m sure you can work out how to do it.
Signal path: buffer > pickup simulator (transformer) > Fuzz Face with external bias control. The internal trimmer is to help set the external bias control to a suitable position.

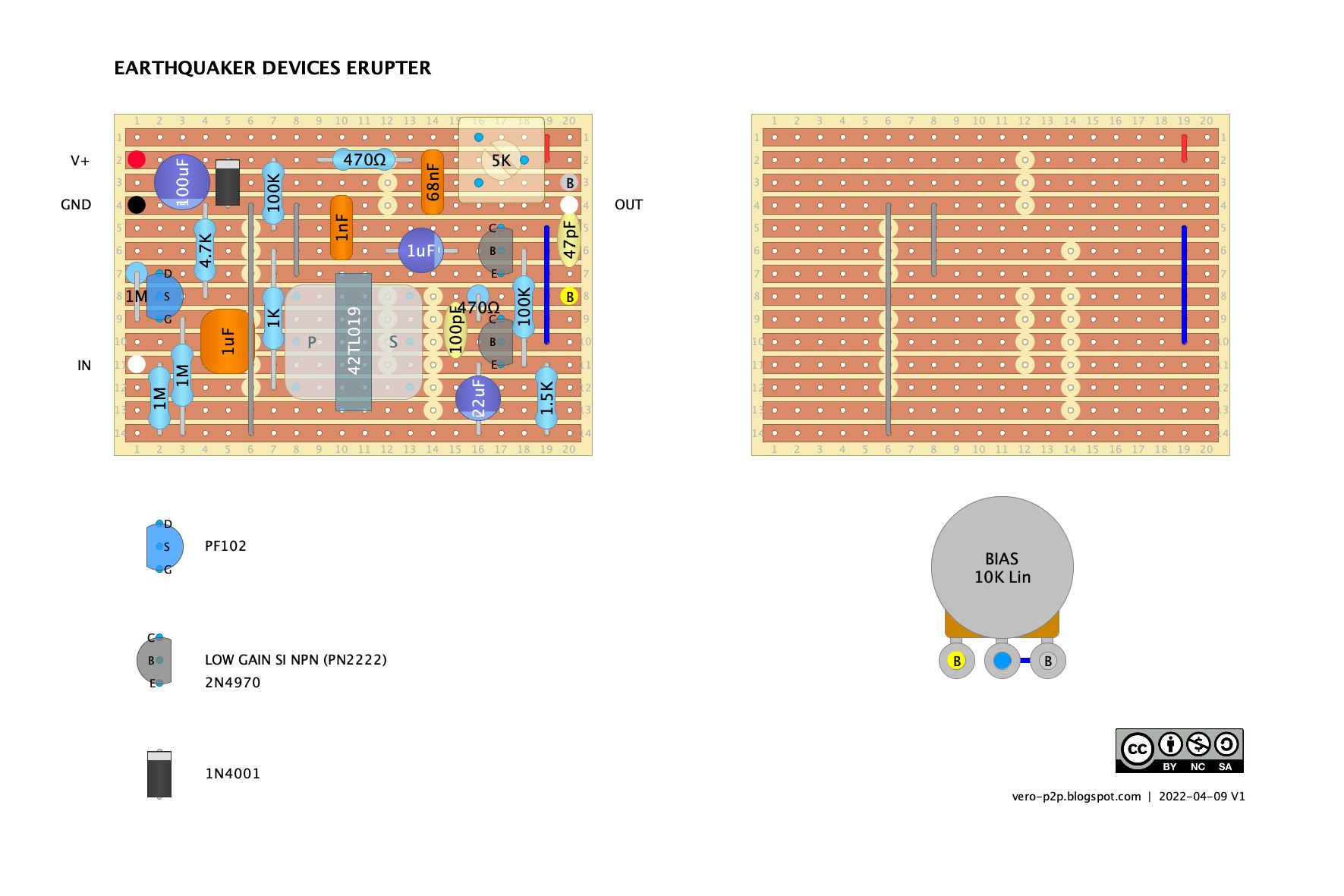

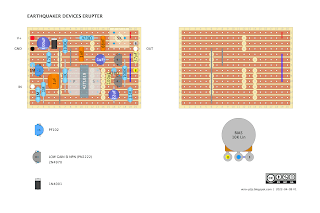

EARTHQUAKER DEVICES ERUPTER – VERO LAYOUT
