Macari’s often release pedals that are minor variations on the same circuit – in this case the “Sakata” Colorsound hybrid one knob fuzz has quite a few value changes compared to the previous hybrid they released, which was closer to a stock fuzz box. Macari’s describe the Sakata as being tuned closer to a MK1.5 I … Read more
The Colorsound Fuzz Box has to be one of my favourite fuzz circuits, due to its simplicity and reliable results. It’s very much a one trick pony, but if you just want a nice thick fuzz, this will to that trick quite well. The original silicon circuit is said to be a Dick Denny design, … Read more

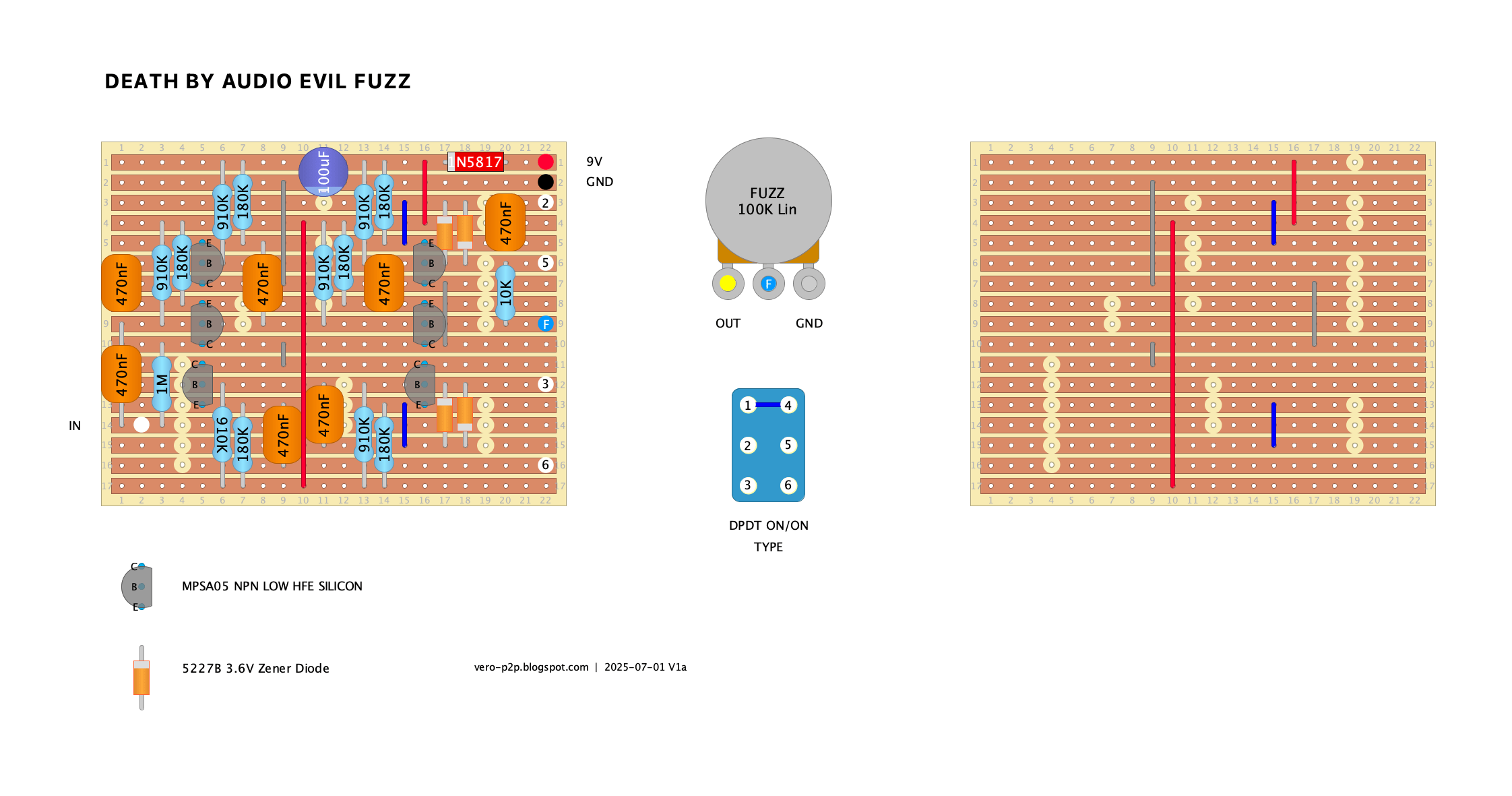

Thought I was overdue for a regular vero layout, as it has been a while – schematic available at PedalPCB. It has the usual DBA weirdness – upside down low-gain silicon transistors etc (reverse beta). DEATH BY AUDIO – EVIL FUZZ VERO LAYOUT
Here’s a simple Rangemaster treble booster. I’m jotting down some notes from my recent builds because I really dig this layout. I used a 1590BBS enclosure and an 8-way tag strip. It’s pretty similar to the Pigdog Eel Pie layout, which inspired my design. Inside, you’ll find a Mullard OC71 transistor. But honestly, the specific … Read more

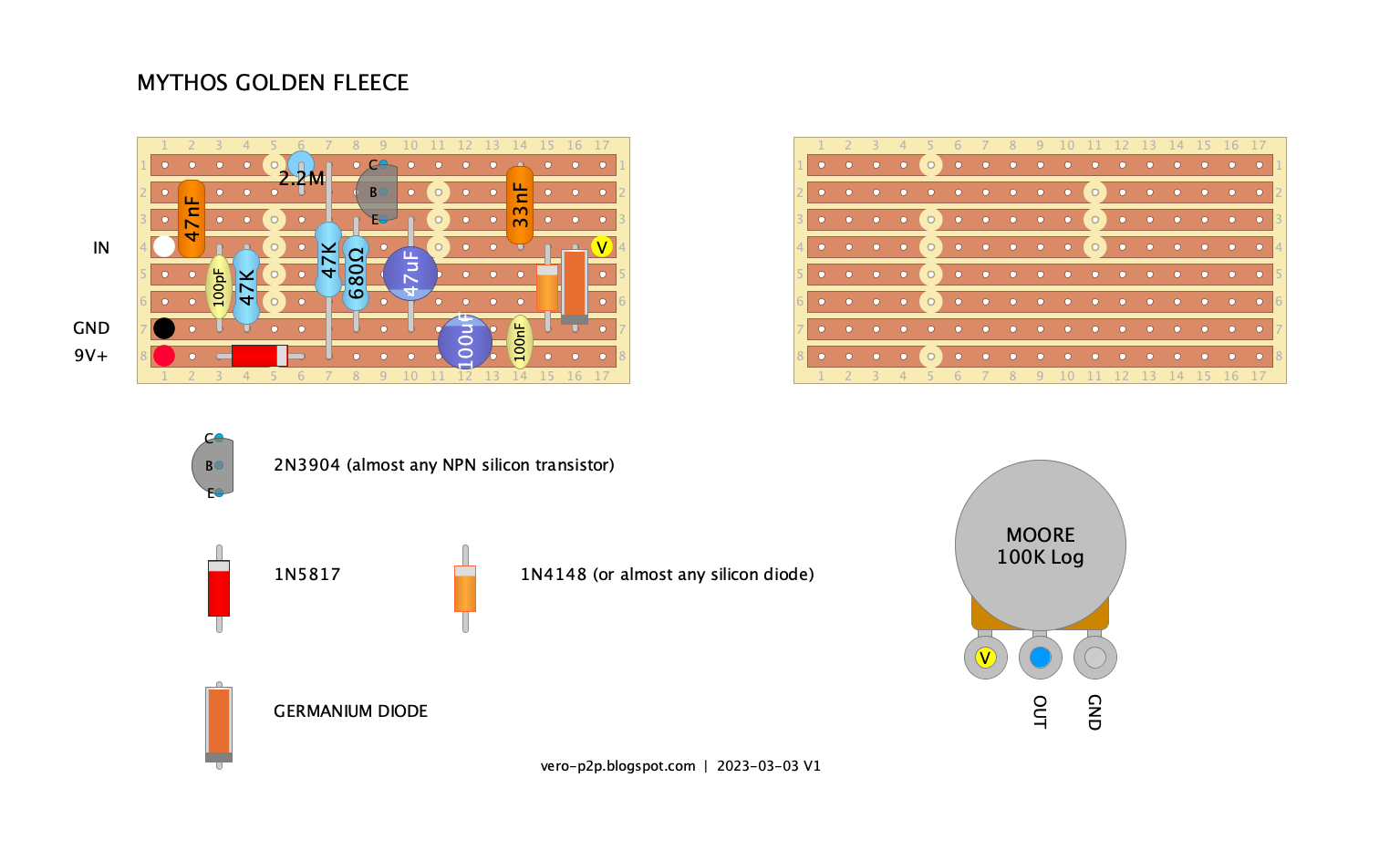

In Australia we have a lot of unusual sayings – one that comes to mind here is “you’ve been fleeced”. i.e. you paid too much money for something – specifically a Golden Fleece on the secondhand market when you can still buy perfectly good new one. The Mythos Golden Fleece is pretty much a … Read more

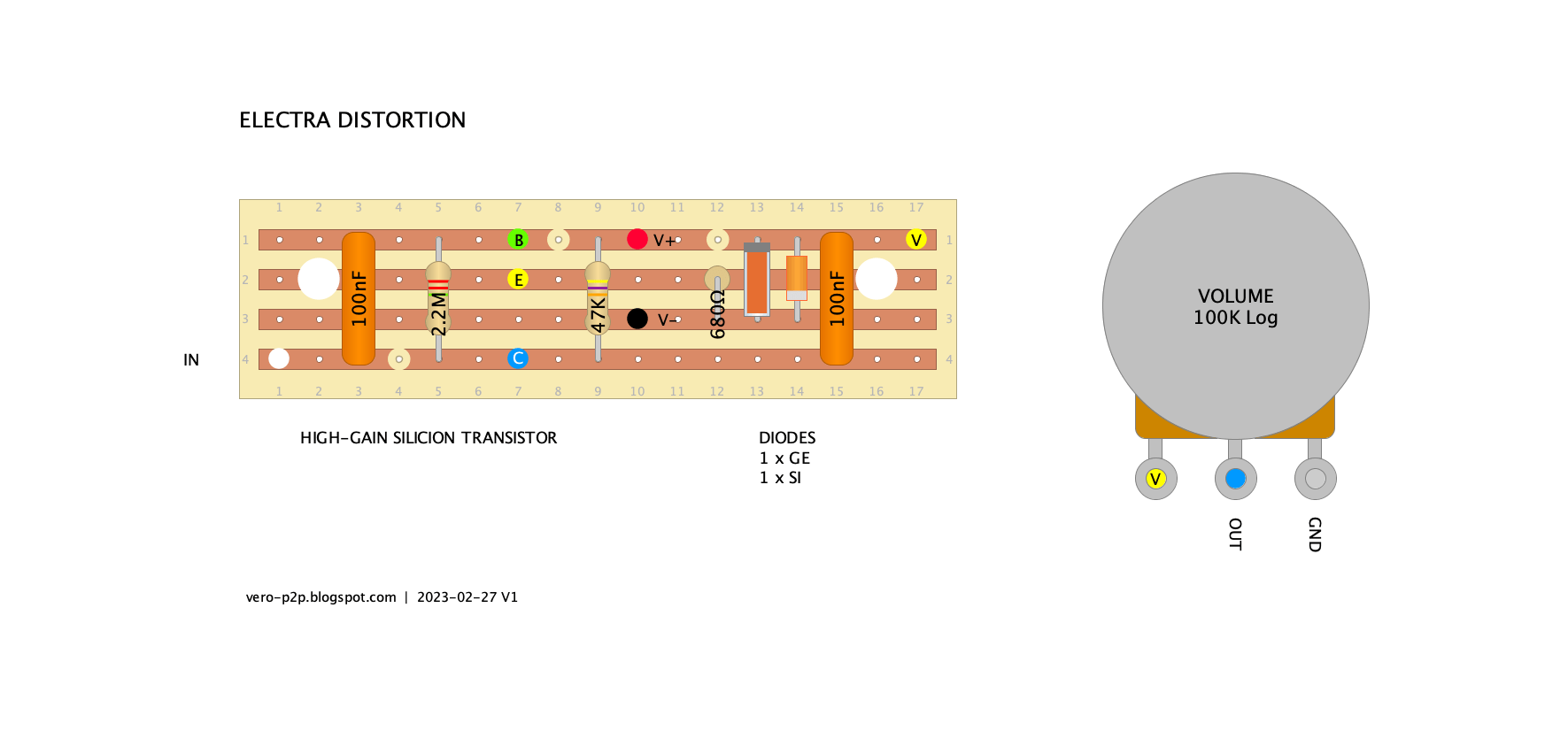

I accidentally messed up a small Colorsound Fuzz Box board by drilling mounting holes in the wrong place – but I didn’t want to waste the vero board, and I thought an Electra Distortion & Colorsound Fuzz Box might make a nice pair of one-knob pedals. Perhaps not the most exciting post to return … Read more

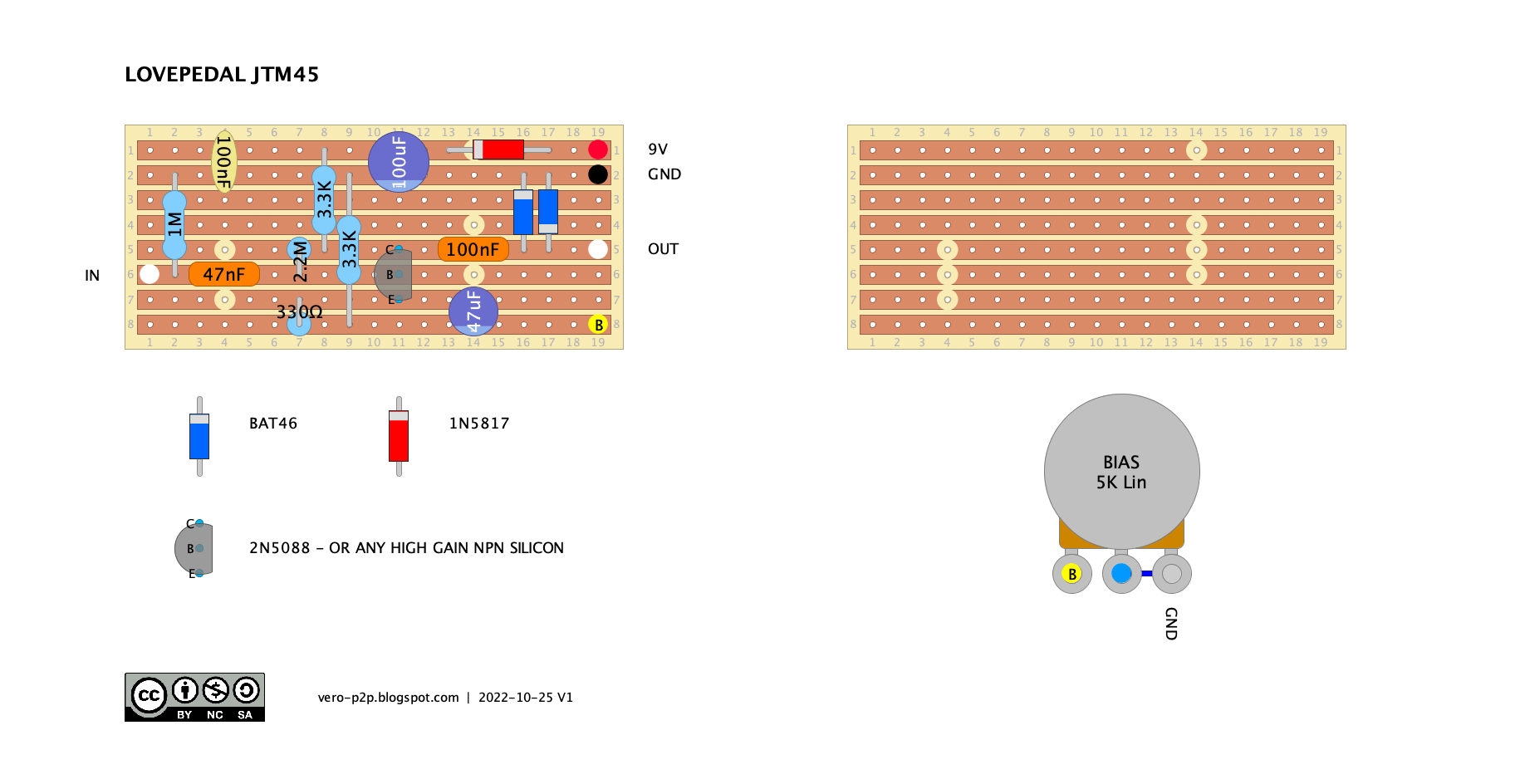

A nice easy one – and I’m not sure if anyone has done more versions of an Electra Distortion than Lovepedal has. But hey if it’s working for them and people like it, who am I to judge? A JTM45 it is not. LOVEPEDAL JTM45 – VERO LAYOUT

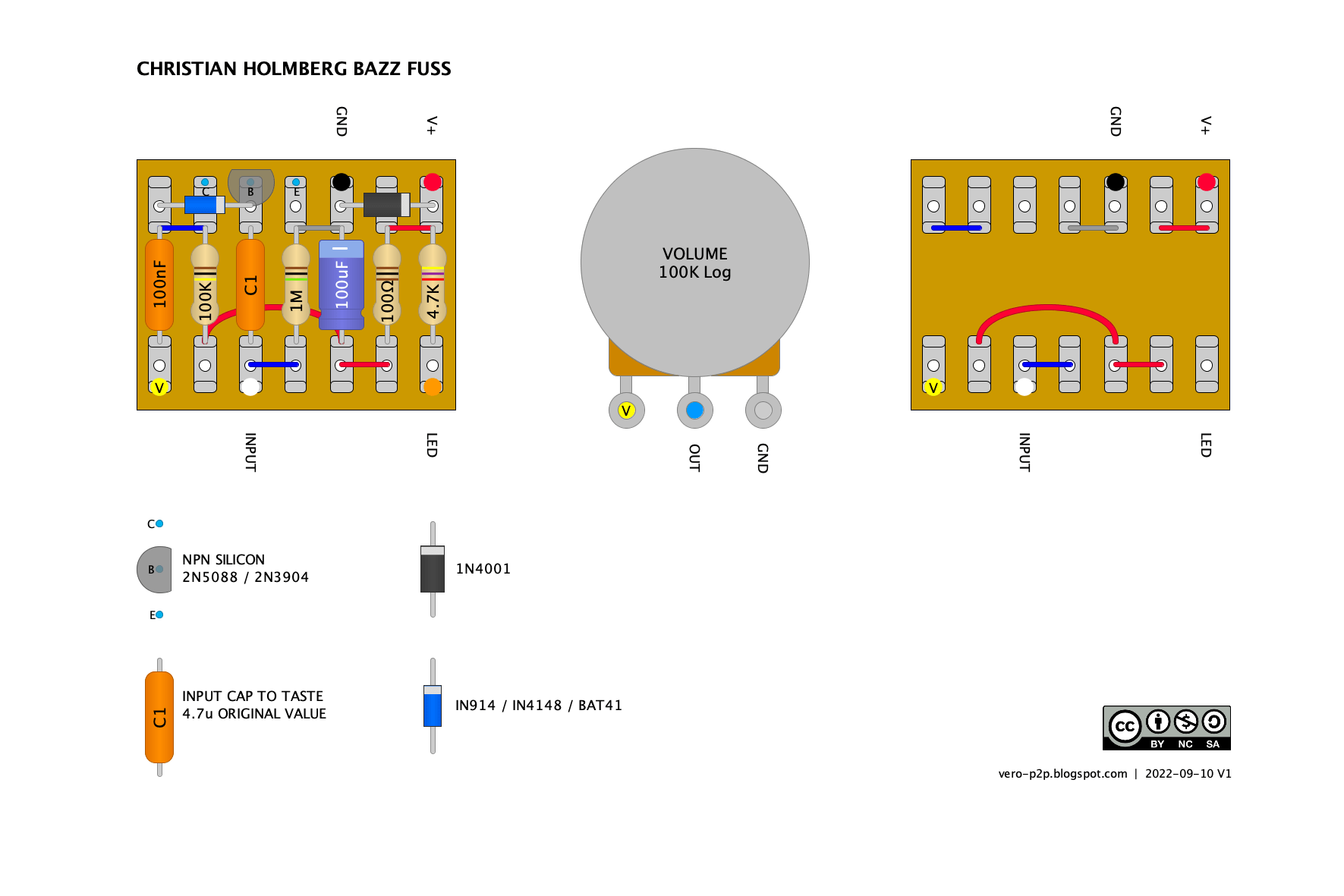

This is a nice easy one for tag board off-cuts. The Christian Holmberg (AKA Hemmo) Bazz Fuss. A simple one transistor monster of a fuzz. Kind of surprised that I had not done a layout or actually built one of these… how did this not happen earlier? I was prompted to do this after … Read more

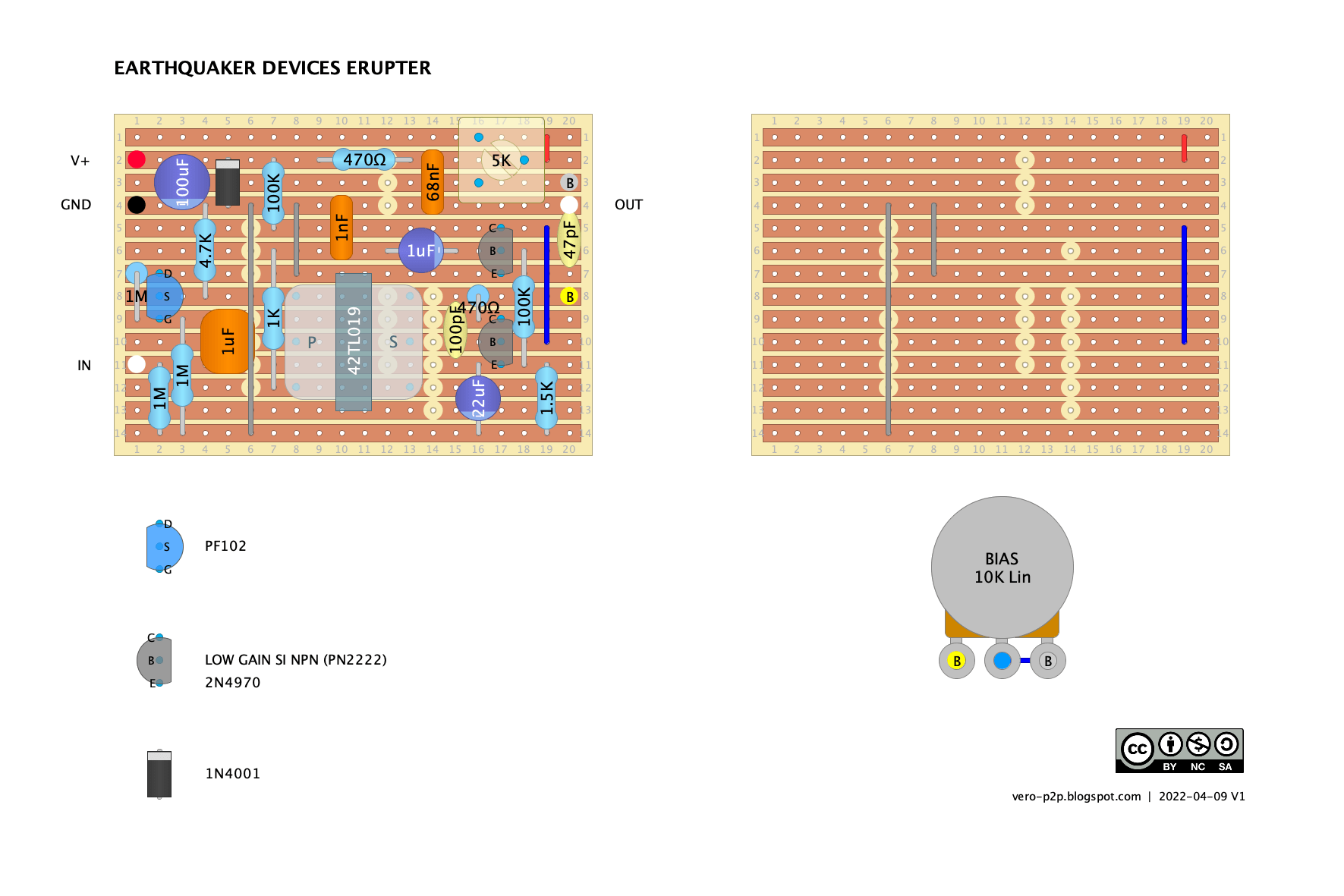

So it’s another Fuzz Face variant – but no doubt. good one. The Earthquaker Devices Erupted is a one-knob Fuzz Face with a single-knob controlling bias. Quite a few layouts included volume pots; if you prefer to have one, I’m sure you can work out how to do it. Signal path: buffer > pickup simulator (transformer) > … Read more

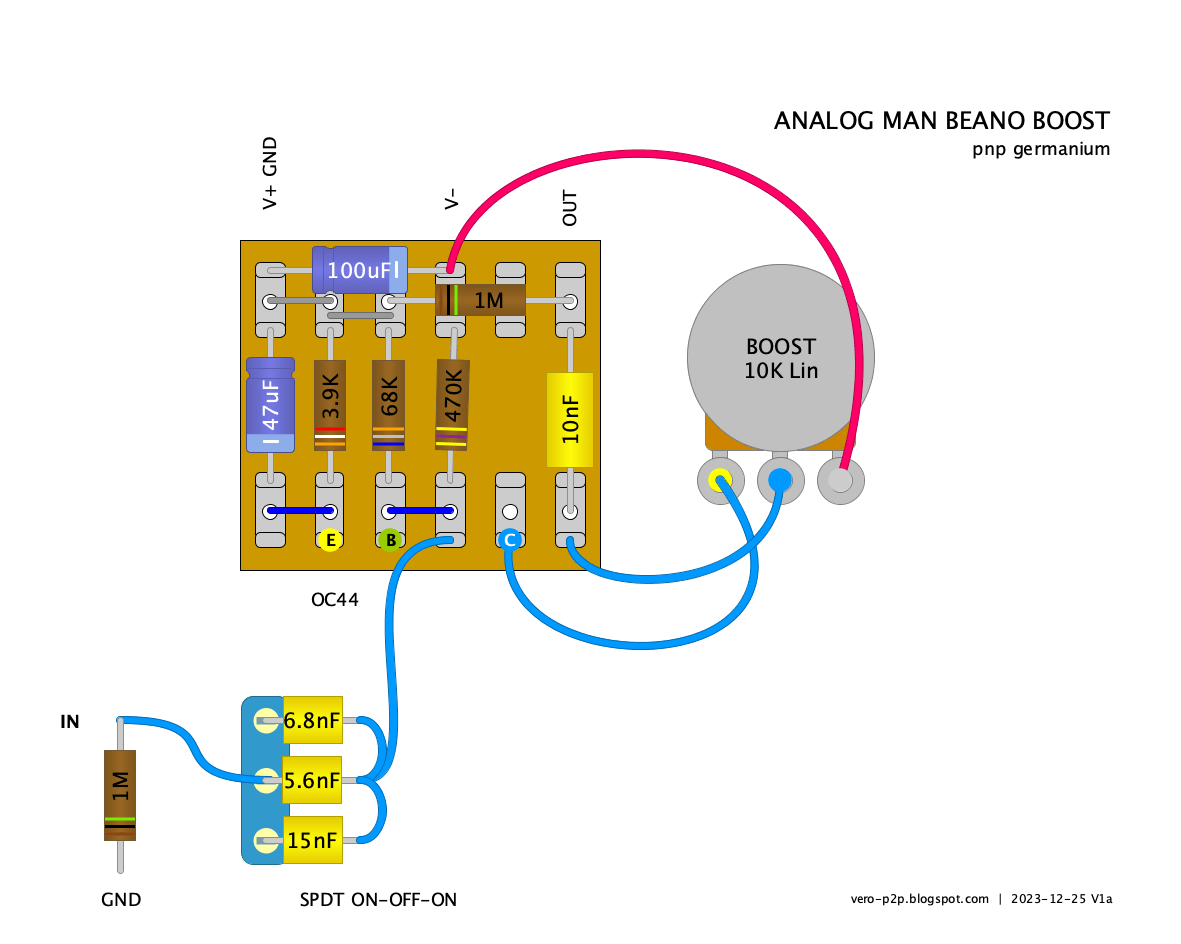

The Analog Man Beano Boost takes the classic Rangemaster treble booster and adds a very useful function — a switched input capacitor that widens the tonal range beyond the original’s treble boost. Because it’s a single-transistor germanium circuit, the choice of transistor does shape the tone and clipping character, especially at higher gain settings. That … Read more
