MATSUMIN: Valve Caster

by

Just realised that I never posted a regular vero layout for one of my favourite guitar effects – the Matsumin Valve Caster.

It doesn’t require power filtering, so you could easily drop the 100ohm resistor and 100u cap.  The Valve Caster was one of my first builds, and it doesn’t have any power filtering and is super quiet.

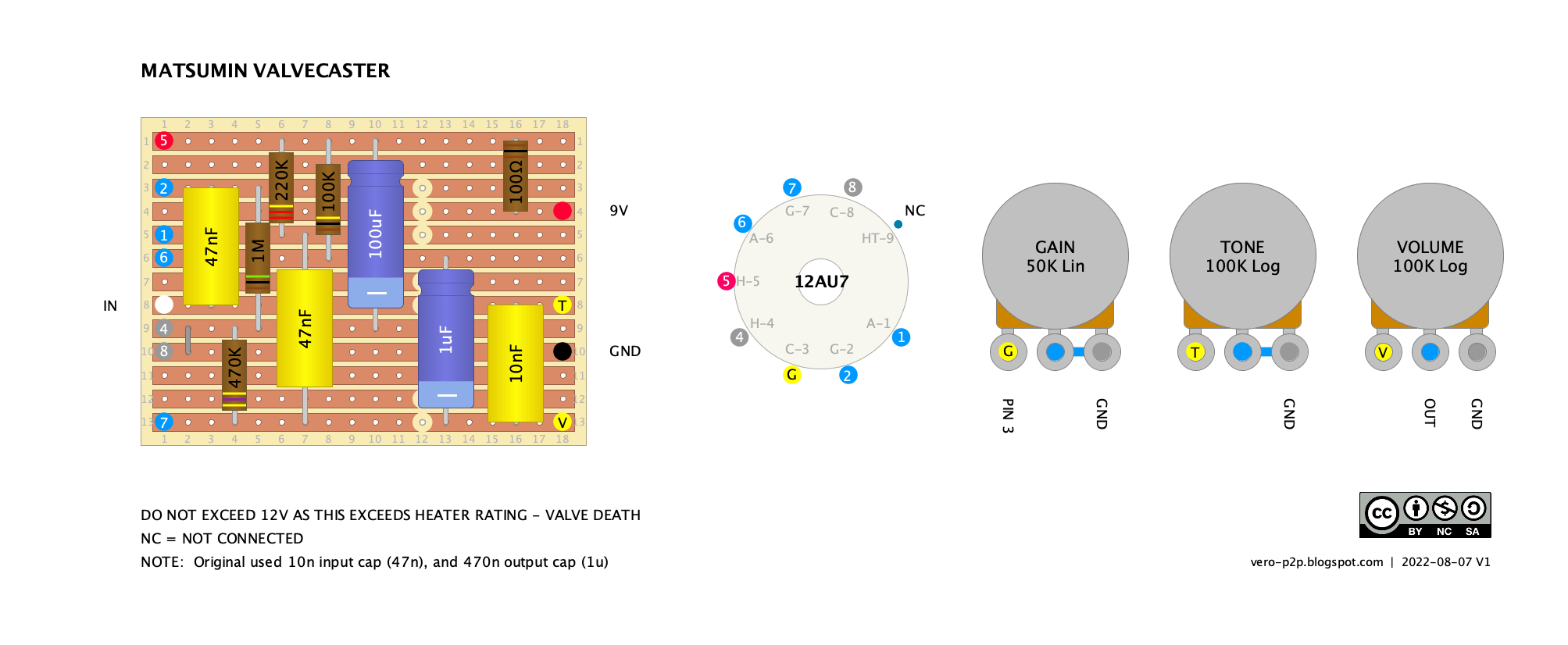

MATSUMIN VALVE CASTER – MOJO COMPONENT VERO LAYOUT

MATSUMIN VALVECASTER - GUITAR EFFECT VERO LAYOUT

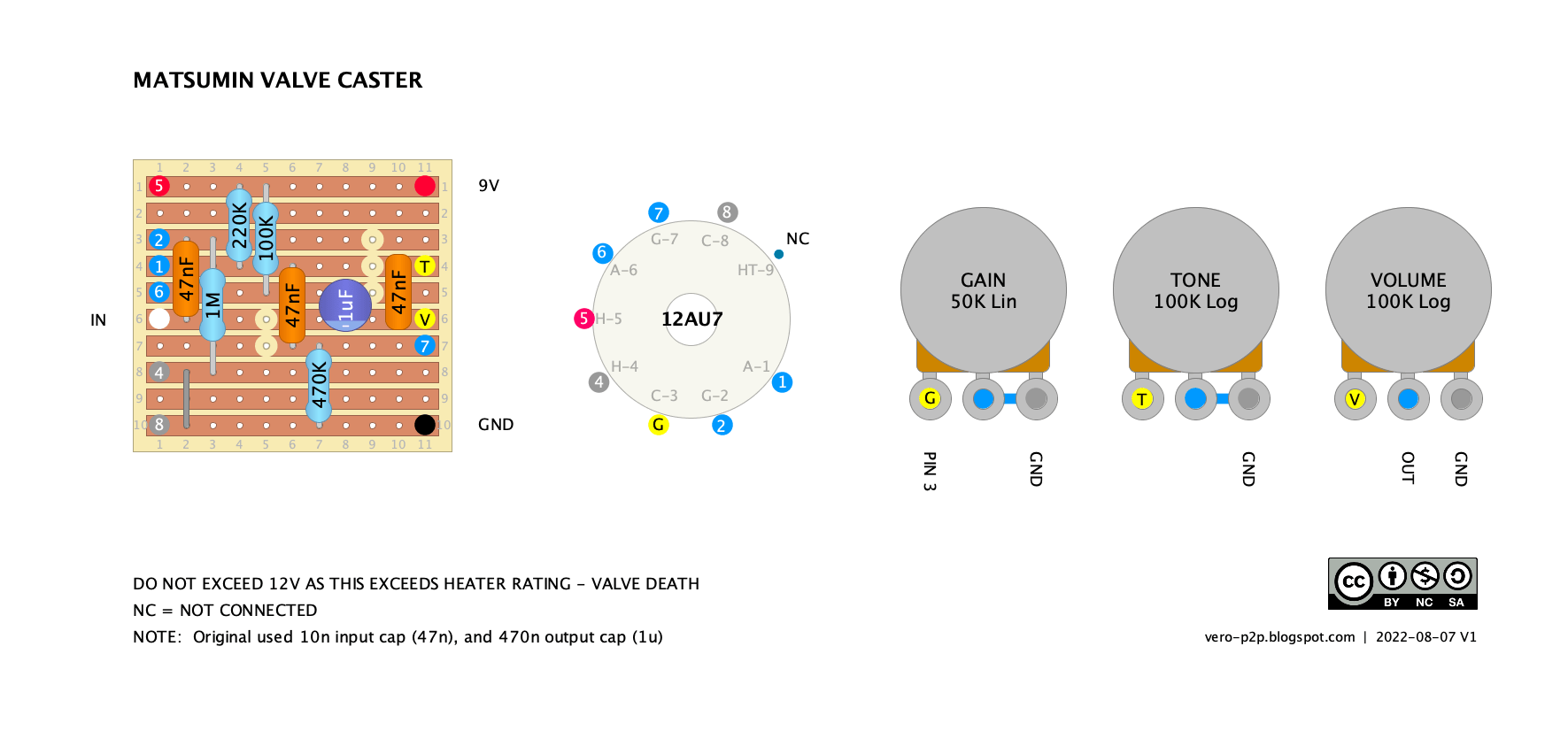

MATSUMIN VALVE CASTER – VERO LAYOUT

MATSUMIN VALVE CASTER - VERO LAYOUT
