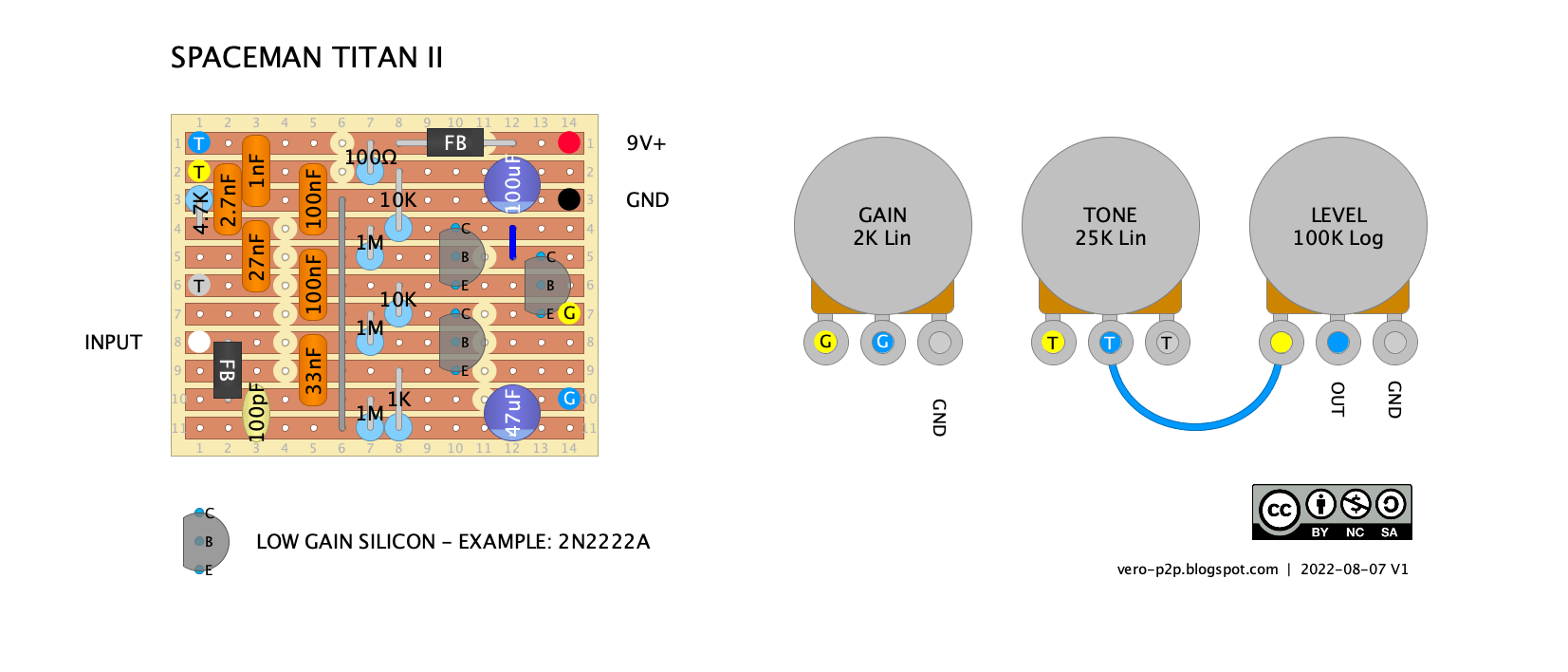

Spaceman Titan II vero layout v1 b6b3644a58db

SPACEMAN EFFECTS: Titan II Fuzz Machine

13 Jun 20267 Aug 2022 by chords

Hope you like standing resistors… chances are the ferrite beads might have to stand too.

SPACEMAN EFFECTS TITAN II FUZZ MACHINE – VERO LAYOUT

SPACEMAN EFFECTS TITAN II - GUITAR EFFECT VERO LAYOUT

Categories Uncategorized Tags Fuzz, Spaceman Effects, Vero, vero-p2p
