The Clown Centurion is a rework of a Klon Centaur by Dylan159 on FSB. Be sure to check the links below, as there’s a lot of handy information on this project. I won’t attempt to explain it, as you’re better off reading what Dylan says.
FSB thread link. Link to Dylan’s blog, which is quite cool – a lot of interesting guitar effect circuits that Dylan has developed are discussed; you should check it out. Apart from the Clown, you’ll find many other interesting original and derivative projects.

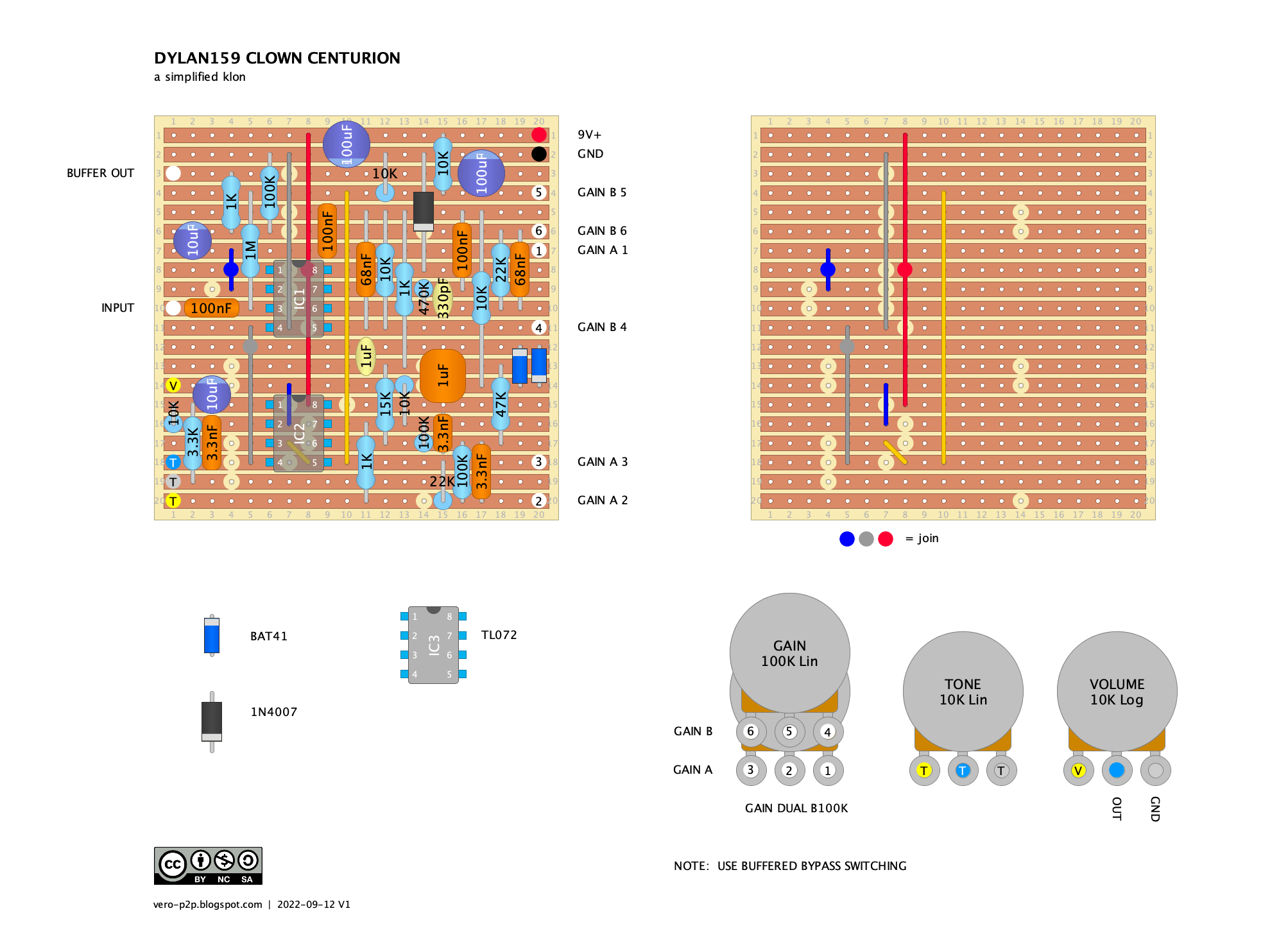

DYLAN159 CLOWN CENTURION – VERO LAYOUT

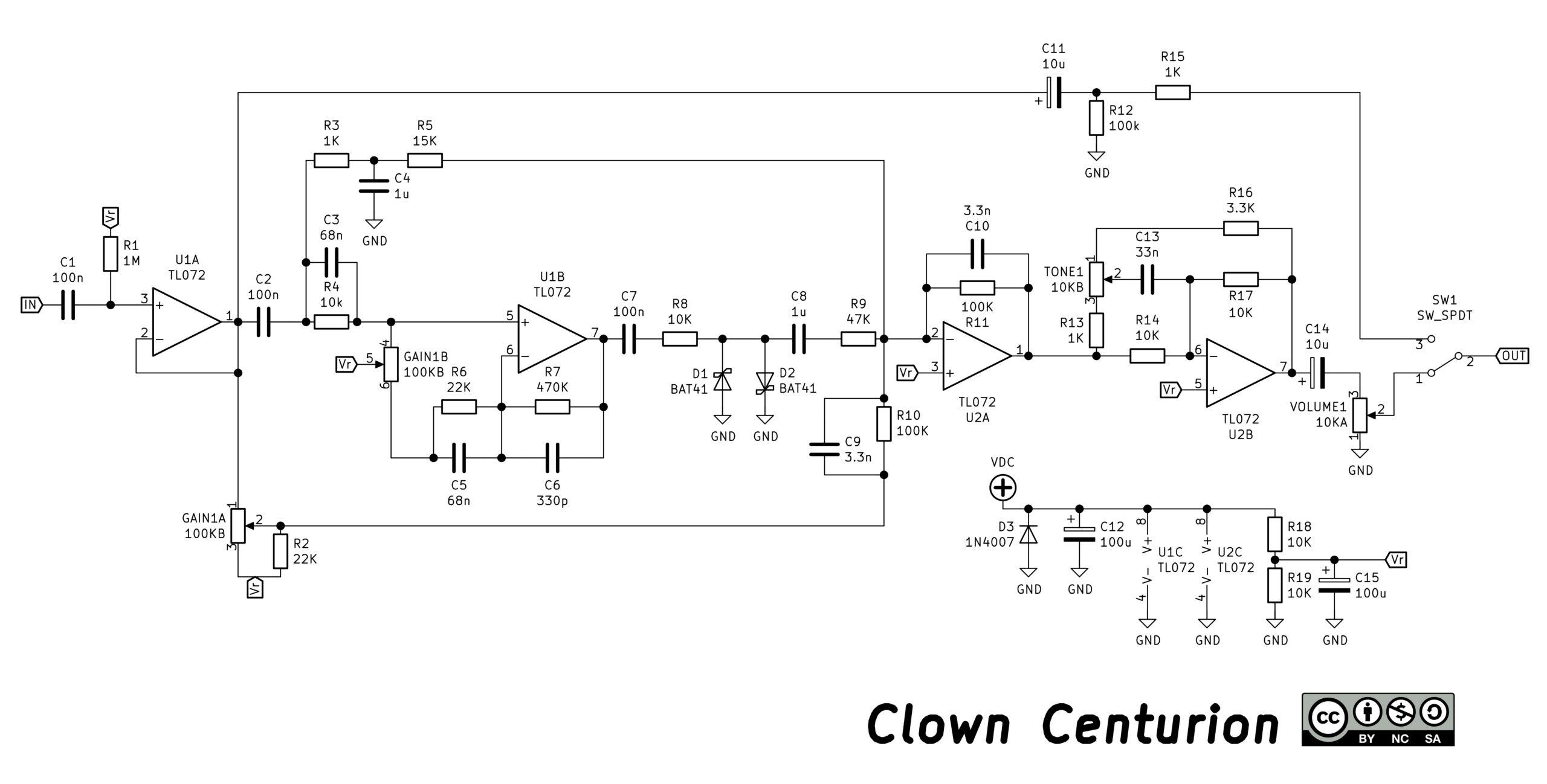

SCHEMATIC
