The Klon Centaur – no introduction required really. Arguably the most mythical of all overdrives? Likely the most expensive of all overdrives…
This layout took a lot longer than I thought it would. In the end, I also realised that I could have shaved a row off, but hey… maybe I’ll come back to it another time.
I used the schematic from Aion FX, minus the pulldown resistor on the input, as this layout does not have the input buffer switch, so it’s not really needed (be sure to use a switching scheme with grounded circuit input). There’s room on the board if you want to add it, just remember to increase the value of the other 1 meg resistor to 2meg.
The layout works, read past the first comment, and you will see the importance of buying ICs from reputable suppliers.

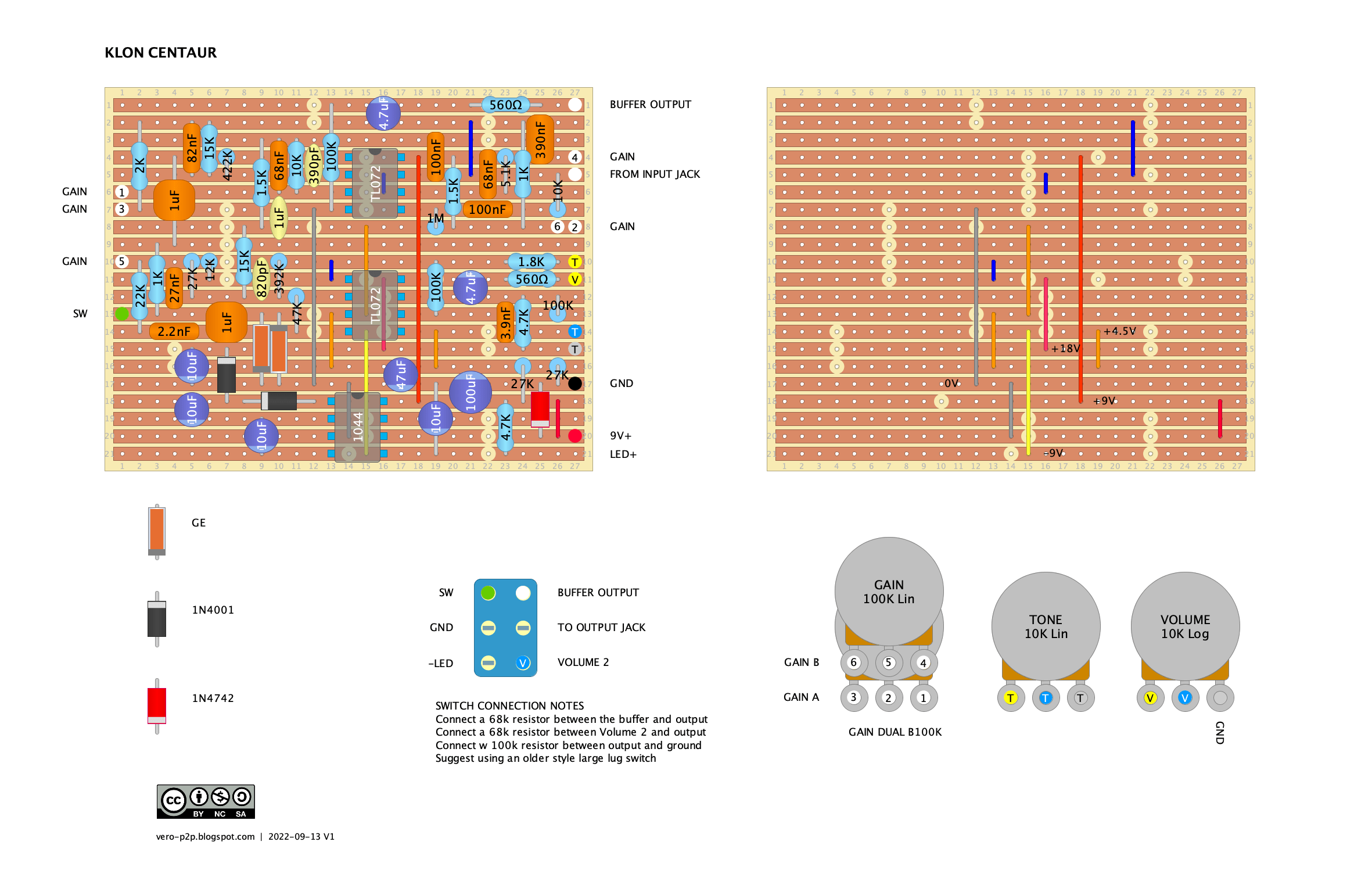

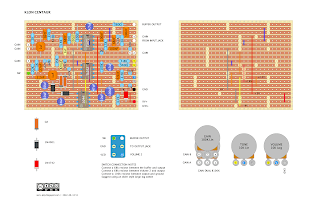

KLON CENTAUR – VERO LAYOUT
