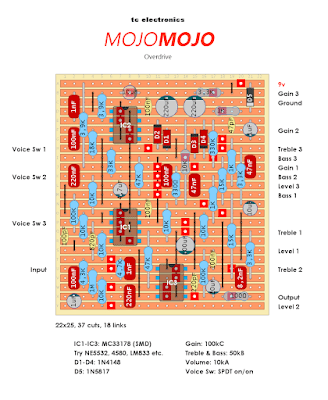

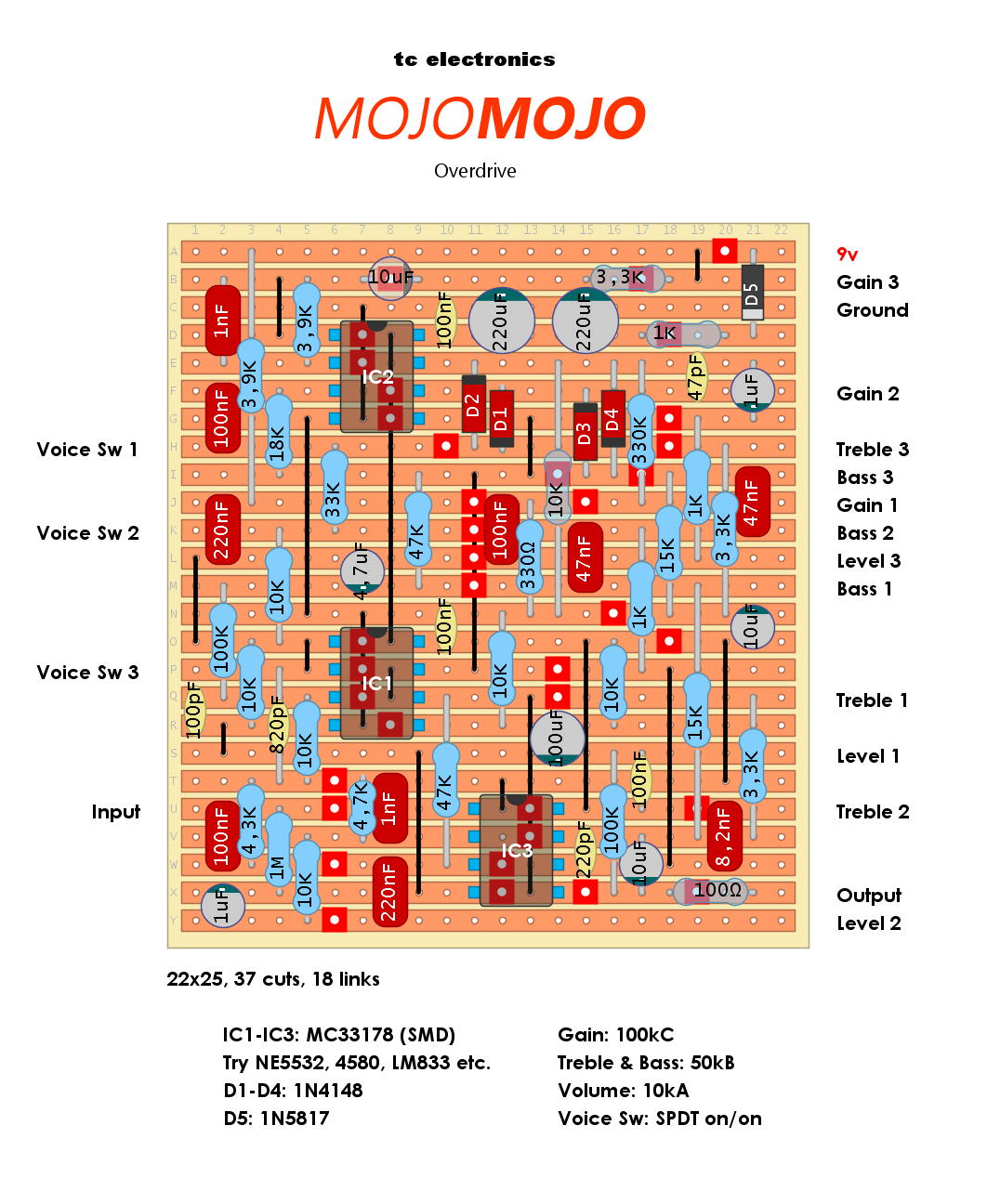

The layout stays mostly true to the schematic. One half of the op amps was unused to I used it for buffered Vref which doesn’t hurt. Quite an interesting design if a bit over engineered.:-)
TC Electronics Mojo Mojo Overdrive
