TC Electronic
TC Electronics Mojo Mojo Overdrive
Per request. The layout stays mostly true to the schematic. One half of the op amps was unused to I used it for buffered Vref which doesn’t hurt. Quite an interesting design if a bit over engineered.:-)
TC Electronic Dark Matter Distortion
Per request. A few things changed compared to the schematic; Bass ctrl outer lugs swapped, the two parallel 220uf power filter caps changed to a single 470uF (but you will get away with a 220uf or 100uf…), series protection diode added and bypass mute switching is omitted. SCHEMATIC.

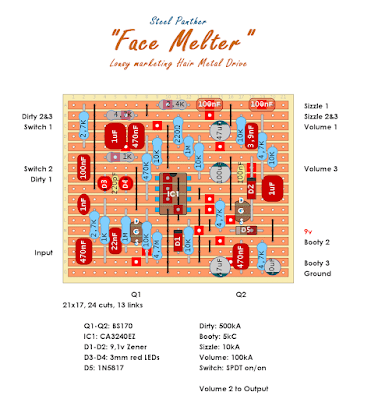

Steel Panther “Face Melter”
Update 220110. New layout from scratch. Verified and with no oscillation issues.
