Aion FX recently traced a few more Cornish pedals – and the NG-3 trace was was a real surprise package. It was thought to be a NG-2 with an external bias control. It’s nothing like the NG-2 trace by Pedal PCB – not even close.
I did have a vero layout for the NG-3 based on the NG-2 – I’ve taken them down, as they’re clearly not the same thing.

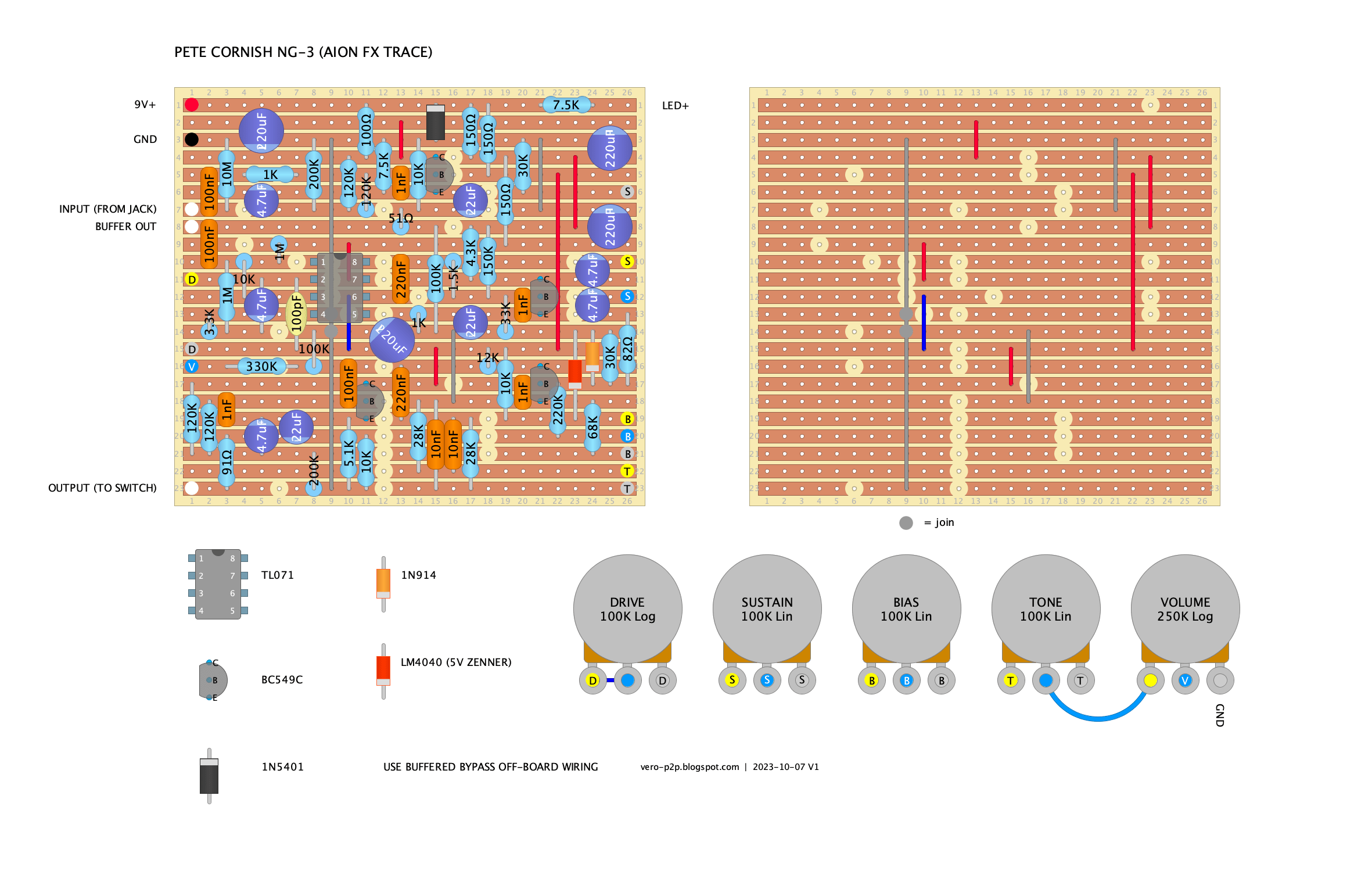

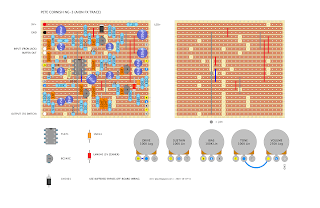

PETE CORNISH NG-3 FUZZ – VERO LAYOUT
I’ve not built this one yet, but I have checked over it a few times. So if your feeling brave, let me know how it works out. I’ll definitely be building this at some stage.
Ignore the text explanations in the video – they’ve used the marketing spiel, which are said to be not based in reality.
