Way Huge Saucy Box eb4872c9e805

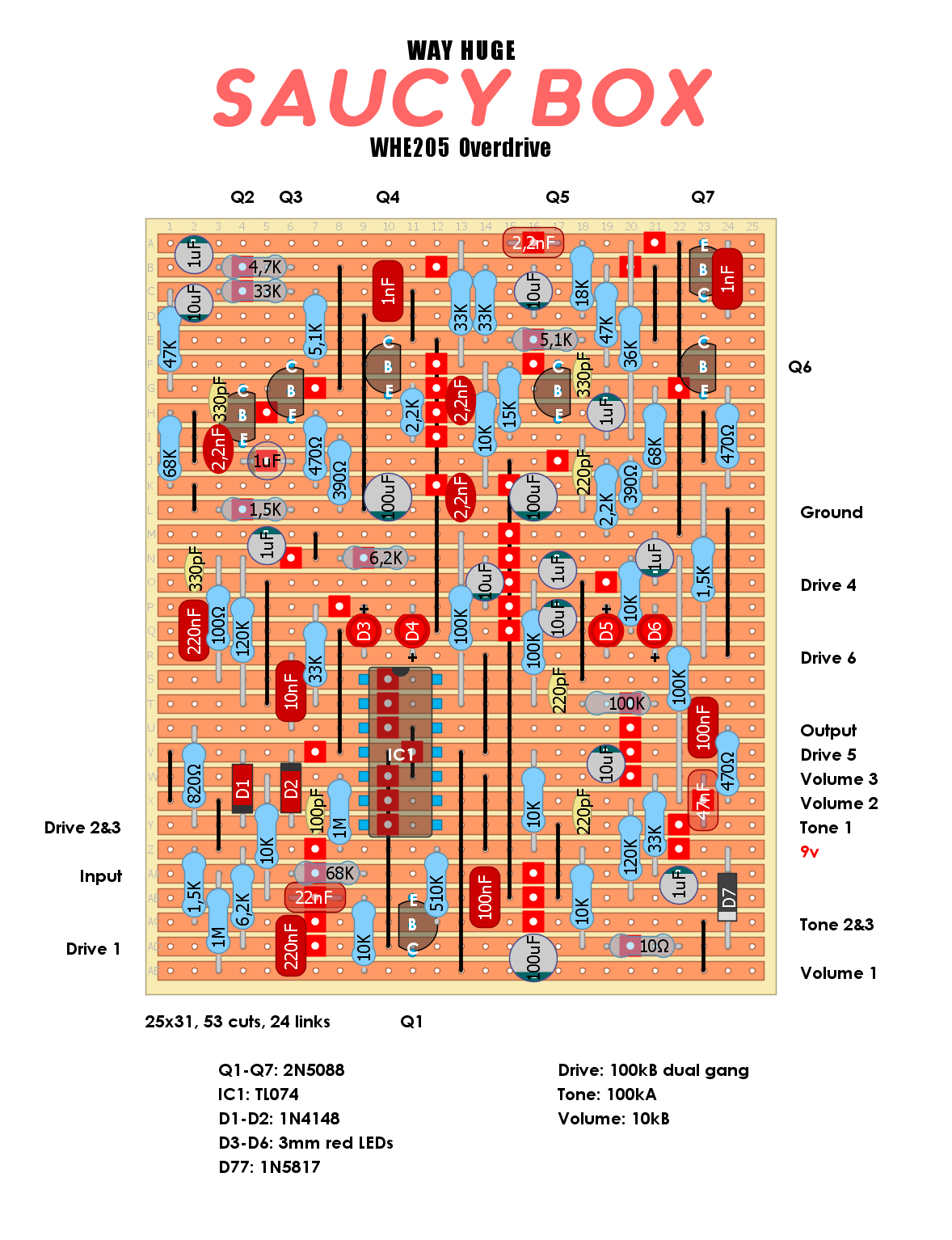

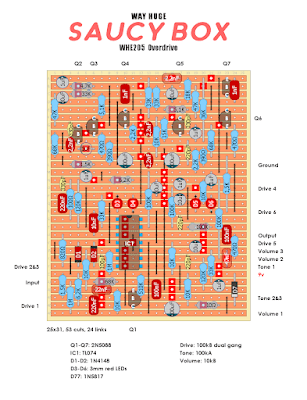

Way Huge WHE205 Saucy Box Overdrive

4 Jun 202626 Jan 2024 by chords

Schematic is avaiable HERE.

Verified by Silva!

Categories Uncategorized Tags dirtboxlayouts, Overdrive, Verified, Way Huge
