Happy New Year, everybody! This one recently got traced over on FSB. The 25th Anniversary edition of the Red Llama has an added hi cut tone control, but also has a few variations from the original circuit. The hi cut itself is just a basic cap/pot to ground tone control, the minimum gain resistor on … Read more
There hasn’t been a Big muff in a while…. Layout of Way Huge Swollen Pickle Mk. 1 with pads for transistors instead of the the transistor array of the original. There is also a switch that has toggles betwen the stock 47nf low pass filter cap in the tonestack which gives a very mid scopped … Read more

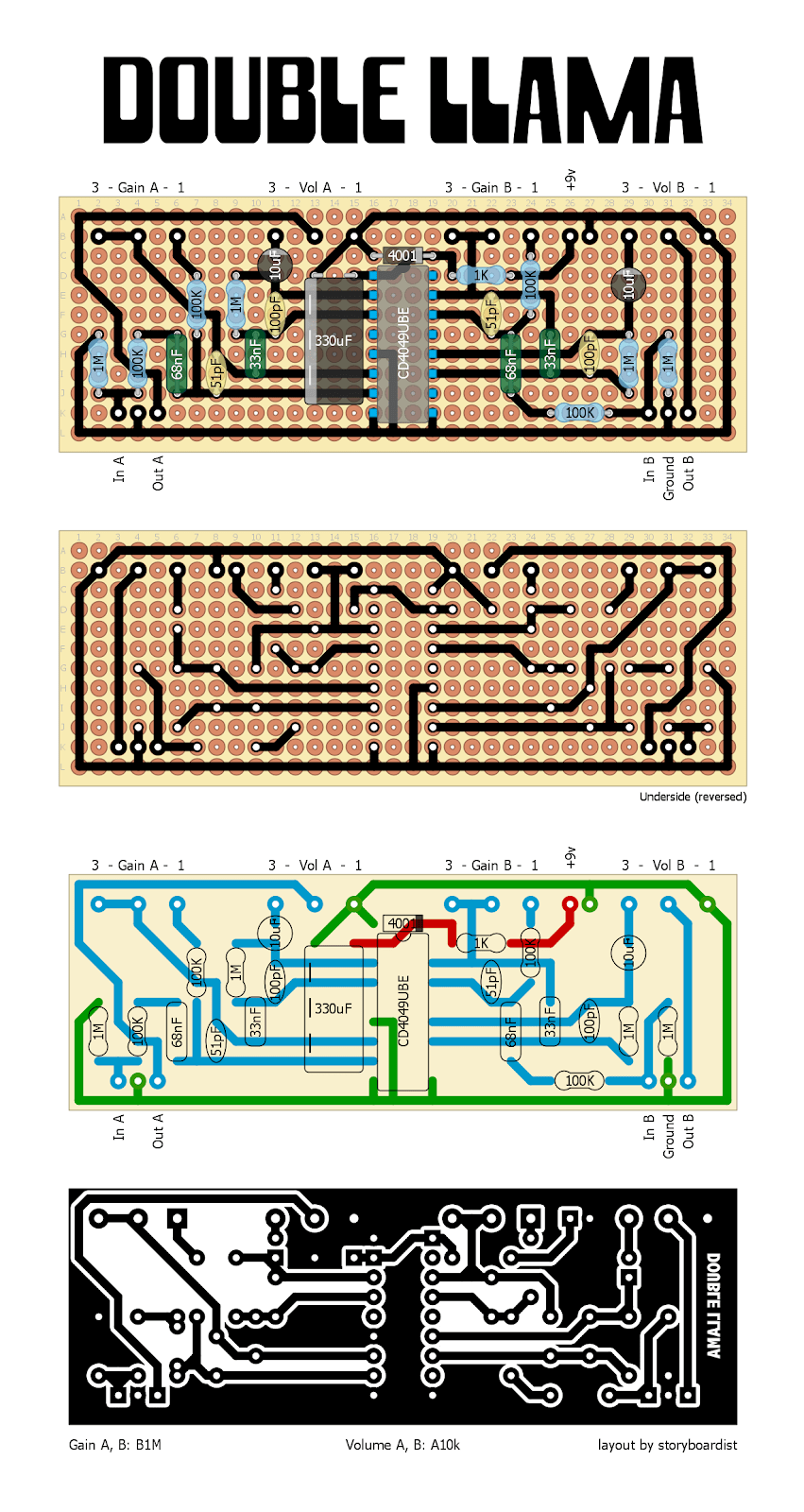

Had a request for 2 Red Llamas on a single board, and my initial reaction was, “Just build two,” but since there are 4 unused hex inverters that could easily be used for a second Llama, my reaction changed to, “Why not?” lol Designed to fit in a 1590BB, but might fit vertically and sideways … Read more
Happy Fuzz Friday, everyone! Last fuzz of 2019. Here’s an interesting fuzz circuit from Way Huge based on the Tone Bender Mk. III. It uses PNP silicon transistors, but is a negative ground effect. Schematic available here.
