Aion Traynor TS 50 Pre Amp abe0c97297e3

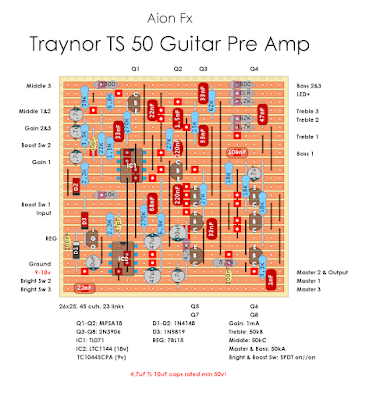

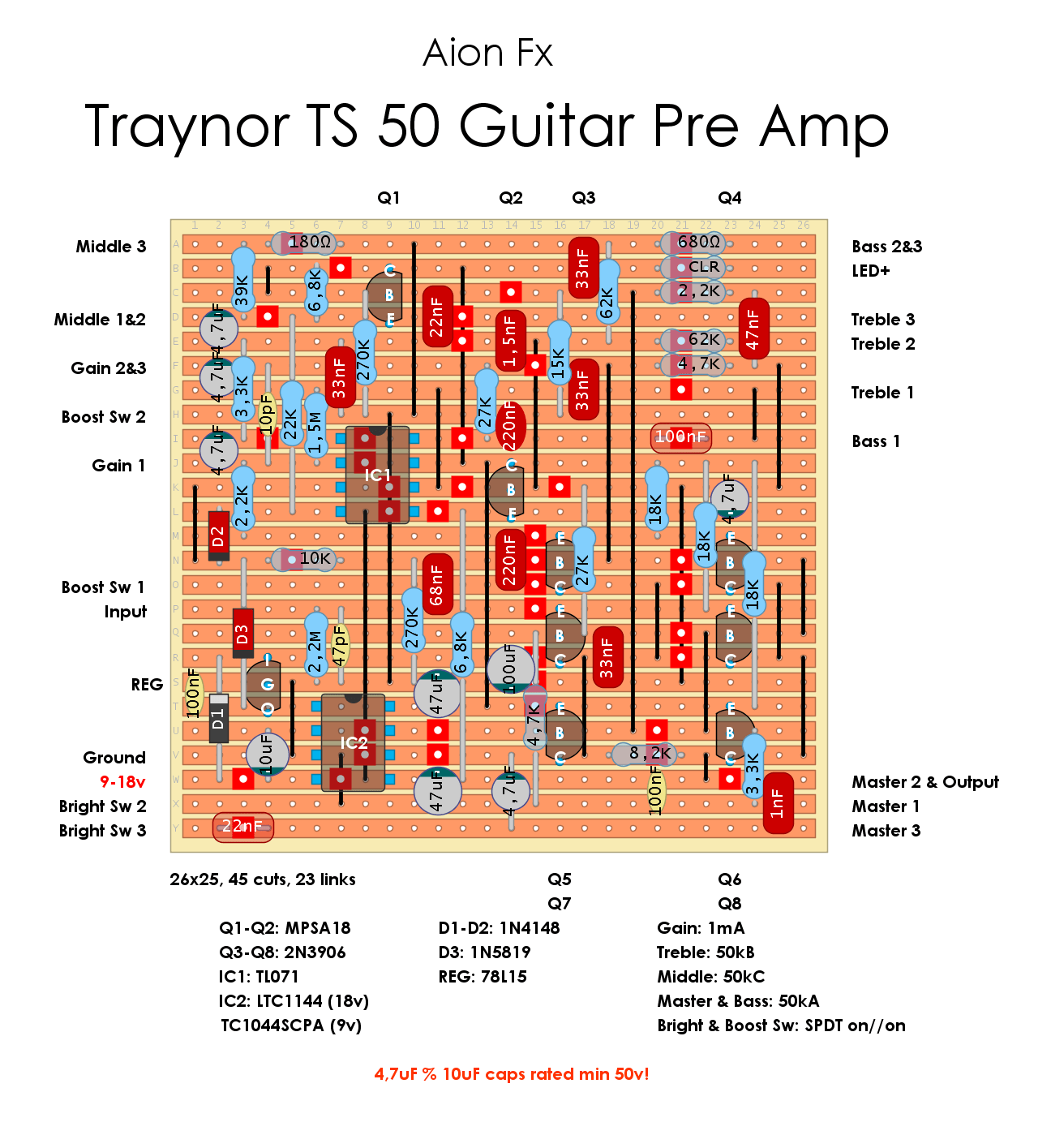

Aion Fx Traynor TS-50 Guitar Preamp – ON HOLD

13 Jun 20264 Aug 2024 by chords

Schematic is avaiable HERE.

Categories Uncategorized Tags Aion, dirtboxlayouts, On Hold, Overdrive, Pre-amp, Traynor, Unverified
