Aion Fx Traynor TS-50B Bass Preamp – ON HOLD
Schematic is avaiable HERE. Chris Stelloh managed to squeeze in the power module mentioned in the Aion build docs. Hopefully it will solve the issues with power and noise.
On Hold
Lastgasp Art Laboratories 88 / Super Oscillo Fuzz
Modified for 3PDT bypass switching. Correct schematic avaiable at Deadend Fx
Fuzzhugger Fx Algal Bloom V2 w. blend
Update 201013. Now tagged “On Hold” since there is possible bugs in the schematic.

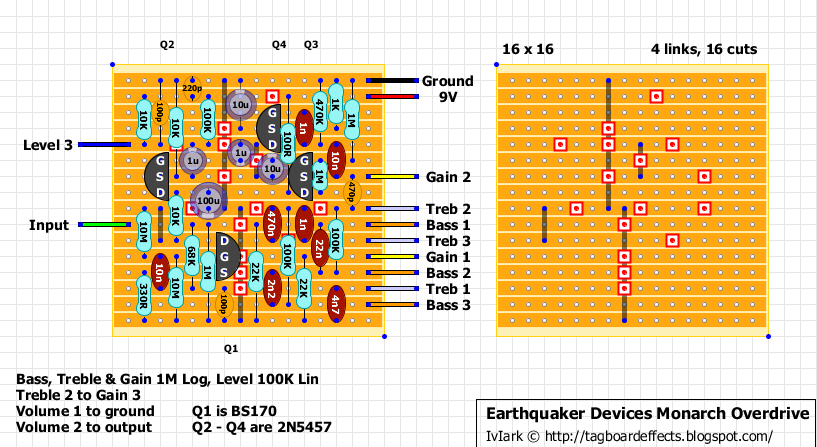

Earthquaker Devices Monarch Overdrive
30th October 2014 – Put on hold pending investigation :o) Info about the original: The Earthquaker Devices Monarch Overdrive is an FET, all discrete dirt machine that will get you some truly vintage and organic overdrive. The Monarch Overdrive is based on a certain UK hard rock amp’s input stage that shares the same color … Read more
Maestro MPS-2 Mini Phase – ON HOLD
Not the most compact layout (as expected with most phasers) but should fit comfortably in a 125B mounted sideways, and maybe even a 1590B if someone has the patience. One thing I will say is that until this is verified I wouldn’t recommend it being built by anyone who may not be prepared to do … Read more
Opamp 3 channel splitter/mixer ON HOLD
Updated 6th February 2014 I have a TC Electronic G-Force and Eventide Eclipse in the parallel effects loop of my amp and use a rack mixer to keep them in parallel with each other, and so allow me to use them both 100% wet and so avoid having to digitize my dry signal. I do … Read more

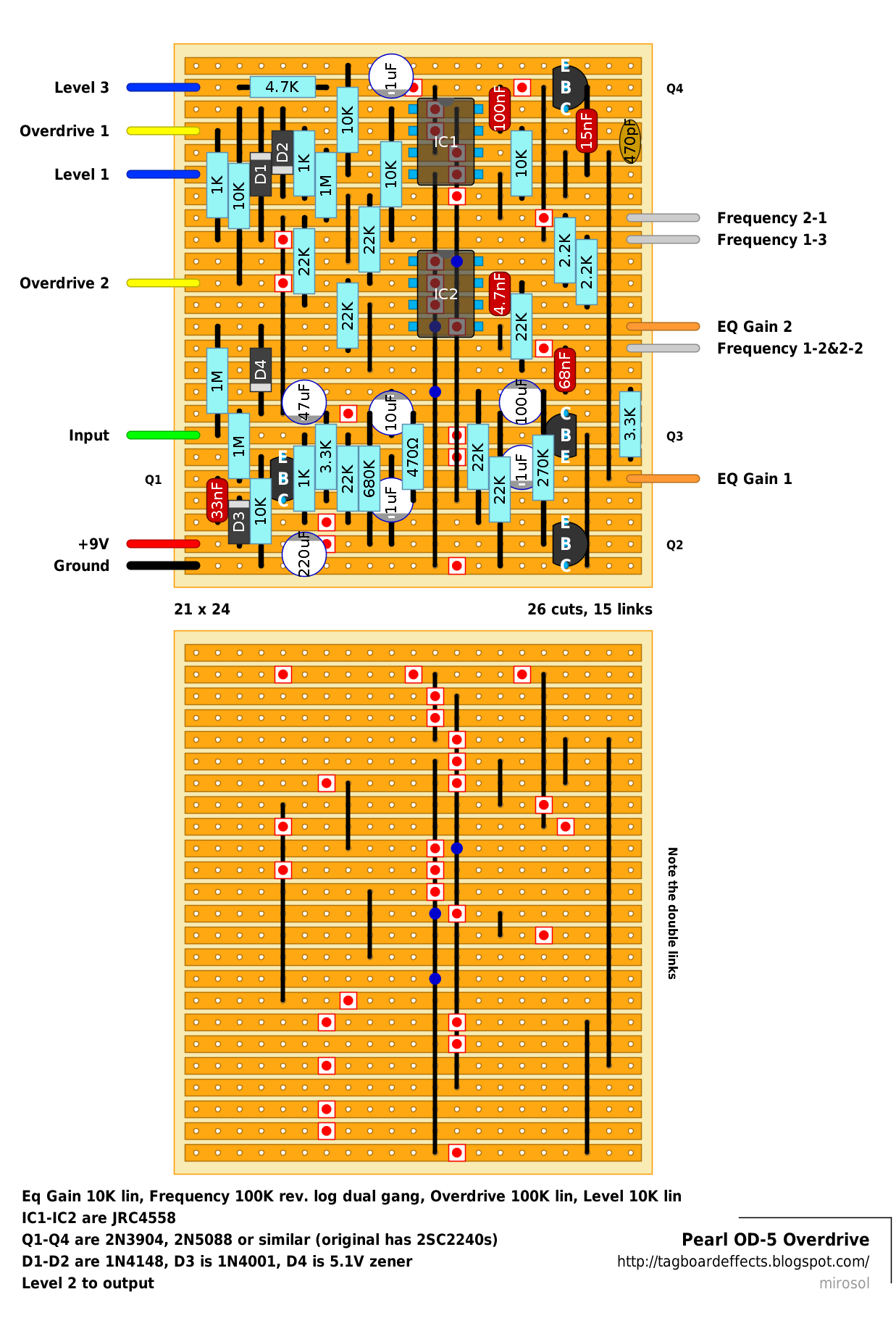

Pearl OD-5 Overdrive
Do not start building this one yet as it contains errors. Norwichbadger’s amazing footwork on the comments will tell you how to fix yours, if you’ve built it already. I’ll be fixing the layout or redrawing it at some point… —- Olav’s relentless requesting took a few things before i got it done. First, he … Read more
