Death by Audio Total Sonic Annihilation 2 bebf09e9d511

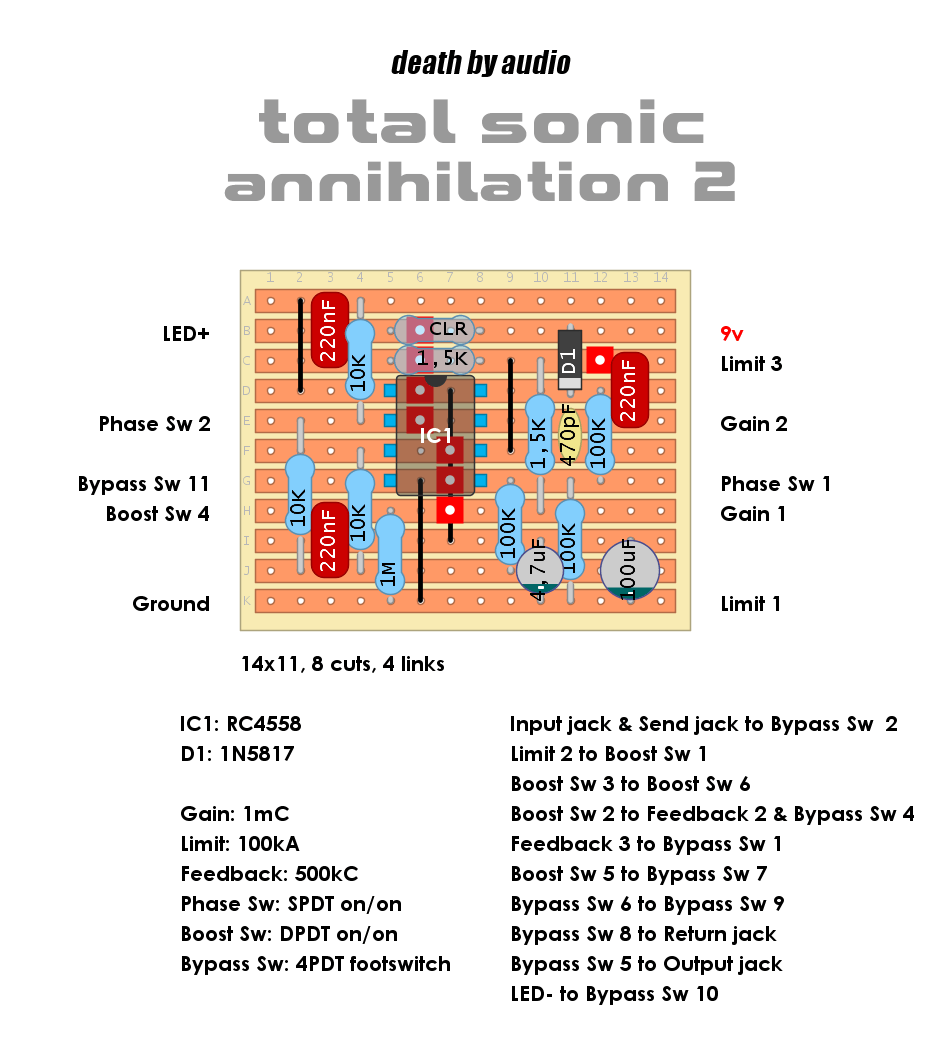

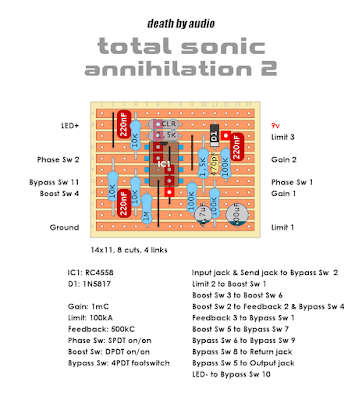

Death by Audio Total Sonic Annihilation 2

13 Jun 202630 Sep 2024 by chords

Schematic is avaiable HERE.

Categories Uncategorized Tags Death By Audio, dirtboxlayouts, Feedback Looper, Noise, Unverified
