FAIRFIELD CIRCUITRY: ~900 Fuzz

I know right – a regular vero layout for a change.  While it’s called a fuzz, it has quite a bit of range.  Clean(ish) to an overloaded squishy fuzz   Schematic is here

FAIRFIELD CIRCUITRY ~900 FUZZ

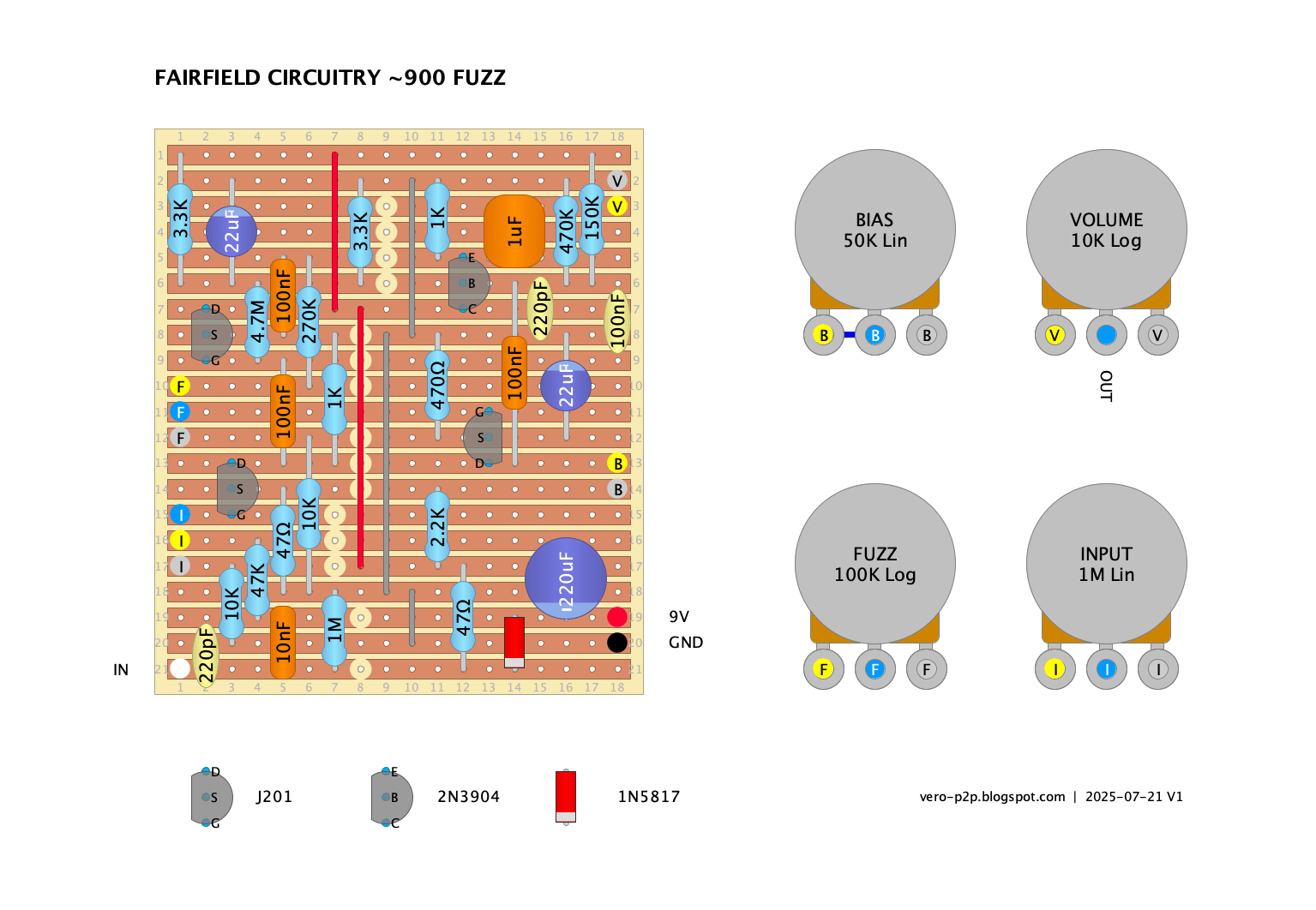

FAIRFIELD CIRCUITRY ~900 FUZZ vero layout

Just be sure to use J201 from a reputable source, and always check the pinout.  Do not buy your J201s from China – while a lot of great things come out of China, counterfiet JFETS are not one of them.
