I know right – a regular vero layout for a change. While it’s called a fuzz, it has quite a bit of range. Clean(ish) to an overloaded squishy fuzz Schematic is here FAIRFIELD CIRCUITRY ~900 FUZZ Just be sure to use J201 from a reputable source, and always check the pinout. Do not buy your … Read more
Per request.A quite a big revision of this circuit was made a couple of years ago making it a worthwhile addition to the blog. The general topology remains almost the same but lots of component values have been updated. Trimpots is added for easier biasing. Schematic is avaiable HERE.
I saw a Gray Bench Electronics tear-down of the Fairfield Barbershop V1 pop-up in my YouTube feed today and thought I’d go back and look at the layout I did a couple of years ago. Turns out I never posted it – I had only posted my take on the Millennium edition. So here it is, albeit slightly smaller … Read more
The Fairfield Circuitry Barbershop is one of my favourite overdrives, although I am yet to try this version. There’s some subtle difference to version one, and it has a tone control, similar to the Millennium version. I think the most significant difference is the change to the output buffer. FAIRFIELD CIRCUITRY BARBERSHOP VERSION 2 – VERO LAYOUT TEARDOWN & SCHEMATIC … Read more
Per request. Note that the values for the treble cut capacitors is nor confirmed (10nF and 22nF) so it might be worth socketing these values. Also, I replaced the Drain resistors with trimpots for easier biasing for the J FETs.
I just realised I had not uploaded a vero layout for my all-time favourite JFET-based guitar effects. The Barbershop from Fairfield Circuitry. This is a workalike for the Millennium; if you want to make the standard Barbershop, remove the switch and the two capacitors attached. The caps for the tone switch can be anything you prefer. … Read more
The Fairfield Circuitry Unpleasant Surprise – bias voltages unknown for the JFETS (so you may need to tweak them). I had to tweak a bit for the Barbershop before it was right, maybe the same here. Mind you, this is a bit of signal-destroying fuzz monster, so it may not matter as much. I have checked … Read more

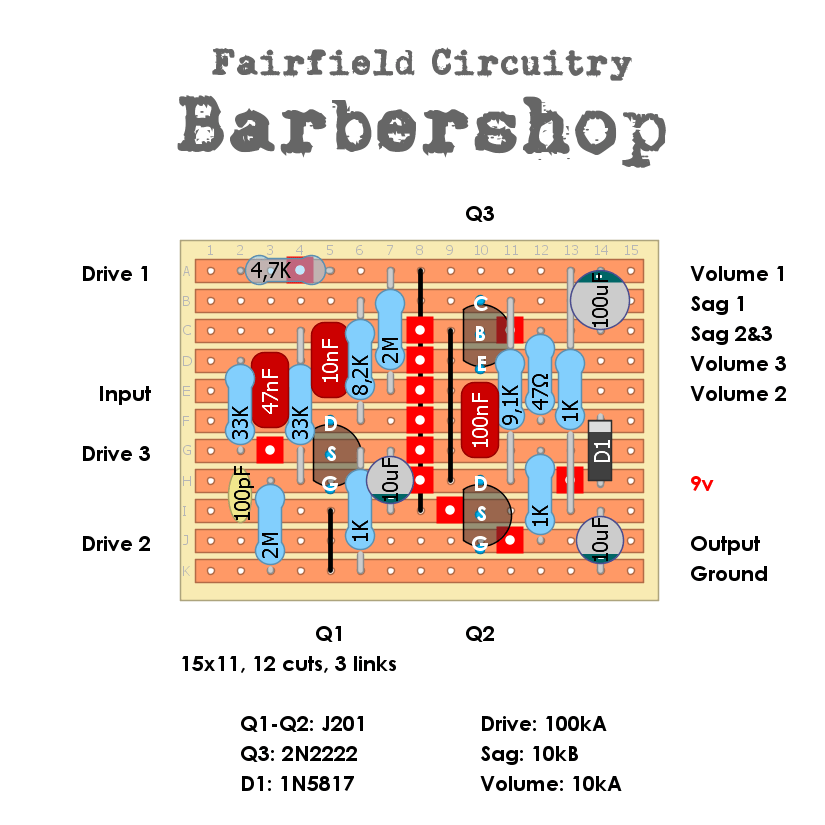

My all time favourite JFET overdrive, the Fairfield Circuitry Barbershop. The Fairfield Barbershop has a really wide range of useful tones. From clean right through to heavy drive bordering on fuzz. Nice easy build too, as it’s not complicated. I also included a layout for what I imagine is the Barbershop Millenium edition (the one … Read more
