Another great contribution by Chris Stelloh!

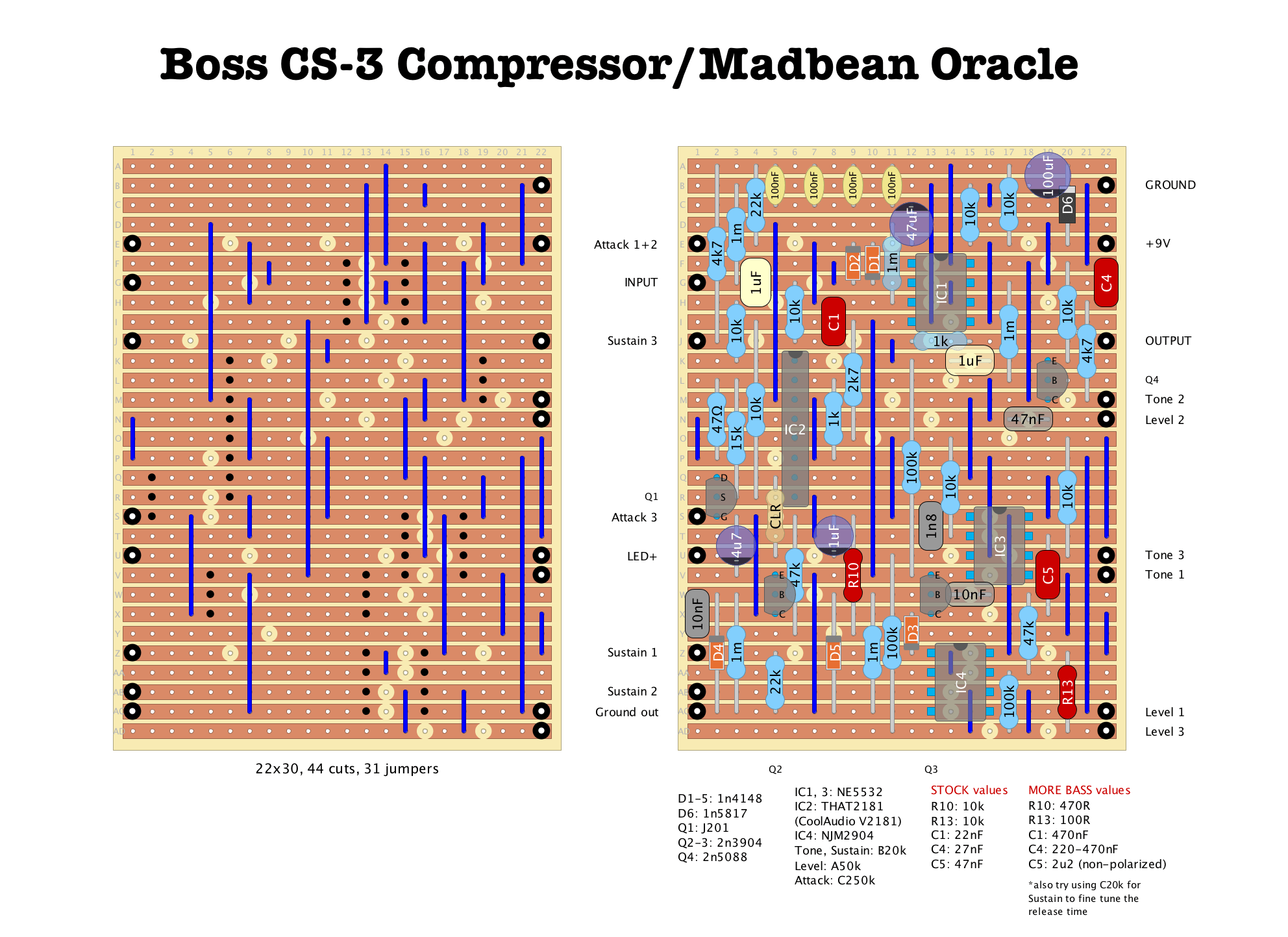

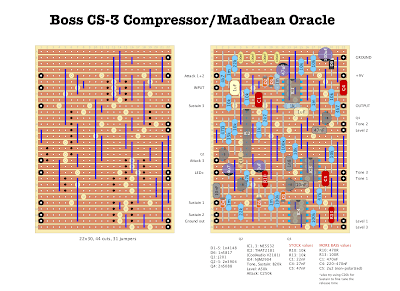

This is a layout drawn from the Madbean Oracle project, which is,
essentially the Boss CS-3 compression sustainer. I really like the sound
of VCA-driven compressors, especially on sampled drum sounds. This Boss
pedal has been around for about 40 years, and the Madbean version makes
a few slight modifications to it based on stuff people have done
attempting to improve the sound quality and lower the noise. I included a
list of part values that are most commonly swapped to make this more
bass guitar friendly.
This one is verified and good to go.
