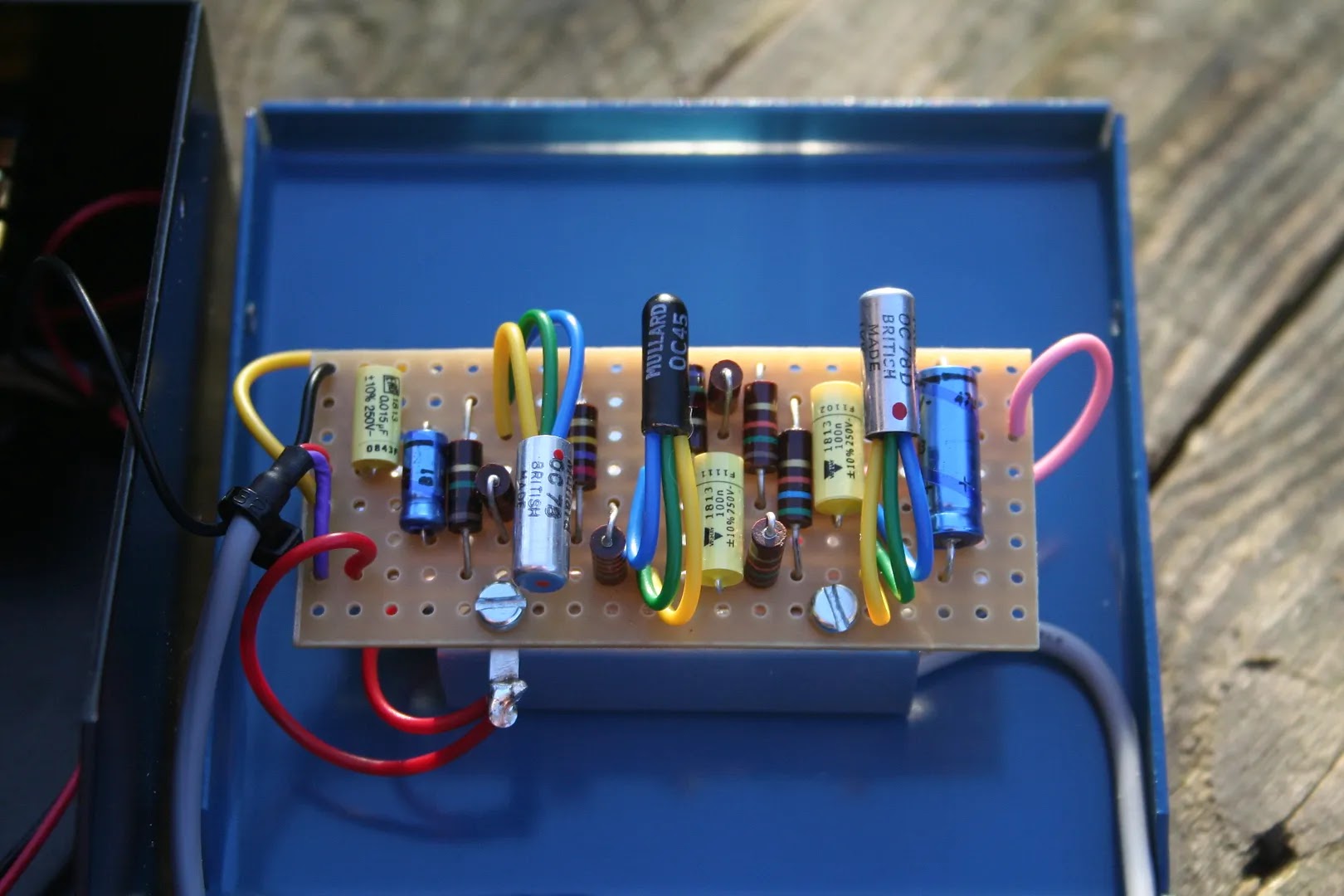

So this looks like one of the D*A*M one-offs from back in the day – a MKI style fuzz, using a variation on a Zonk layout. There are some departures from stock values, some of which are not entirely clear.
Here’s the thread from an old FSB post. Here’s the thread on the D*A*M forum.

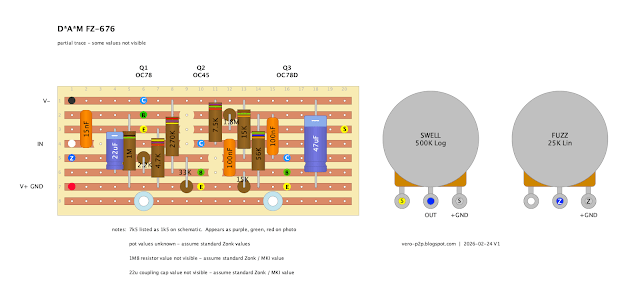

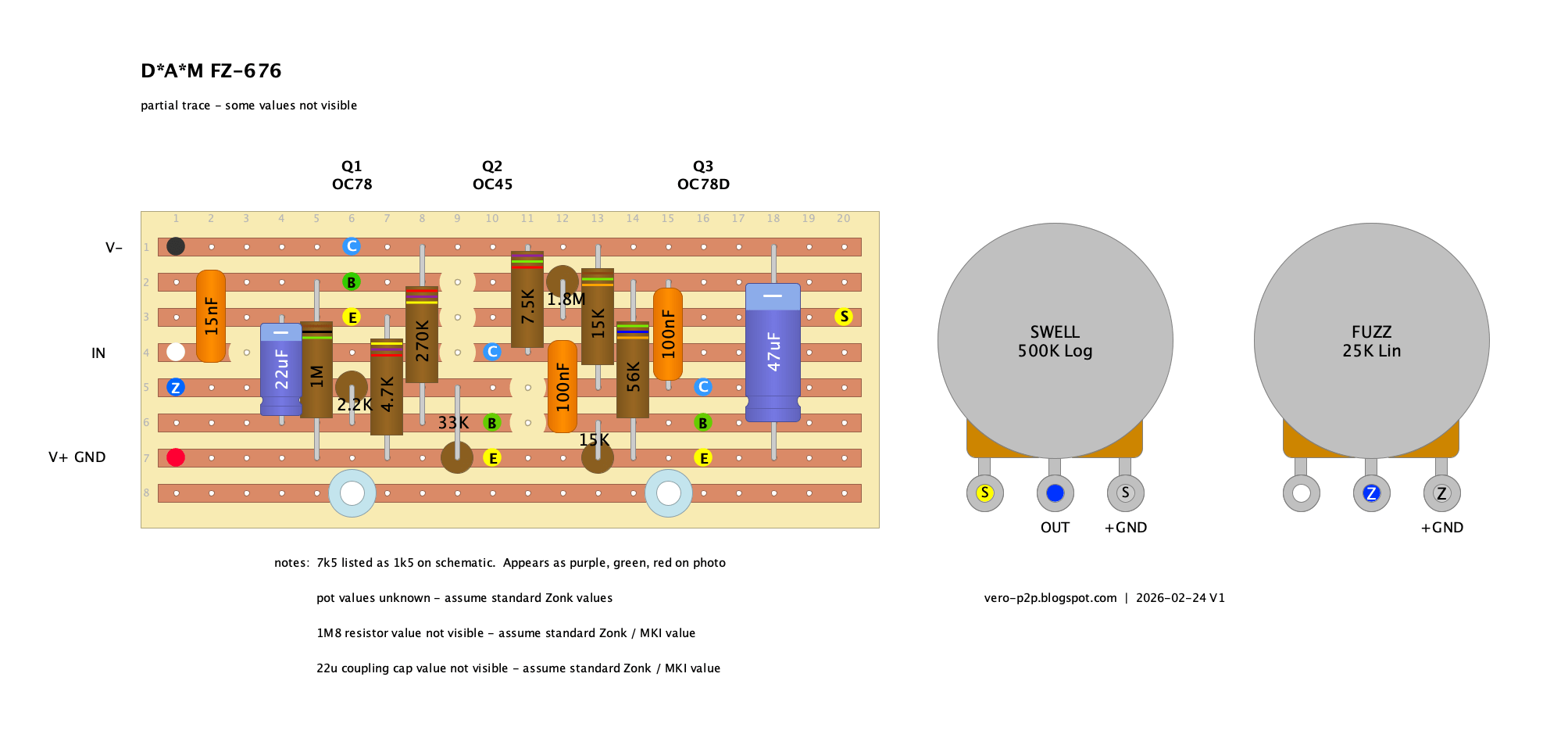

D*A*M FZ-676 VERO LAYOUT
There are a few components that are not visible, but if you have any build experience, you can make some reasonable assumptions. Pop it on a breadboard… I know that’s what I’m about to do.

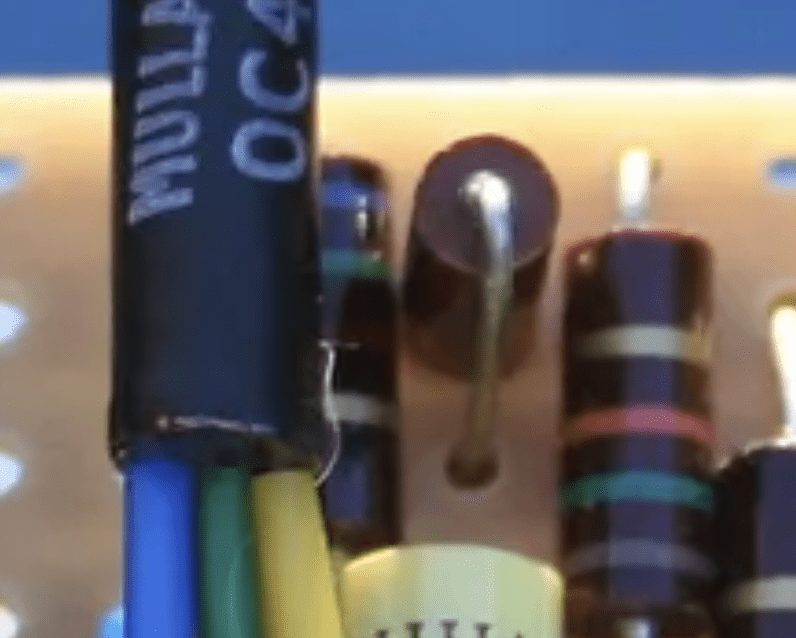

One thing that throws me is this – the resistor next to the OC45 (the Q2 collector), is it brown green red gold, (1k5) or purple green red gold (7k5)? I think 7k5, the schematic on FSB says 1k5.
On the breadboard, 7k5 works just fine, so I’ll stick with what I see and hear. Can’t always trust what you find online, including here 😉
