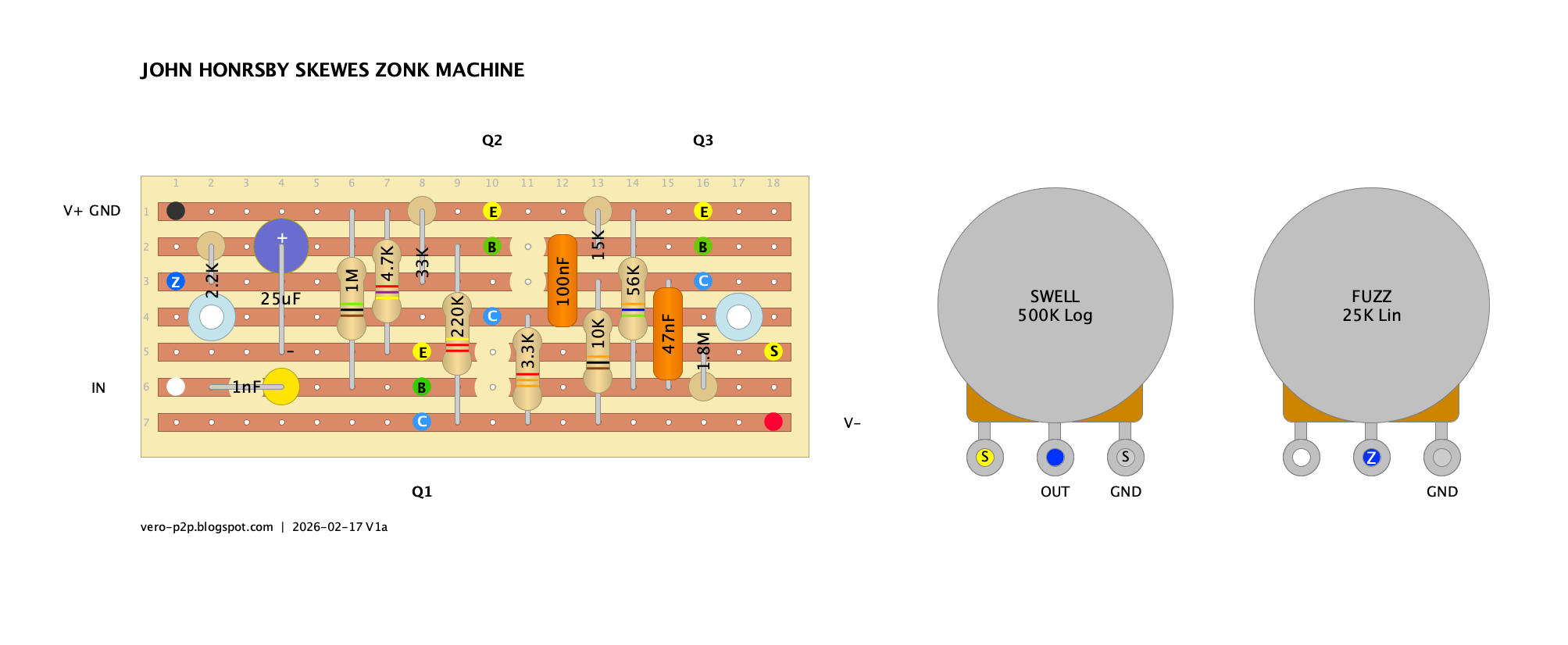

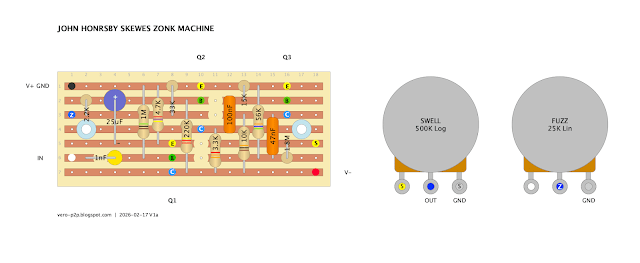

Quick Zonk Machine layout to suit an enclosure that I just picked up from MW Pedal Parts – pretty much one row difference in terms of where the mounting holes are drilled compared to old layout that I have been using, and I decided to move a couple of components around while I was at it.
MW are great by the way – no hesitation in recommending them based on my experience. The ordering process is a little unusual, but they deliver on the goods.
ZONK MACHINE
Link to Zonk schematic and component values table or a MKI as the layout can be used for that too.
and here’s a link to the original tag board layout if that’s more your thing.
