Screenshot 2026 02 07 at 7.21.51 am c3097679c3fe

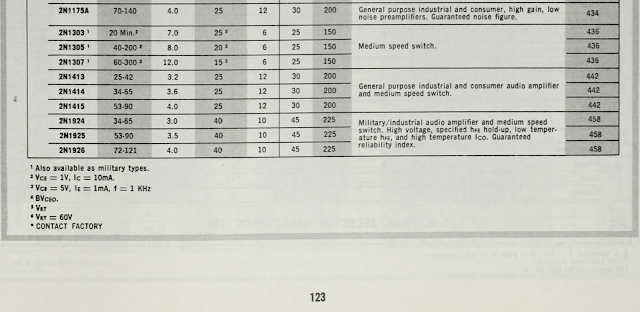

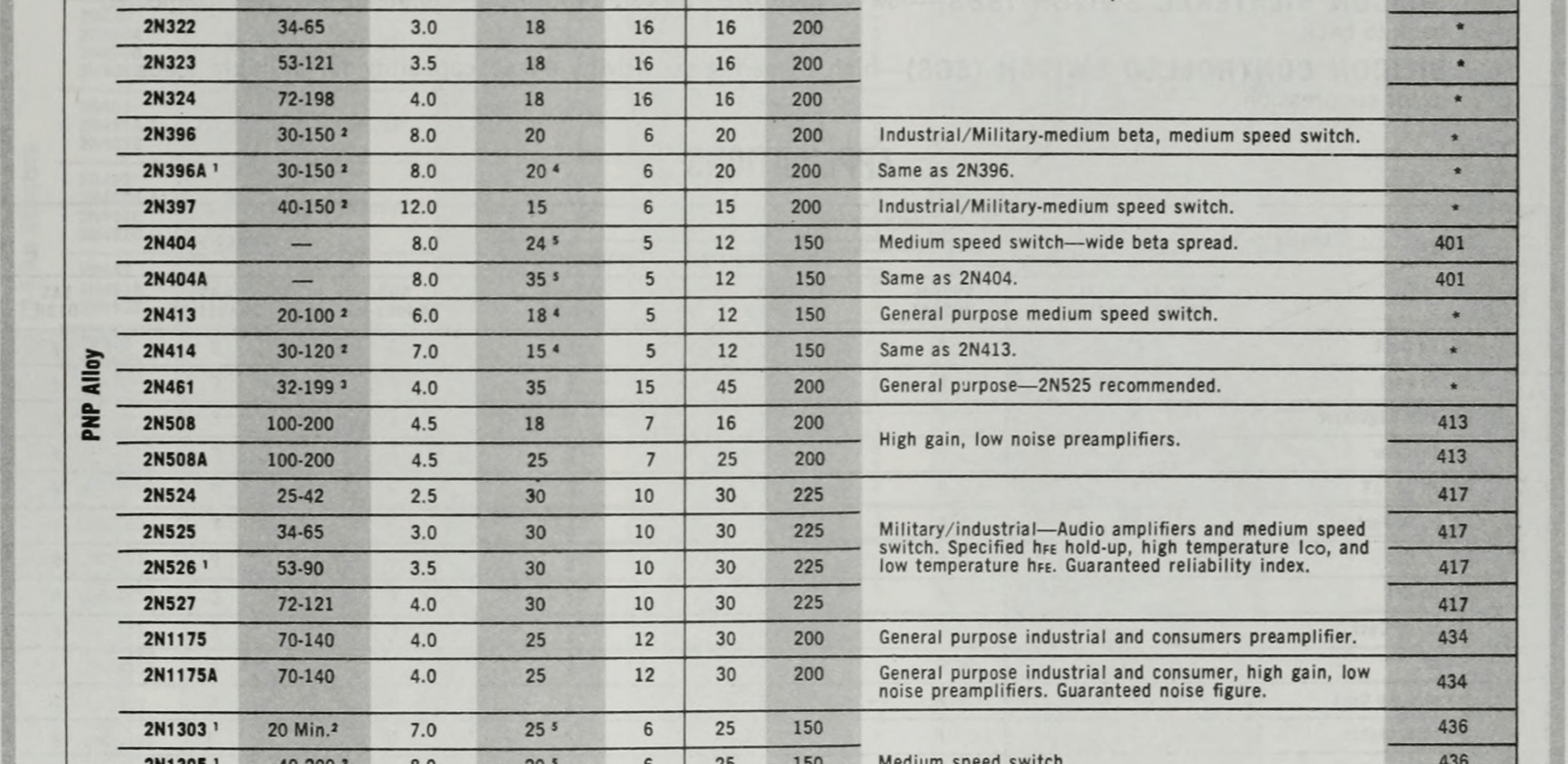

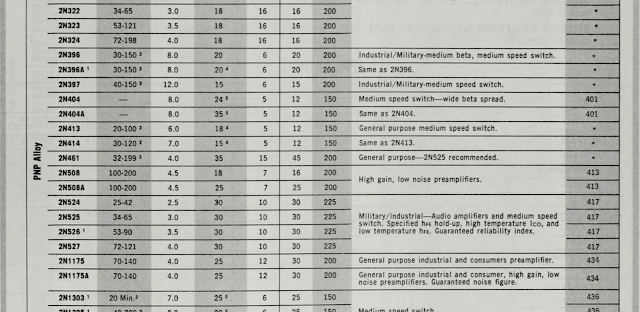

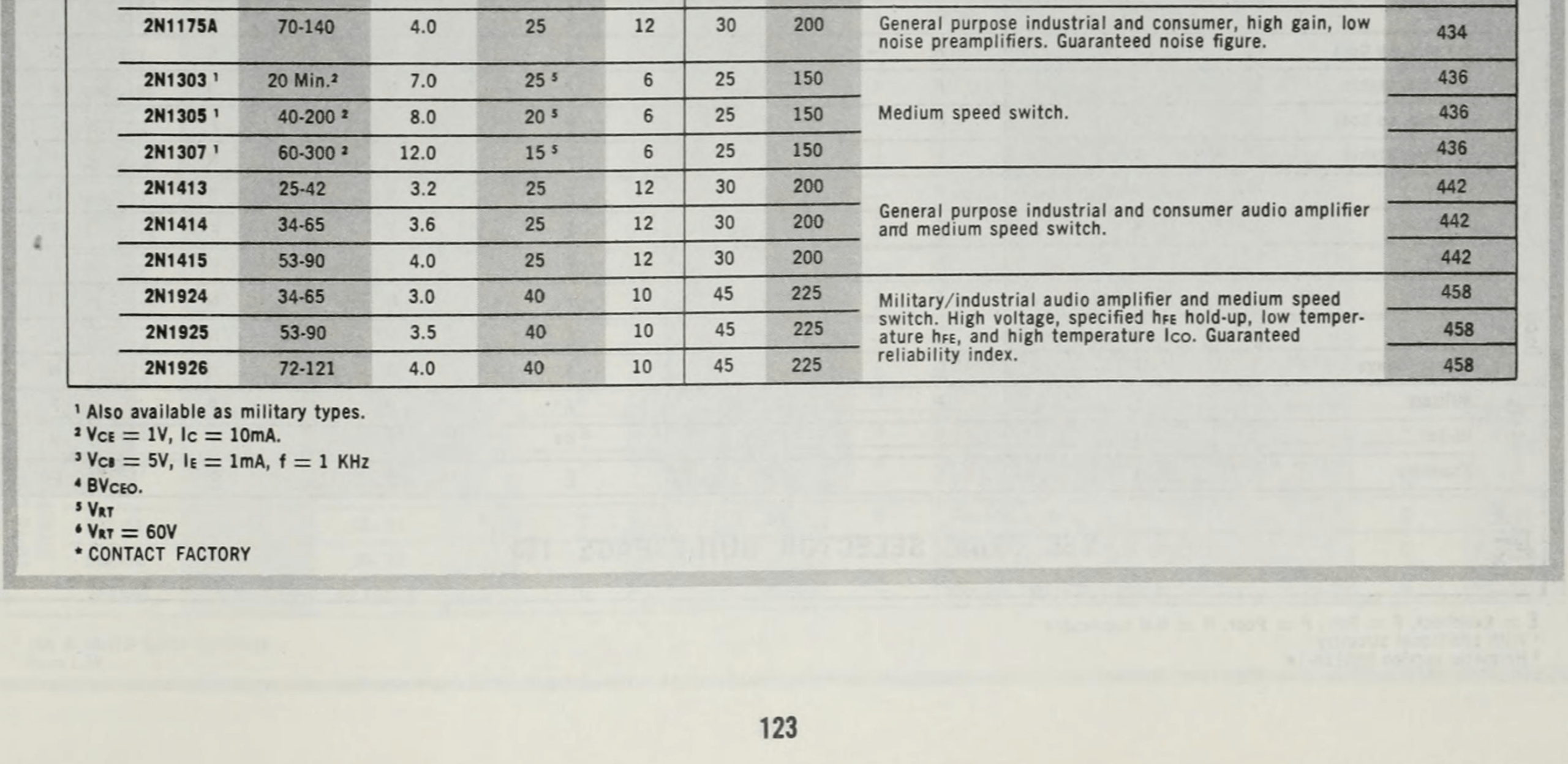

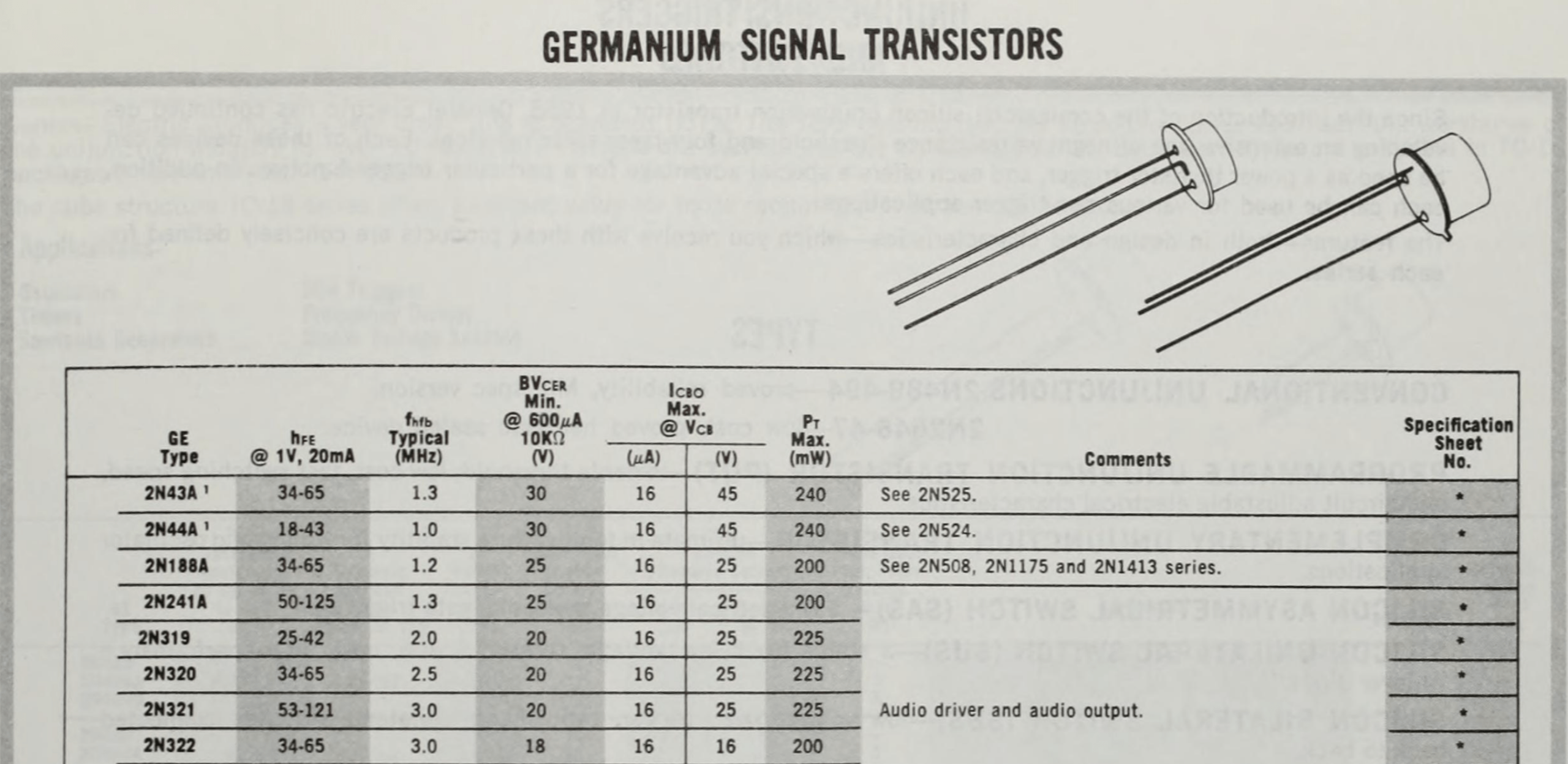

GEC: Germanium Signal Transistors (1971 Semicondcutor Handbook)

13 Jun 20267 Feb 2026 by chords

From the General Electric semiconductor handbook, 1971

Categories Uncategorized Tags REFERENCE, TRANSISTORS, vero-p2p

BE: Fuzz Buffer

DOD / MXR: 250, Distortion + component values table
