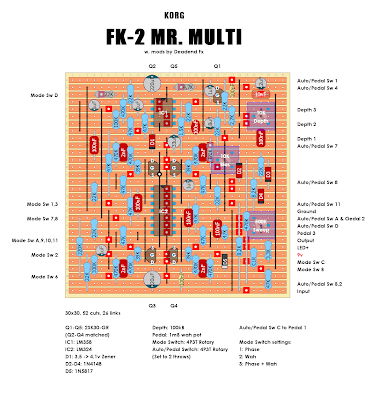

Another weird one! A rotary selector selects between a four stage phaser, wah and phaser and wah combined. The latter mode is supposed to be something out of this world. Deadend Fx (who else) have a projects for this beast and as usual, don’t hesitate to support these guys by bying some nifty PCBs. They … Read more

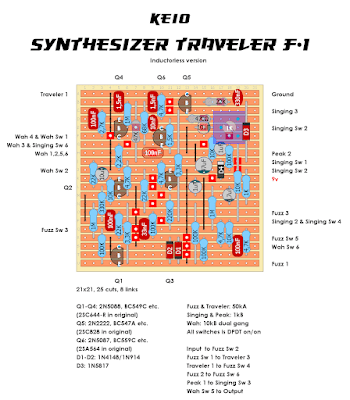

An old, obscure, weird fuzz/wah/filter/noise/volume pedal from Japan dated from the the early 70s. Schematics and more info HERE. Note that a couple of resistor values was is incorrect in the original schematic but it has been corrected for the layout below.
This one was quite a nightmare to draw so I’ve attached the schematic for anyone who is willing to take a second look.o.O

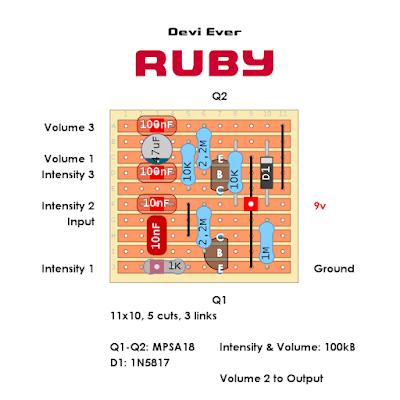

Found some Devi Ever circuits in a folder that I had forgotten so I guess there will be a small Devi Ever blowout the nextcoming days… First out is Ruby, a loud and quite tight fuzz which basically is two cascaded Electra distortions (sans diode clippers). It is definitely worth socketing transistors for this one … Read more

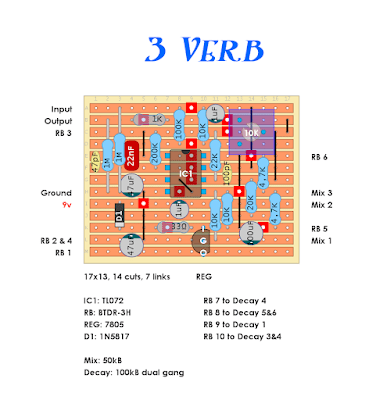

Per a request from Ian. A fairly simple reverb sold as a kit from Musikding in Germany with an adjustable Dwell control across the pins of a Belton 3H brick. Schematic is avaiable HERE.

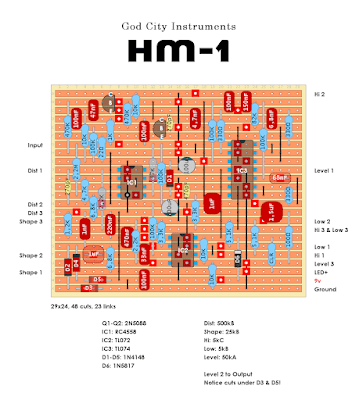

One more layout before x-mas… Here is a modified Boss DS-1 into a taeaked HM-2 EQ. Should sound pretty wild, eh? Schematic is avaiable HERE.

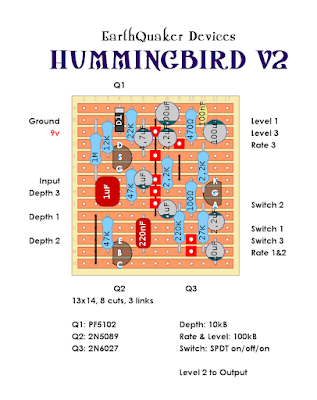

Based on the more recent version of Hummingbird using the more common 2N6027 programmable unijunction transistor. Schematic is avaiable HERE.

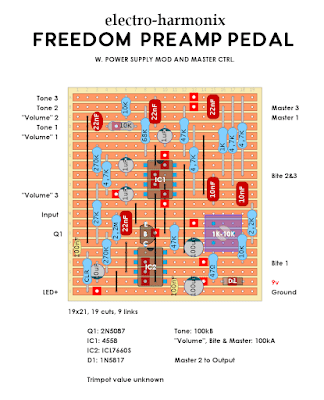

Here we have a rare bird from the early-mid 70s. A tweaked version of the the circuit found in Freedam Preamp amp found its way into some Big Muff enclosures. Original is very pricey and rare. The original ran on two 9v batteries for bipolar power supply for the op amp section but I added … Read more
