This should probably be up here as well.. Spiel: Simble Overdrive has a natural organic tone, unsurpassable touch sensitivity, sweet tube-like compression and built in inspiration. This natural sounding pedal works as a clean boost, ”on the edge” crunch, or a sweet singing overdrive, always retaining the tone of your prized guitar. The Simble pedal … Read more
Schematic is avaiable HERE. Very close to the normal Fat Drive, just four cap value changes.

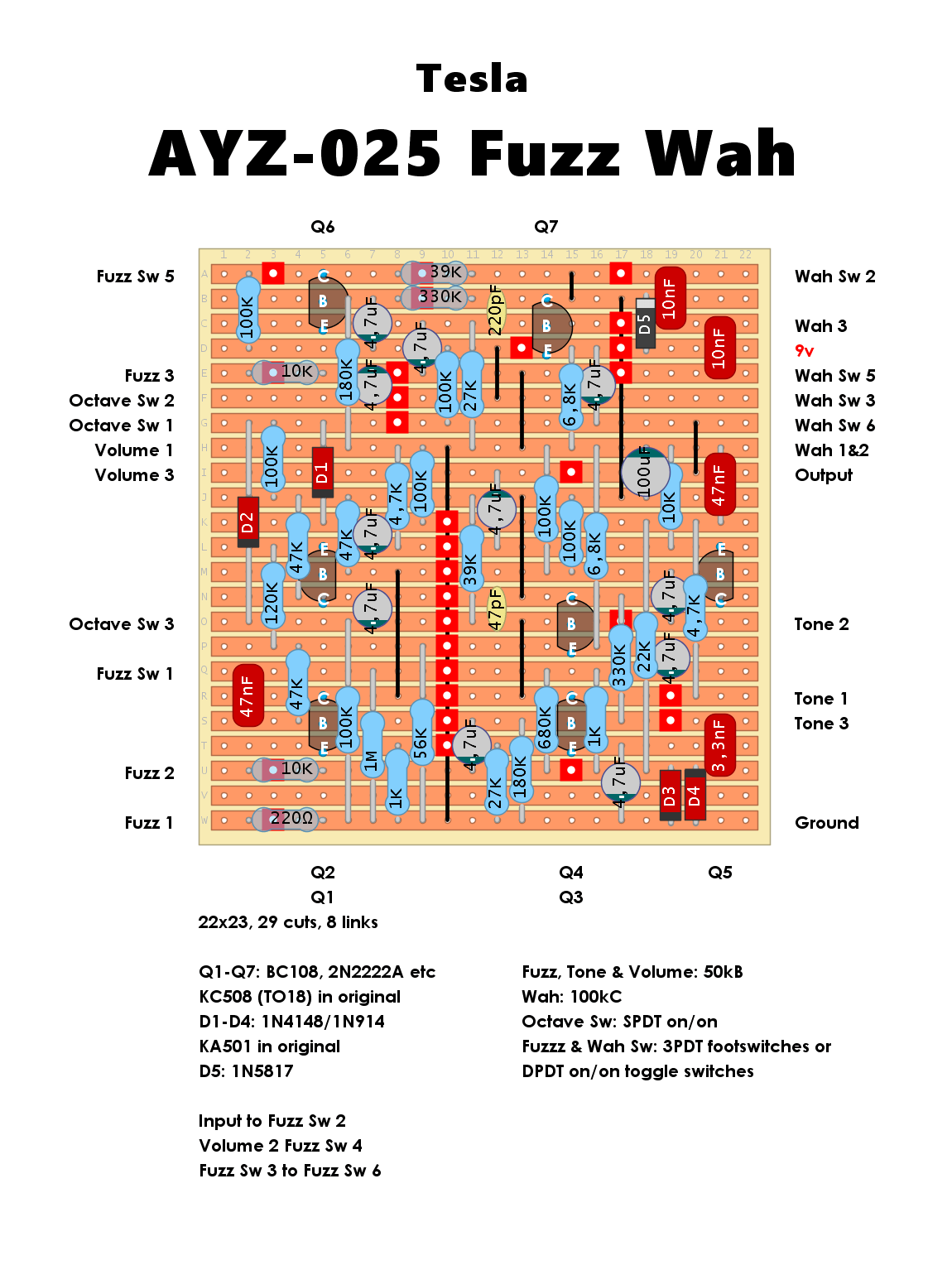

There is a layout for the fuzz section in library but here comes the whole package with the inductorless wah circuit ryincluded. The wah pot can be wired as a manual panel mounted “bandpass filter” tone control or wired through an expression jack. The fuzz section is based on Foxx tone machine but there is … Read more

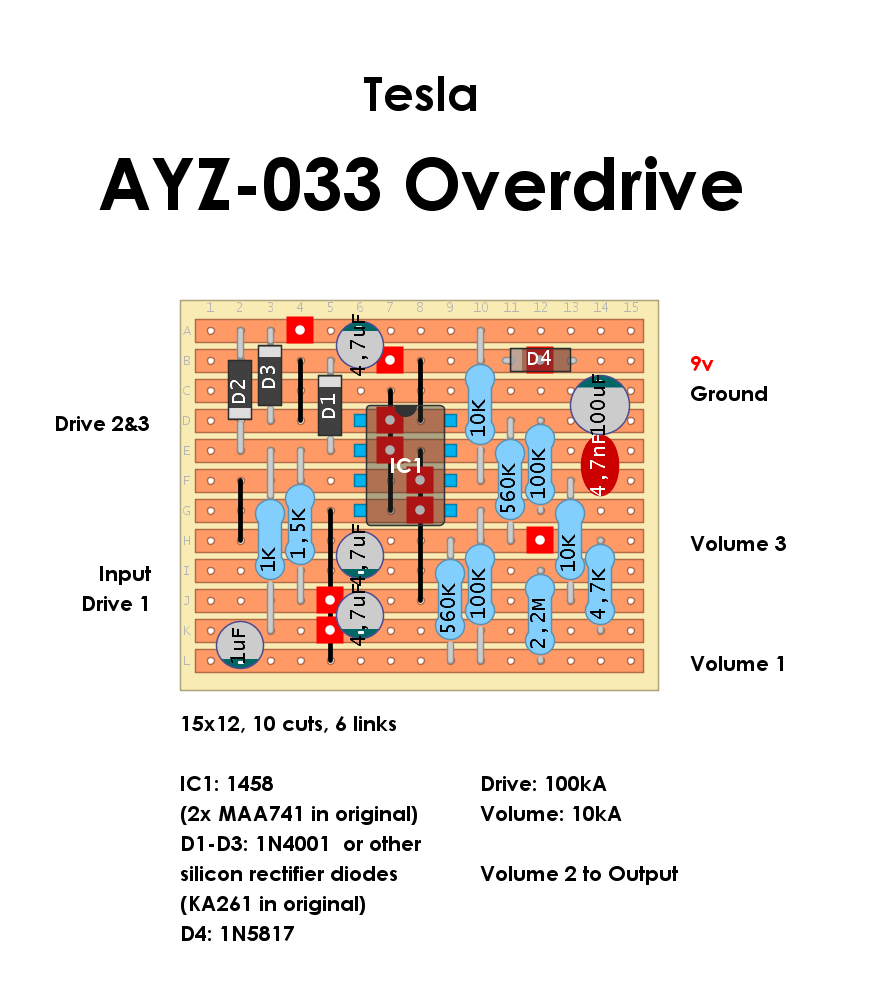

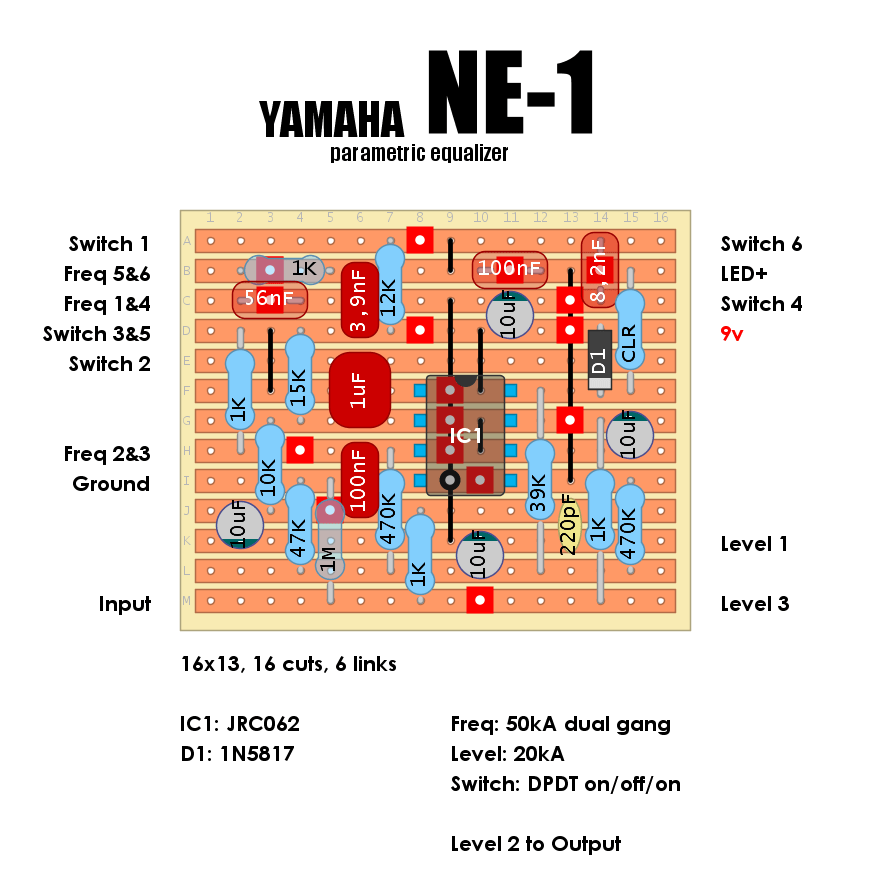

Slightly modified. Stock units had two 741 op amps but the layout is modified for a dual op amp. A 1458 will do the same job as two 741s.

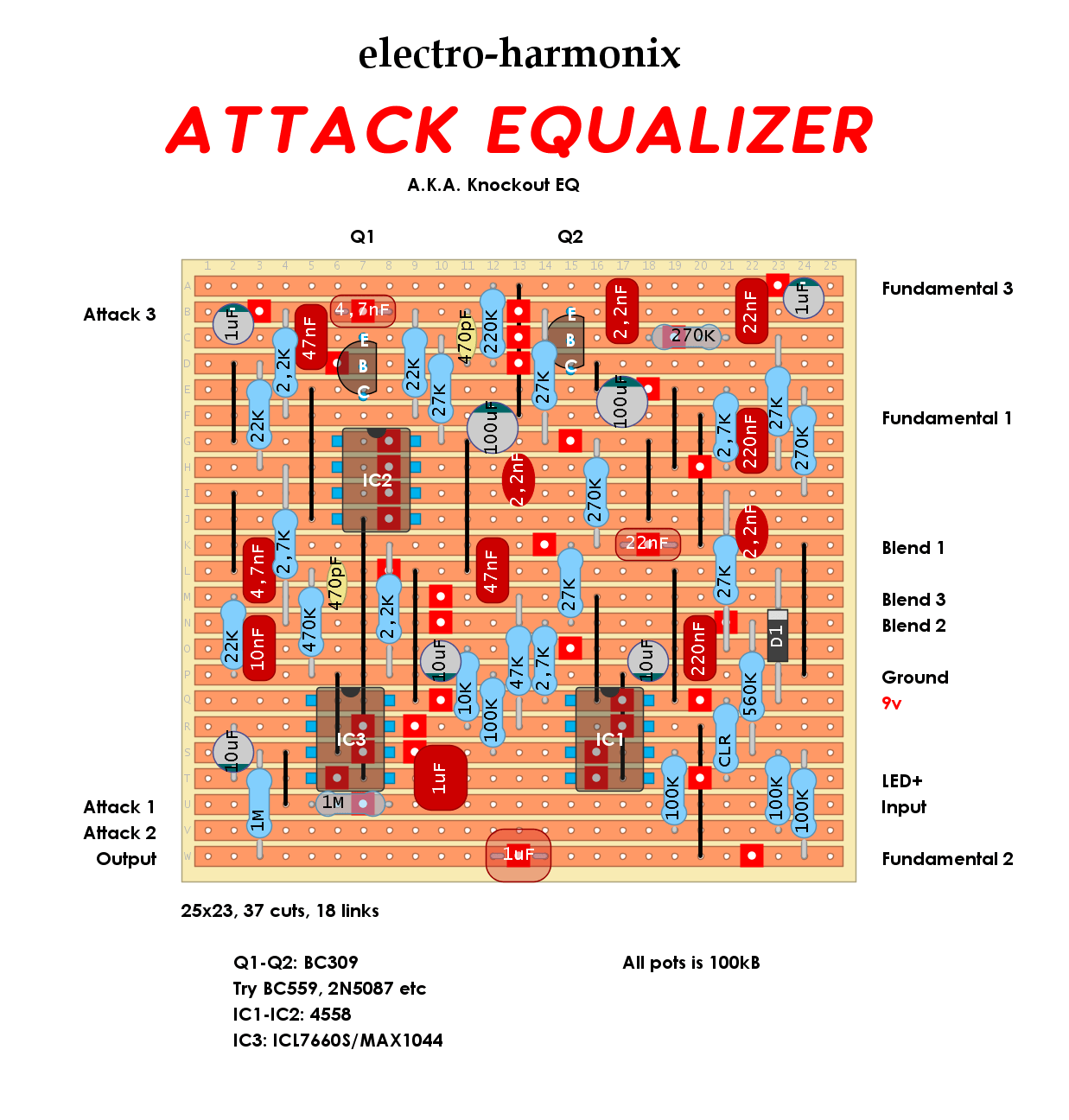

Found this in an older folthe usuader that I forgot. Includes some necesarry modernazations like true bypass, onbard charge pump, input and output caps and pulldown resistors. Schematics is avaiable HERE.
