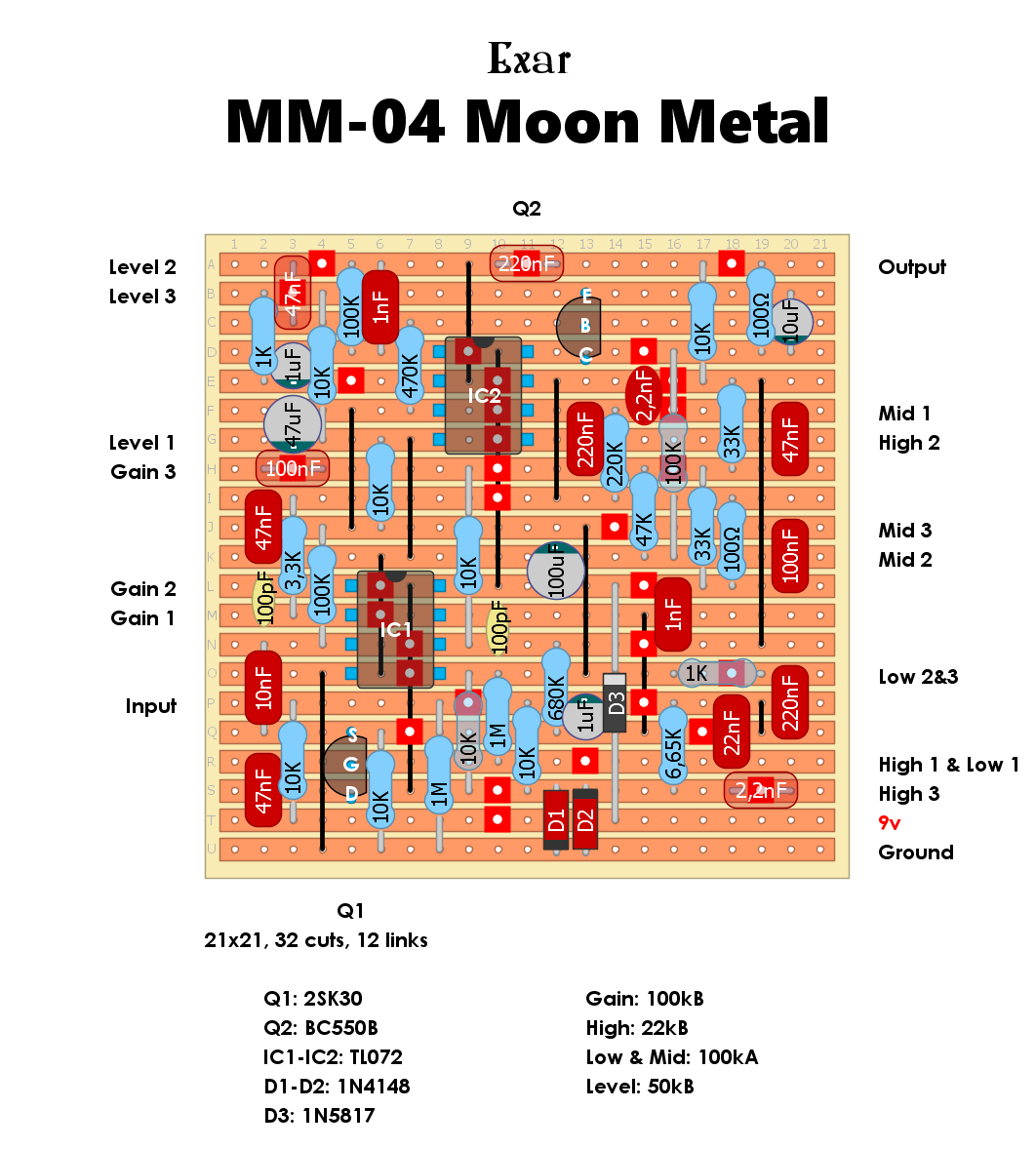

Exar MM-04 Moon Metal
Based on Marshall Shredmaster but lots of tweaked values and a few addons along the signal path. So it might have its own thing soundwise… Schematic is avaiable HERE.
Lastgasp Art Laboratories Green Monster Septic Fuzz
Found this circuit from the DEFX files and thought this to be quite interesting. Discontinued circuit with noise for days. From the source: The GREEN MONSTER septic fuzz (GM2)is an effect pedal to create a septic distortion. Characterized by a dirty, broken and rotten sound. Bad handling! GREEN MONSTER is back with four knobs! There … Read more
Joyo Roll Boost
Nice, small and has room for tweaking – i just love to do these modern, super cheap china circuits.. Layout is according to fsb-trace by CheapPedaCollector – who does amazing job with pedals like this one.
Dylan159’s Fuzz Facelift
It’s december already! From Dylan159’s Unreleased circuits on FSB:I’m not done with fuzz faces it seems. This one’s goal is to keep all the classic cranked gain tones while making the ill-treated gain knob more useful. This is accomplished by moving the gain control to the first stage. When maxed, you have a classic, low … Read more
Exar OD-02 Overdrive
Cool looking soft clipping overdrive using a discrete op amp setup. Schematic is avaiable HERE.
Exar MT-1 Metal
Might be something for the HM-2 fans? The gyrator frequiencies and Q’s looks promising… Schematic is avaiable HERE.
