Ok, so perhaps this wasn’t the sanest idea that I’ve ever had, but I do like Jonny Reckless Compressors and discrete circuits, so I had to give this a try. I do realise that I will probably be the only person foolish enough to undertake this on vero, but I’m perfectly OK with this. … Read more

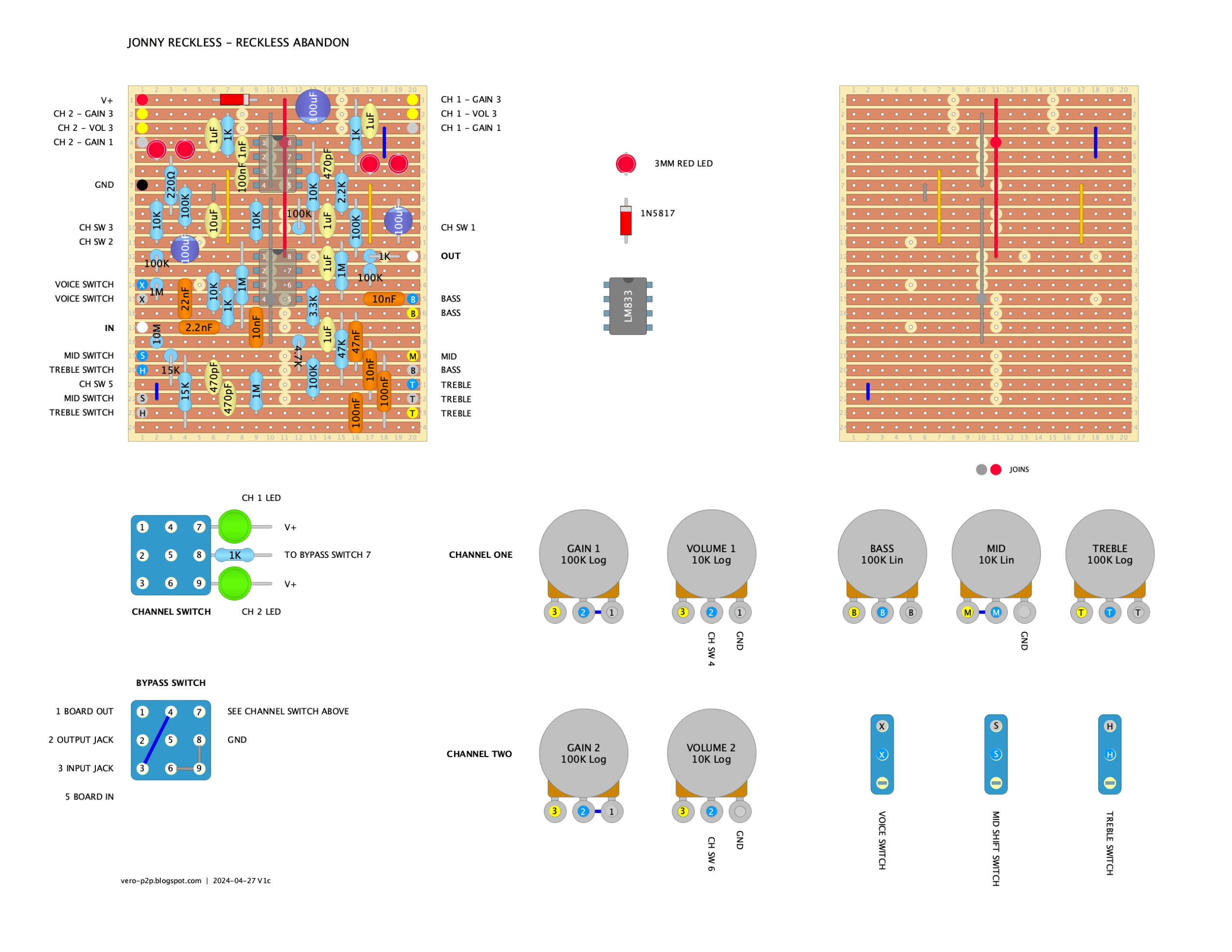

A recent request. This is a monster of a pre-amp from Jonny Reckless. Best to read the details on DIY stomp boxes, as there’s a lot to this. I’ve not built this, and there’s a bit going on with it. I’d suggest checking it against the schematic before starting. I’ve looked over it a few times, … Read more

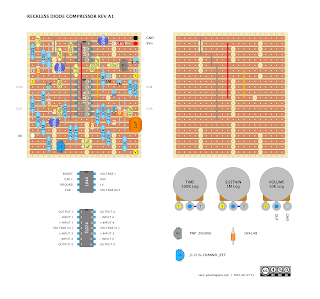

After building a few fuzzes lately, I thought it was time to change. I’ve built a later revision of the Reckless Diode Compressor, and I really liked it. This is the first version, somewhat subtler than the last revision. It has similar characteristics but is a more complicated design with a dual rail power supply. This … Read more

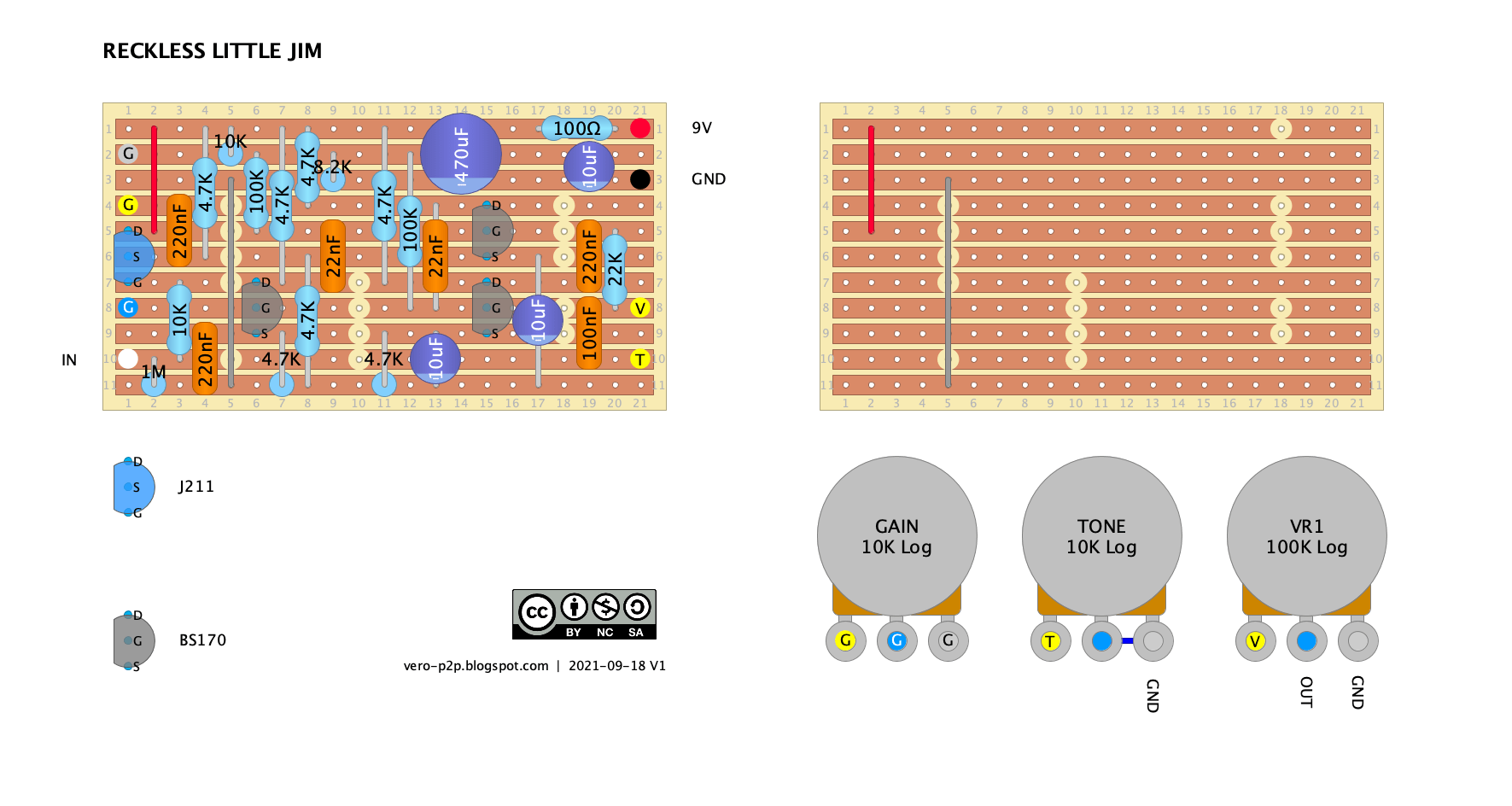

Another fine circuit from Jonny Reckless, this time he’s headed into cranked Marshall territory (hence the name). Here’s the thread on DIY Stompboxes RECKLESS LITTLE JIM – VERO LAYOUT RECKLESS LITTLE JIM – VIDEO DEMO BY JONNY

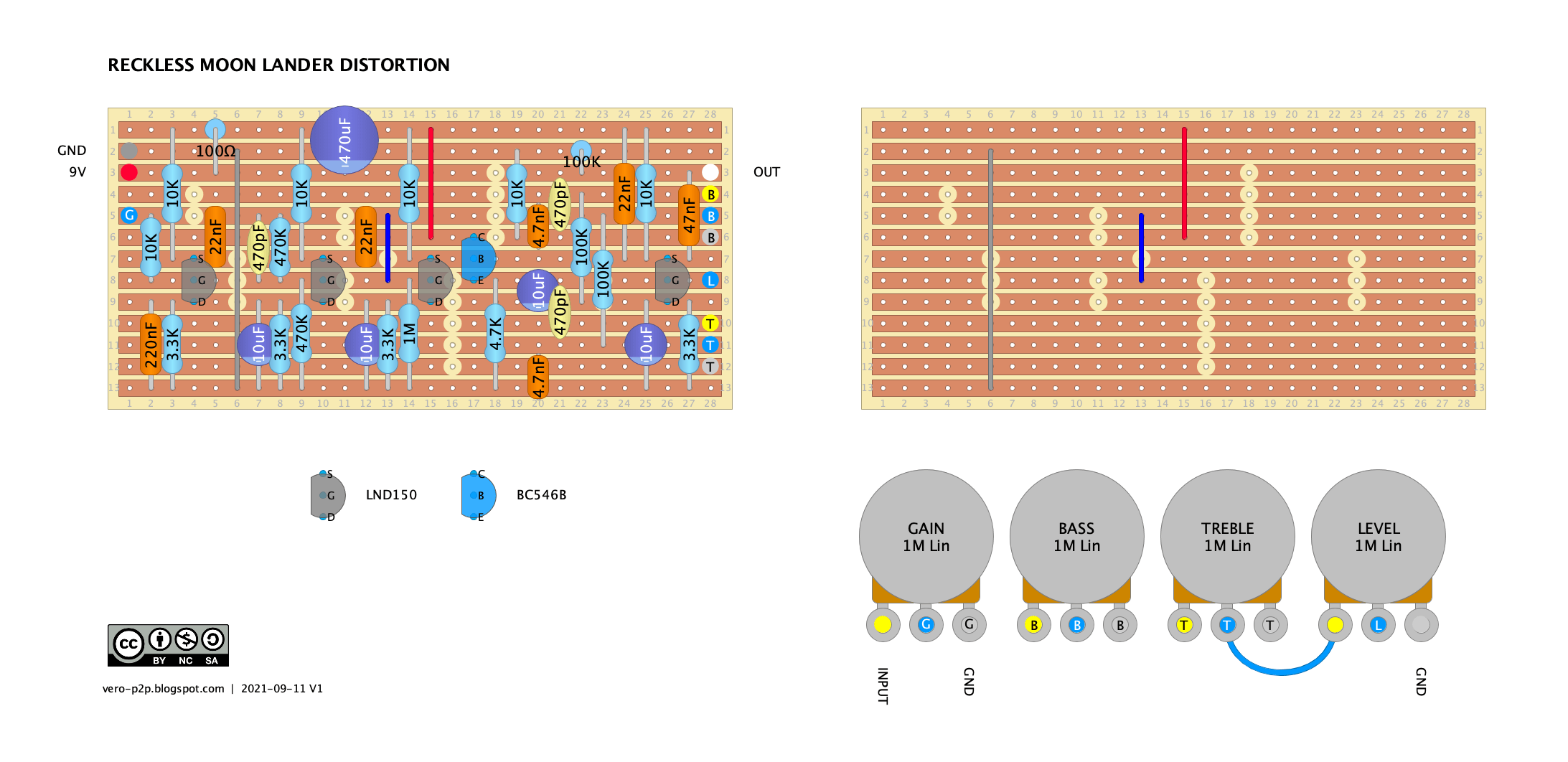

Another one from Jonny Reckless – the Moon LNDer distortion, using LND150 MOSFETS. All the required details can be found on DIY Stompboxes, including schematics, some suggested mods and a video demo with a few words from Jonny. Set drain bias to between 6 and 7 volts by adjust the 10k resistors going to the … Read more

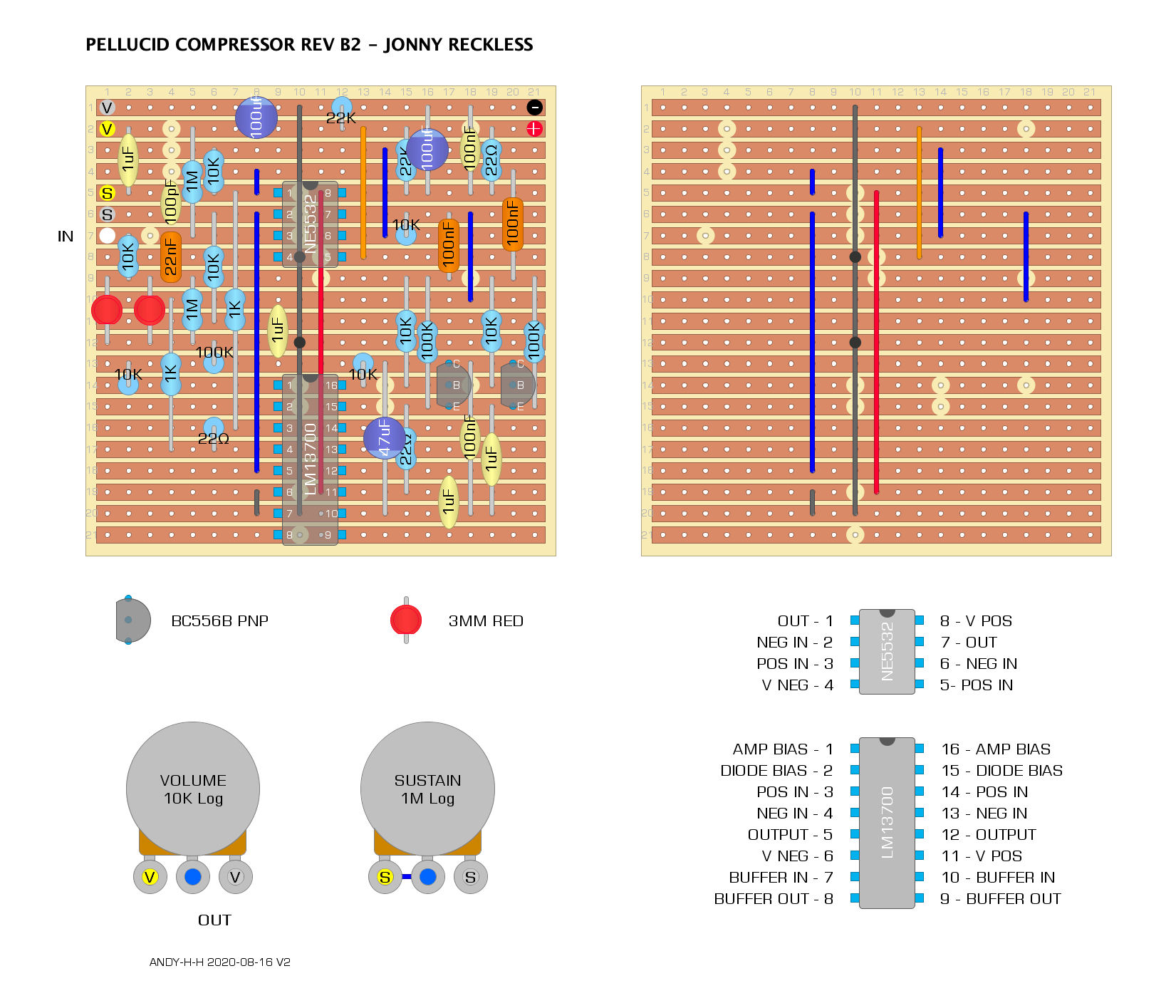

The Pellucid Compressor by Jonny Reckless on DIY Stompboxes RECKLESS PELLUCID COMPRESSOR – VERO LAYOUT note: if you see an older layout of this from me – don’t use it; I uploaded a working file with a mistake and now can’t edit the thread on DIY stompboxes. ON THE BENCH
This diode compressor is by Jonny Reckless on DIY Stompboxes. An original design of his – it’s a really cool sounding compressor, I like it a lot. You can definitely hear it working, this is not one of those compressors that you aren’t sure if it’s on or not – great for clean sounds on a strat. He … Read more
