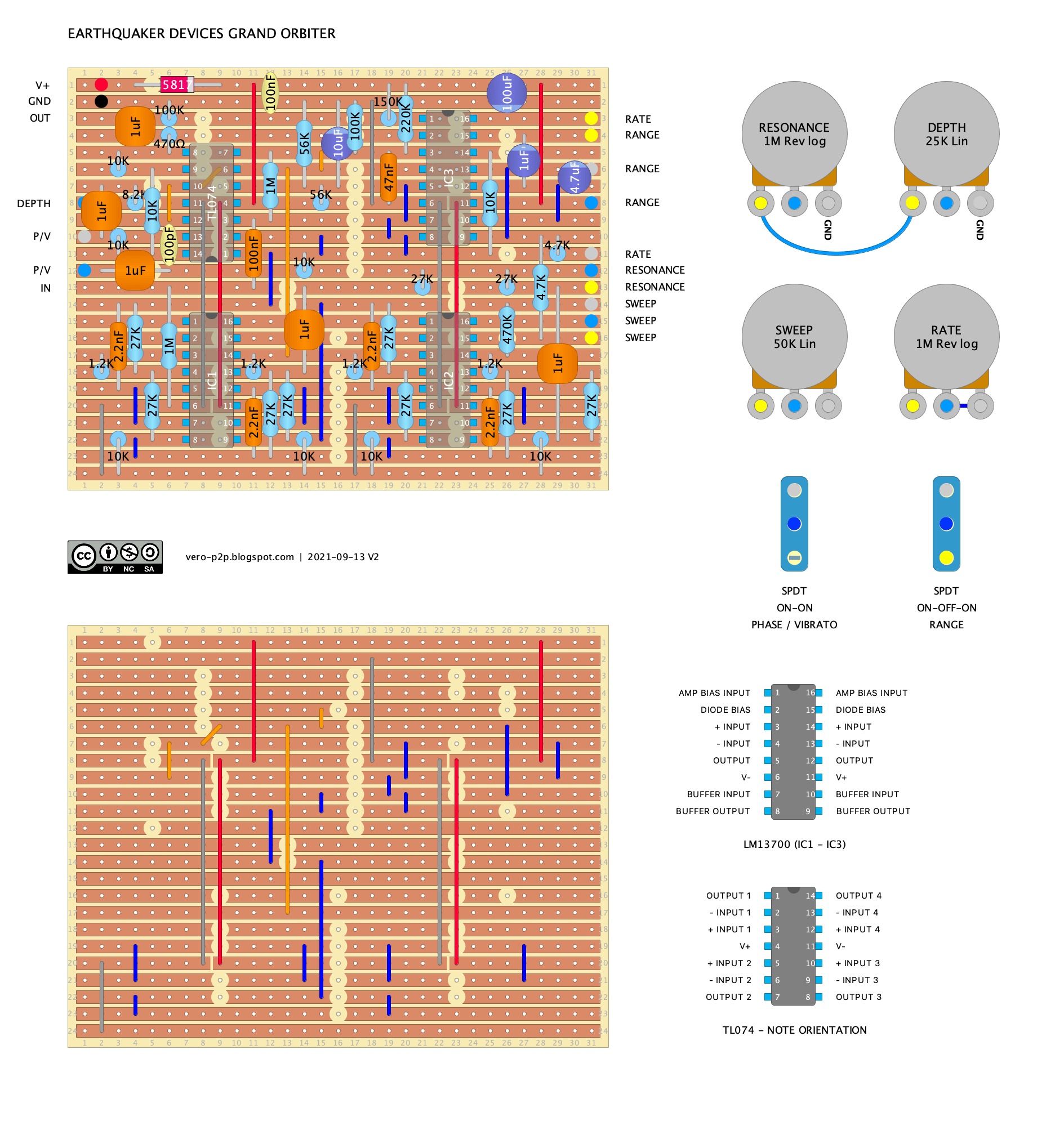

The Grand Orbiter Phase Machine is a four-stage OTA phaser, with options for vibrato or phasing (a bit like a Univibe). Not exactly a small board, but not too much to take on either. MLC caps might be a good idea for some of the 1uf caps to save space. Currently unverified. I have reviewed the … Read more

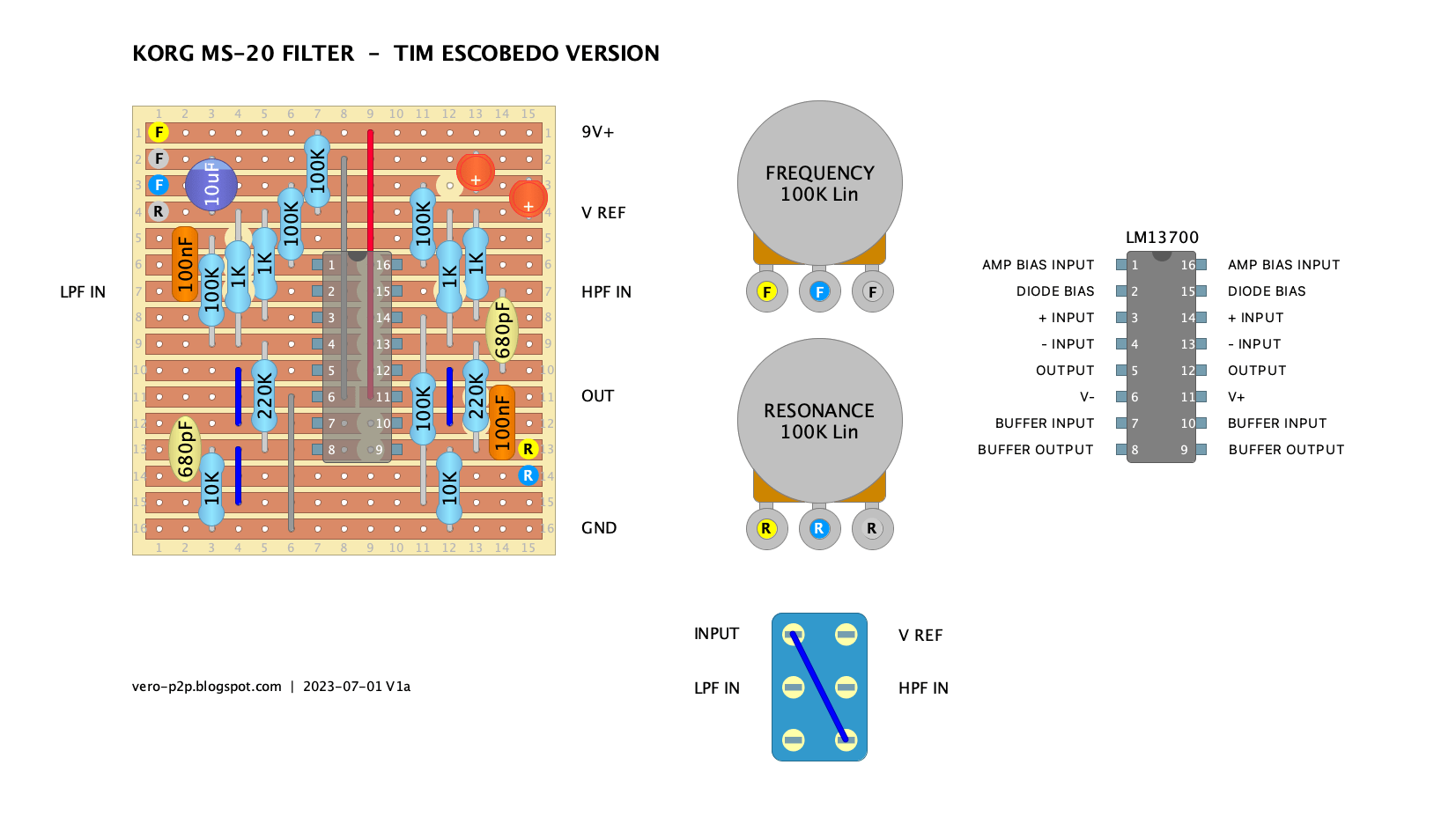

If the other MS-20 filter is all too much, maybe this will be easier. It’s Tim Escobedo’s adaptation of an MS-20 style filter for guitar, just using the an LM13700 and running at 9v. KORG MS-20 FILTER – TIM ESCOBEDO VERSION – VERO LAYOUT

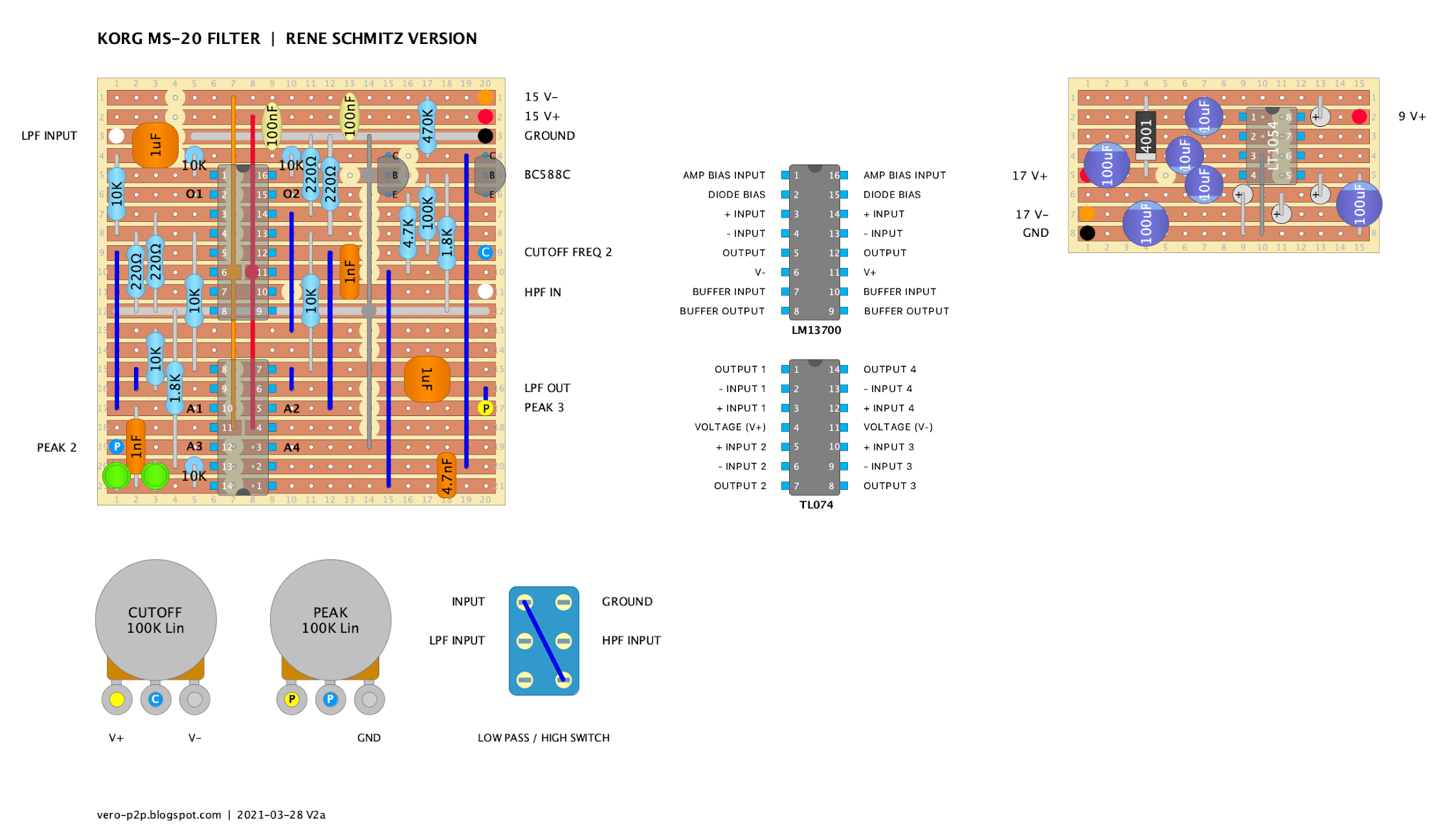

This is the Rene Schmitz version of the MS-20 Filter, which is used in the later models. I didn’t include the CV control inputs, as I have no plans on using CV. KORG MS-20 FILTER – VERO LAYOUT KORG MS-20 FILTER – BUILD REPORT This is a very particular sound, and while it doesn’t have a lot … Read more
The Musitronics Mu-Tron Micro V is a cool old auto-wah / envelope filter from the seventies – I feel I need to be wearing a valour tracksuit, possibly with a half-unzipped jacket exposing generous chest hair with a gold dangler to really play this properly. Maybe a moustache too… I’ve used a LM13700 instead … Read more
The Pellucid Compressor by Jonny Reckless on DIY Stompboxes RECKLESS PELLUCID COMPRESSOR – VERO LAYOUT note: if you see an older layout of this from me – don’t use it; I uploaded a working file with a mistake and now can’t edit the thread on DIY stompboxes. ON THE BENCH
