Bajaman’s overdrive circuit based on the Engl 530 preamp with switchable tone stack.
Original thread and schematic available on the FSB forum here.

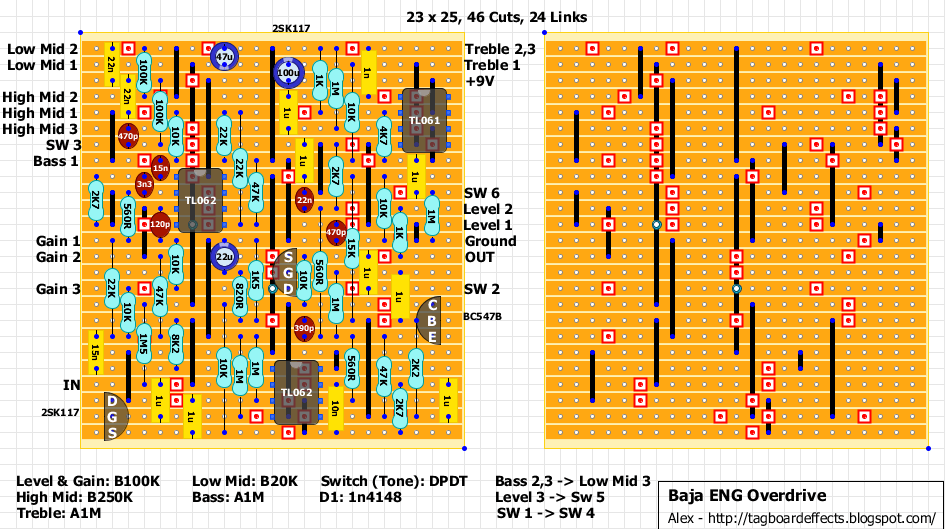

The layout should fit in a 125B box.
09/07/2018 Layout Updated! Inverted Treble and Bass pots’ lugs. Changed 390p cap from TL062 pin 5 to 470p. Changed 1K resistor next to 22uF cap to 1K5.
22K resistor between Gain 1 and Gain 3 goes from Gain 1 to 15n/10K 3 rows below instead of Gain 3. 22K above TL062 pin 8 needs to move down one row between 10K/22K and VBias.
