Os Mutantes Fuzz

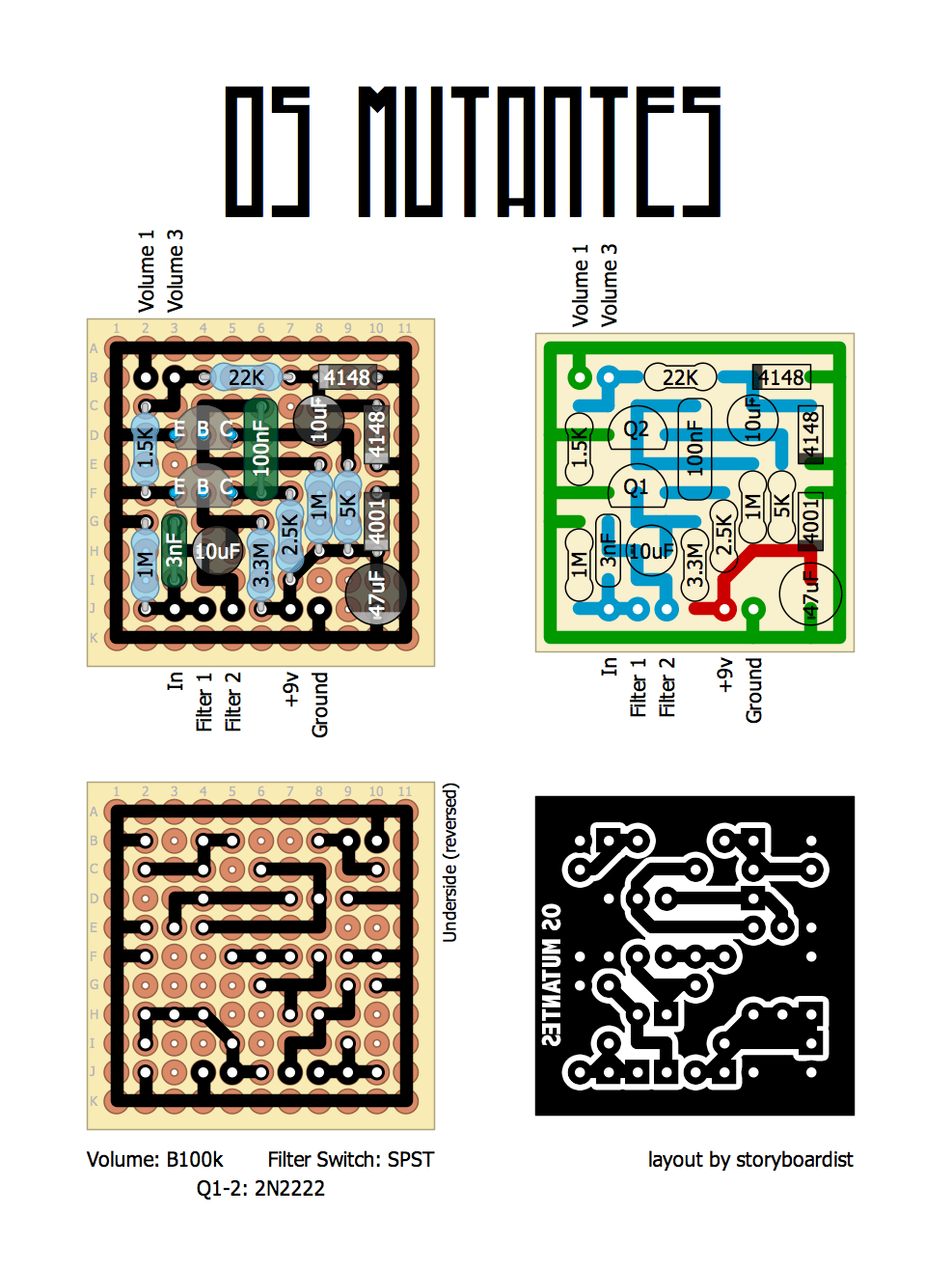

Got a request for this one and thought it’d be a good Fuzz Friday layout. It’s got a fair amount of treble and grit on tap and should fit pretty easily in a 1590a. Schematic here.
Lovepedal Jubilee
Here’s Lovepedal’s Jubilee–pretty close circuit-wise to the Purple Plexi and Black Magic. Should be a pretty quick build. Note, if it sounds too dark, replace the 47nF cap with a 4.7nF cap. Schematic here.
VooDoo Lab MicroVibe
Here’s the Micro Vibe from VooDoo Lab—aka, welcome to jumper city. Always seems to happen with vibe circuits, but this one will fit in a 125B quite nicely. Pretty standard adpation of the old Univibe with speed and intensity controls. Set the trimmer to 250Ω (and be careful if you adjust it since there’s no … Read more
zVex ’59 Sound
zVex’s new ’59 Sound looks to emulate an overdrive ’59 Fender Bassman amp and is essentially a tweaked Box of Rock. I’ve left out the boost section (which is essentially a SHO after this circuit), but can be easily added with the old SHO layout here on the blog. Also, there’s another installment of the … Read more
Xotic BB Preamp Layout / Schematic / Tag Board

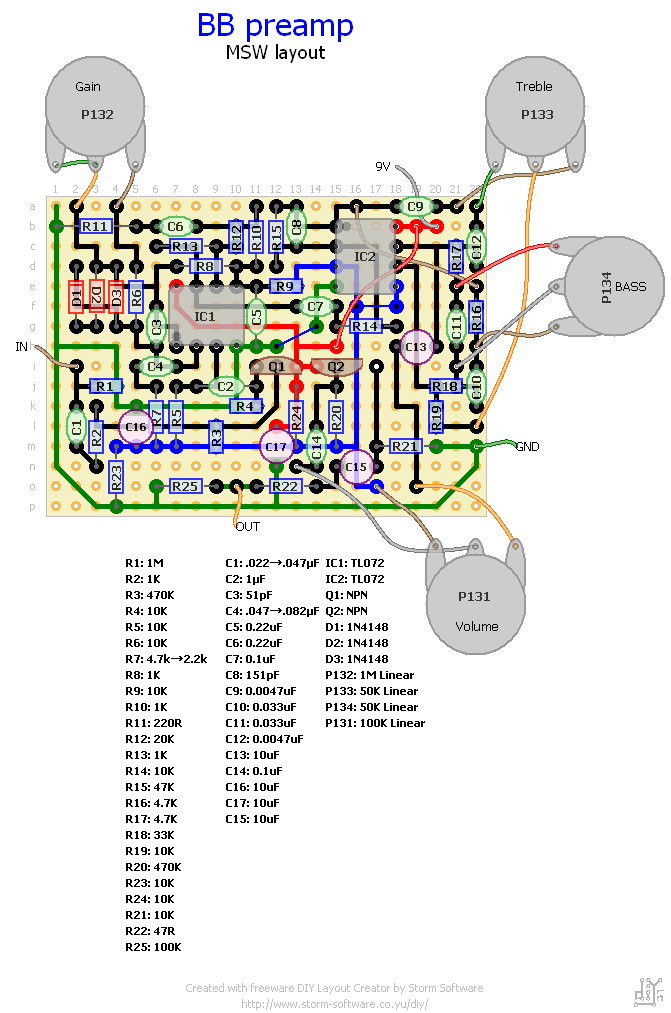

Vero Board Layout / Tag Board: Schematic : BB Preamp / Xotic
Vertex Steel String
Original info: “The Steel String Clean Drive faithfully recreates the tonality and feel of the iconic Dumble Steel String Singer amplifier in a stompbox format. Designed alongside a real Steel String Singer (#001), this 100% analog tone tool will do it all from Overdrive, to Fat Boost, to Compression, to EQ shaping and more. Get … Read more
Jext Telez White Pedal
Here’s a pretty cool one for Fuzz Friday–the Jext Telez White Pedal. It’s a recreation of an onboard overdrive unit in a vintage Vox amp used by George Harrison in the late 60s. Schematic can be found here. Pots are board mounted and I’ve tweaked the Yoko switch to just be a toggle instead of … Read more
