Durham Crazy Horse
Cranked Neil Young toanz in a box with an interesting sag/bias control labelled Volts. And yes….D4 is going nowhere…. Updated 201224 and now drawn from a schematic without bugs, avaiable HERE.
Month: December 2020
Parasit Studio The Corruptor V3
Latest version (V3) of a square wave fuzz with a PLL IC to achieve ring modulation. Schematic and info is avaiable HERE.
Parasit Studio Raygun Youth Chaos Fuzz
One of the craziest things I’ve heard. An op amp fuzz that tickles a Phase Locked Loop IC from one of my DIY heroes, Fredrik Lyxén of Parasit Studio. Schematic, demo and more info HERE.
WEDGE ENCLOSURE: Finishing Enclosure #1, Dark Grey Hammerite
I bought a couple of these enclosures on e-bay, not being completely sure what they would be like, but I’m pretty happy with them. They feel solid, and the tolerances are good (no big gaps, and everything fits nicely). The corners are a bit sharp, but nothing a file can’t sort out before finishing. VINTAGE-STYLE WEDGE … Read more
Hudson Electronics Sidecar
A TS with bandaxall tonestack, a germanium transistor wired as a clipping diode and a high fidelity op amp. Schematic is avaiable HERE.
Lovetone Brown Source

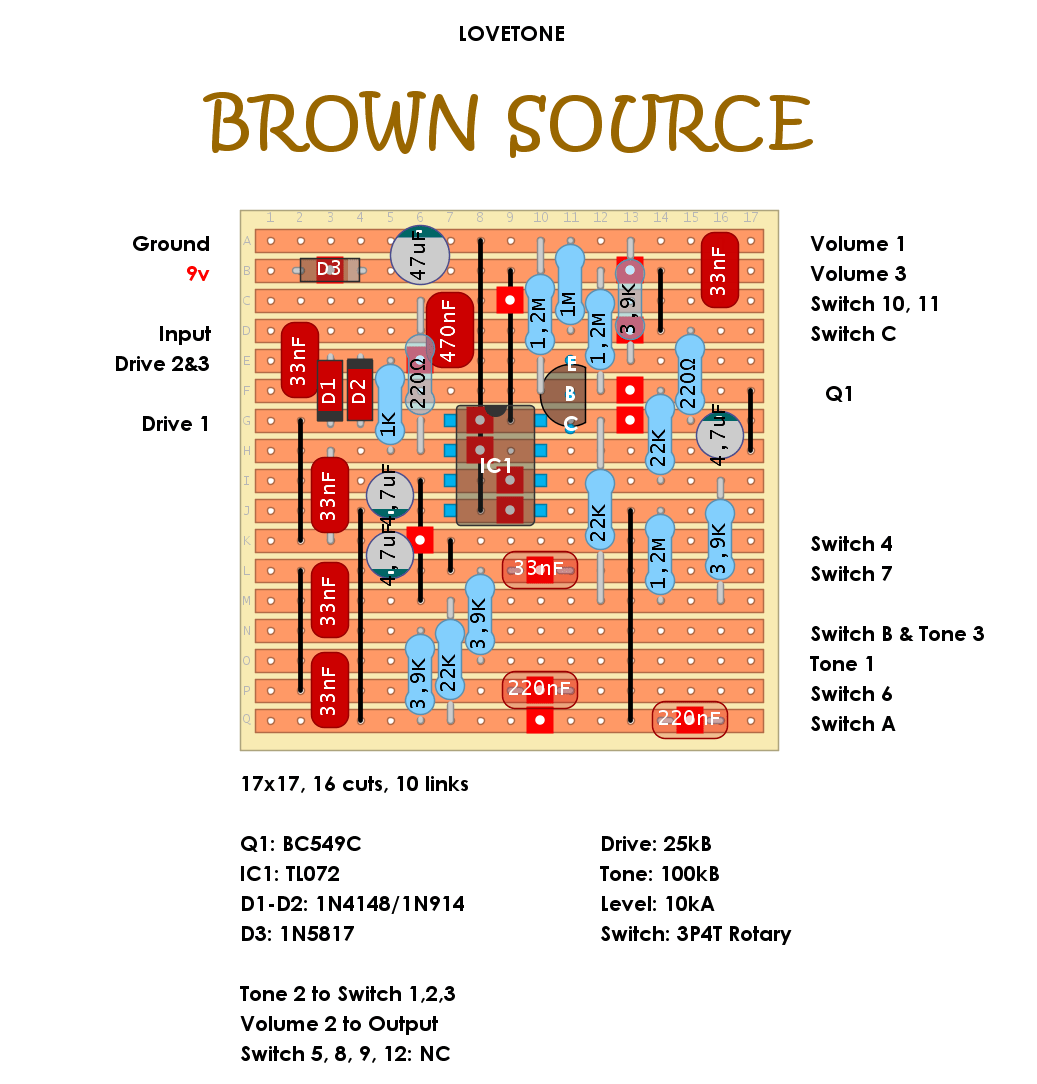

There has been several schematics of this one over the years, each one having some bugs. But recentrly Lacesensor at FSB managed to do a proper trace and he posted thr corretions at FSB.
Death by Audio Absolute Destruction
A transatralntic trace by Enrico, AlexS and fuzzhead. A big thanks goes to Enrico for letting us trace his pedal, all the images and the schematic. The layout is tested and verified. There is some odd parts in there which can easily be subbed for other values. (221ohm to 220 ohm and 4,64k to 4,7k). … Read more
