TRANSISTORS: Soviet Transistor Pinouts

 Just a little reference to Soviet-era transistor pinouts.

SOVIET TRANSISTOR PINOUTS

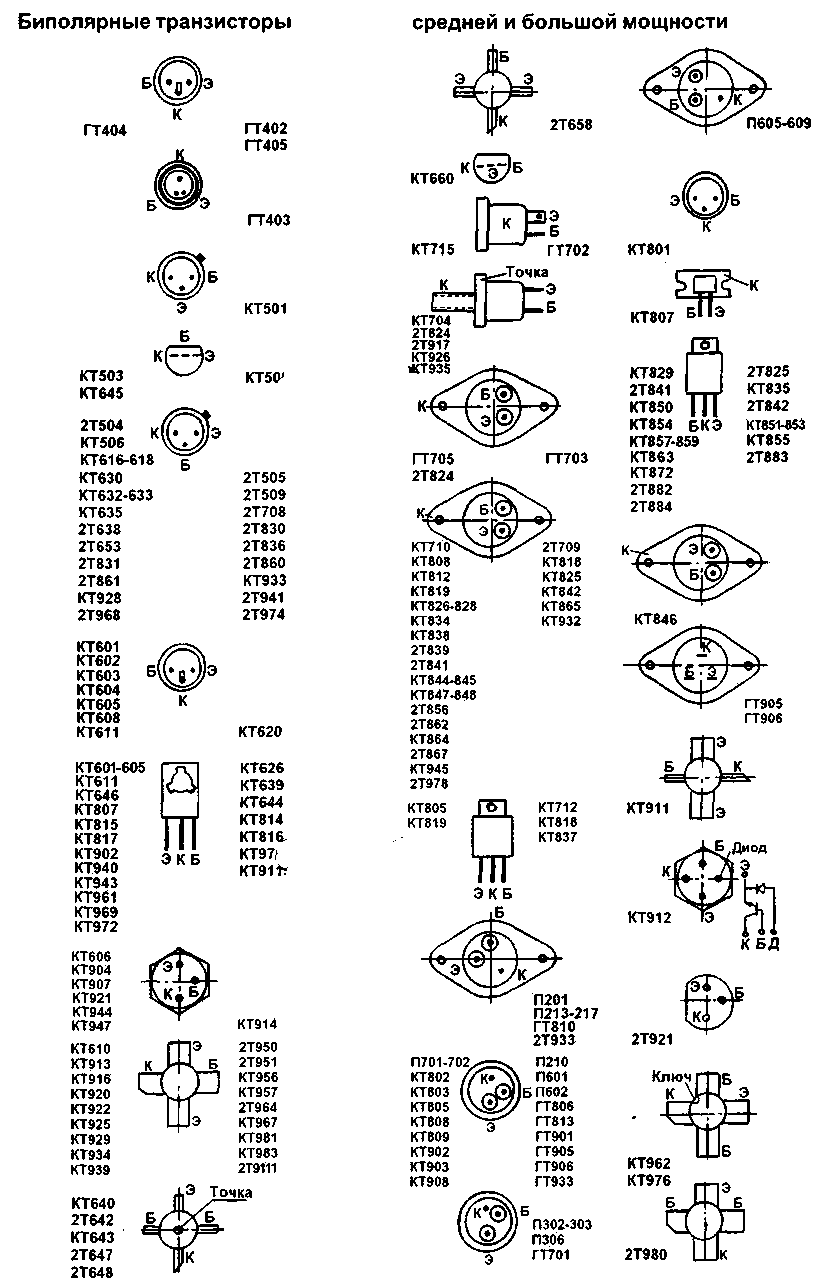

Soviet Transistor pinouts

Soviet-era Transistor pinouts




note:  in addition to potentially different pinouts, some Soviet-era transistors can have the case connected to the base – which is not good if it touches anything else.  The dot on the case usually marks the emitter, not the collector as often found on European transistors
