Guyatone PS 21 Guitar Exciter Comp 9d65692bda5c

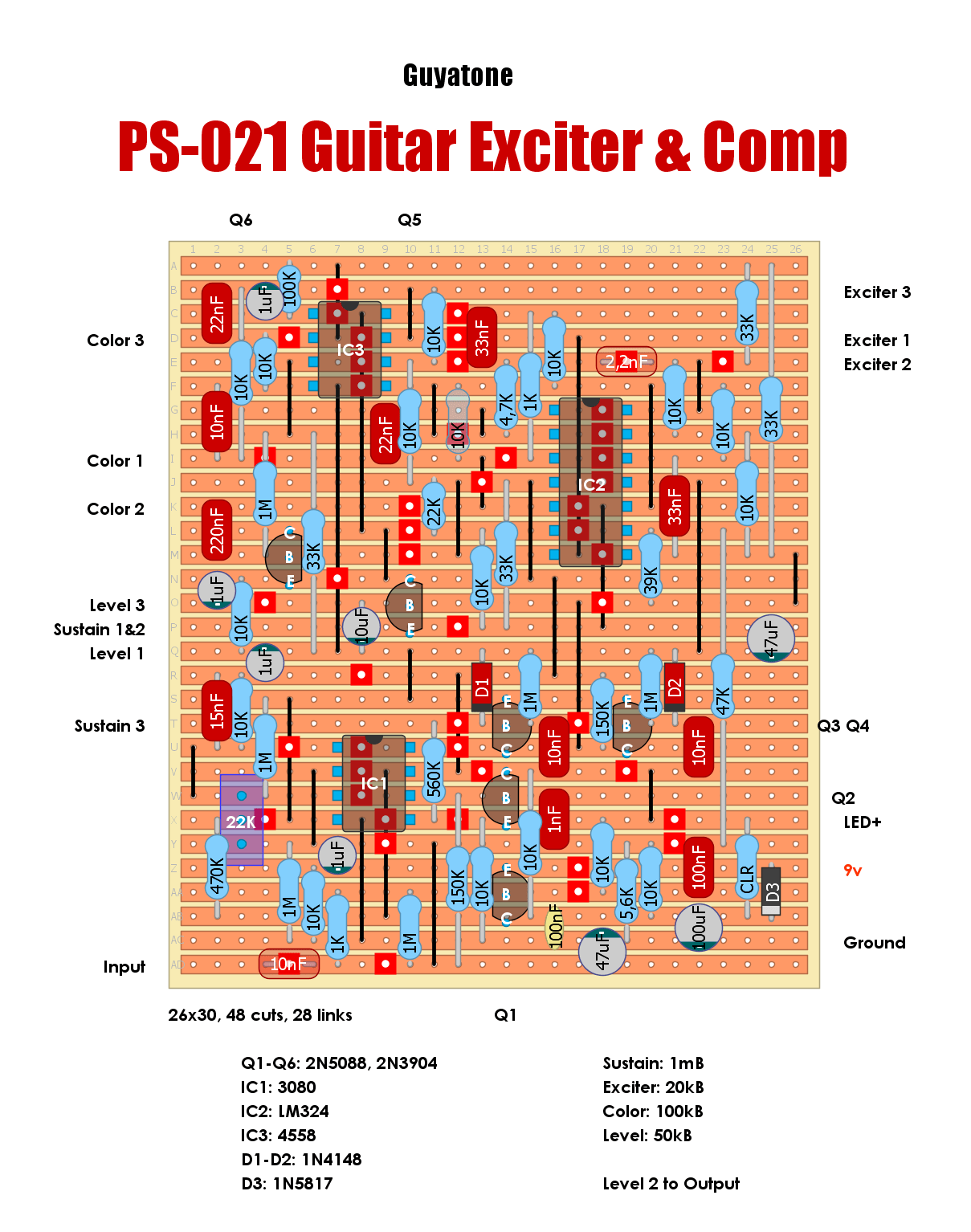

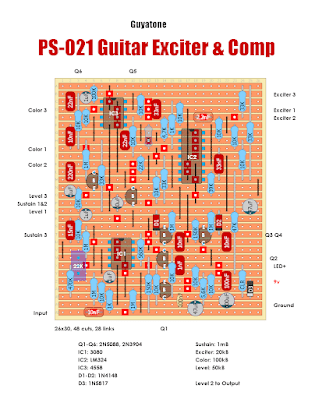

Guyatone PS-021 Guitar Exciter & Compressor

4 Jun 202618 Aug 2022 by chords

Schematic is avaiable HERE.

Categories Uncategorized Tags Compressor, dirtboxlayouts, EQ, Exciter, Guyatone, Unverified

Guyatone PS-020 Bass Exciter & Limiter

Guyatone PS-025 Touch Overdrive
