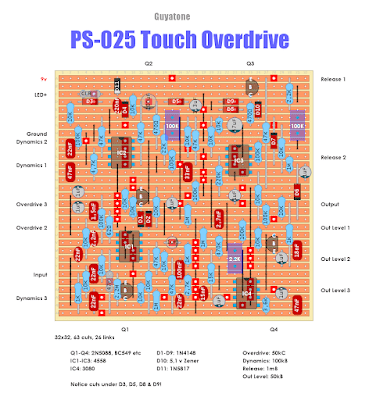

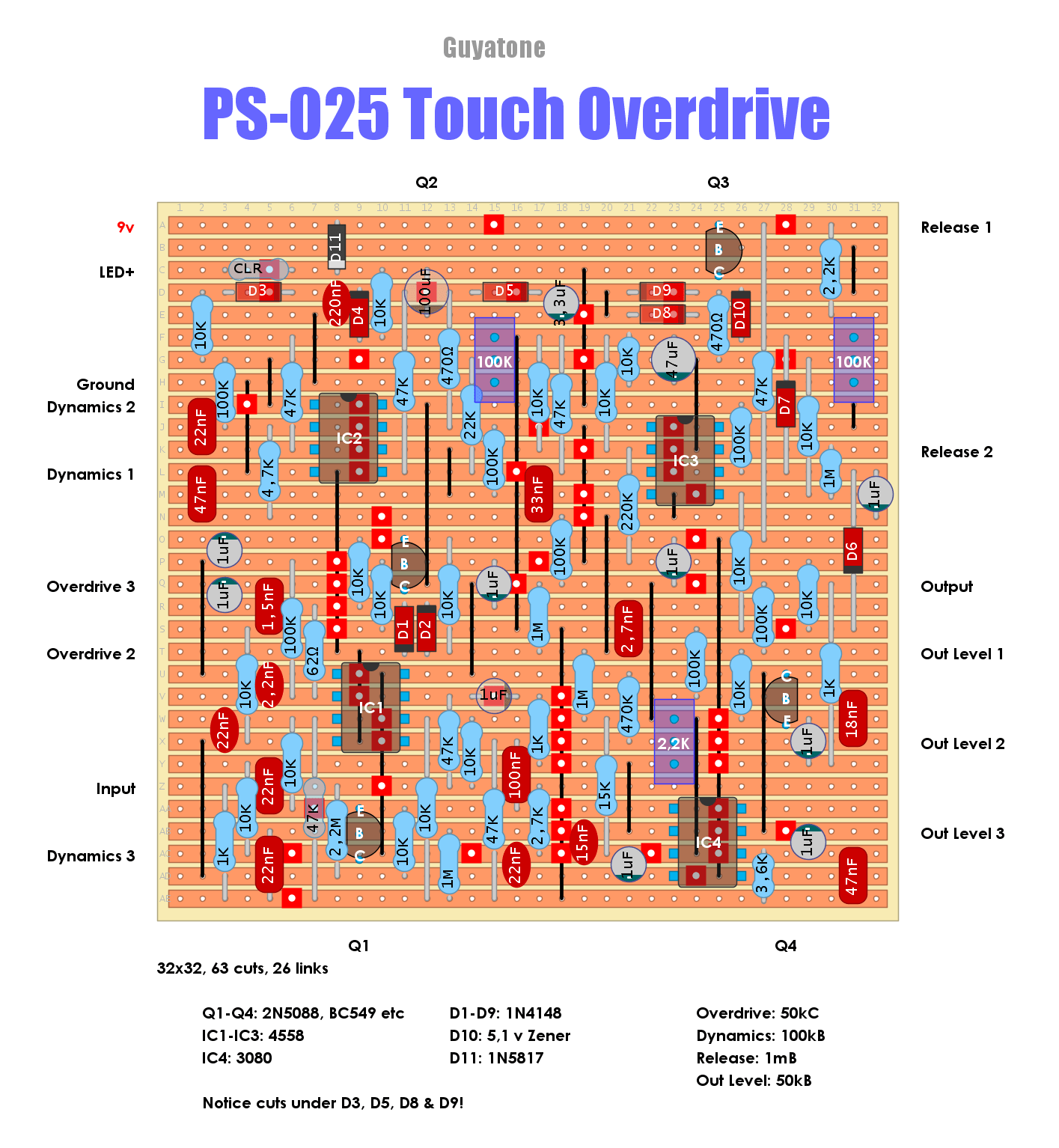

Guyatone PS-025 Touch Overdrive

13 Jun 202618 Aug 2022 by chords

Schematic and trimpot setup is avaiable at Deadend Fx.

Categories Uncategorized Tags Compressor, dirtboxlayouts, Guyatone, Overdrive, Unverified

Guyatone PS-021 Guitar Exciter & Compressor

SELMER: Buzz Tone, Point to Point Layout
