Another from the recent Aion FX Pete Cornish traces – this time it’s a variation of the CC-1 Crunch, the CG-1. Same layout, just a few value changes here and there. It will sound a little different to the CC-1, but not substantially. I quite like the CC-1, especially with an added mod to dial … Read more
There was an layout in the library based on an inaccurate schematic. It’s been taken down since Aion did a new trace. Schematic is avaiable HERE.
Aion FX recently traced a few more Cornish pedals – and the NG-3 trace was was a real surprise package. It was thought to be a NG-2 with an external bias control. It’s nothing like the NG-2 trace by Pedal PCB – not even close. I did have a vero layout for the NG-3 … Read more
So the mysterious P-2 has finally been traced, care of Aion FX (thank you). I had previously posted a guess as to what this might be, and I wasn’t too far off. Here’s the same layout with confirmed values. PETE CORNISH P-2 – VERO LAYOUT
This one has been on many peoples list for years… Traced by Deadend Fx and the schematic is avaiable HERE. A “Sag Depth” pot is the only mod but if you want to build it as the original, just replace the pot with a 1,5k resistor. Verified by Tom.
My Blogger account comment function is messed up and has been for quite some time. I still can admin the blog as usual but I’m dead quiet… Don’t want to give the impression of being snorky or ignorant. I really appreciate all the verifications, visits and comments!😊
I saw this pop-up today at Macari’s and thought I’d check it out. It’s a silicon fuzz face variant used as the fuzz board in one of the old Colorsound fuzz wahs – which is not completely unlike the Colorsound Fuzz Box one knob fuzz (which I used for the layout). It’s a great sounding, … Read more

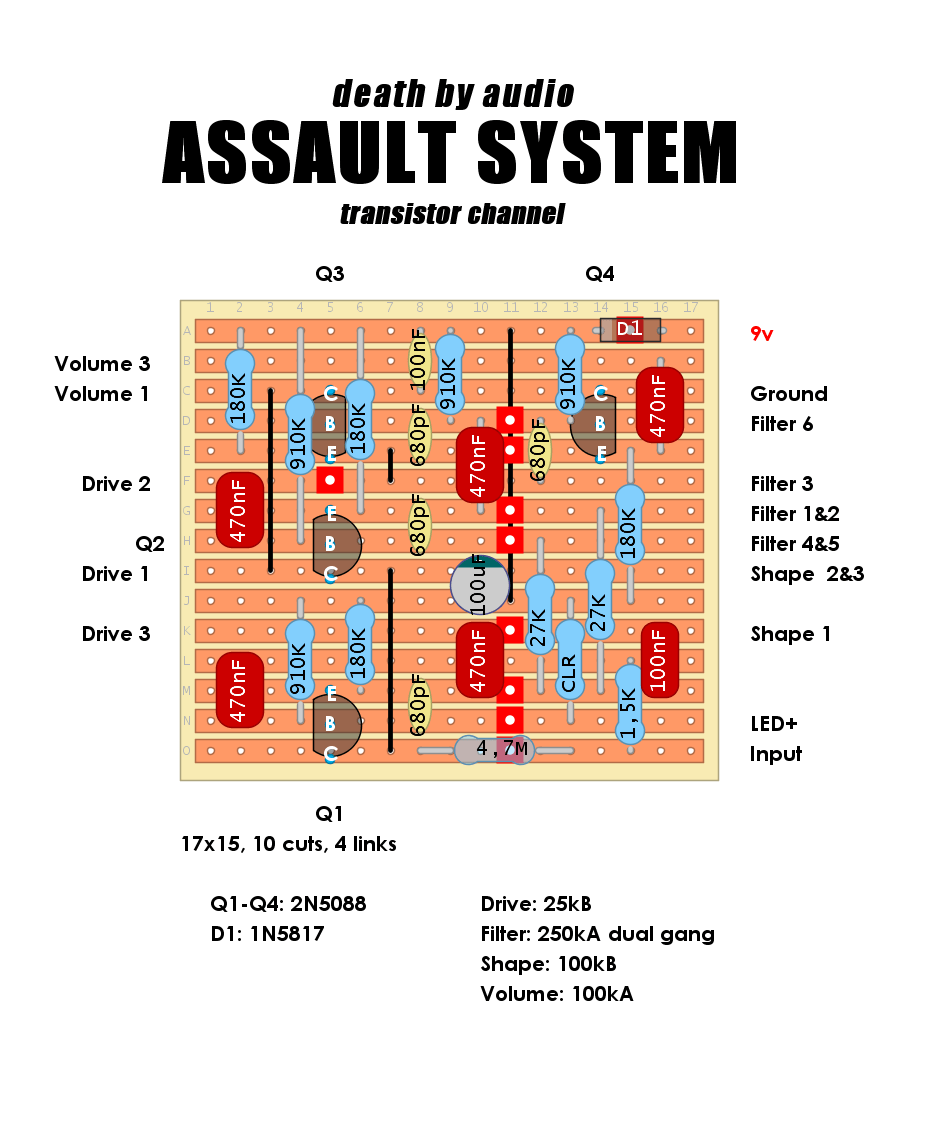

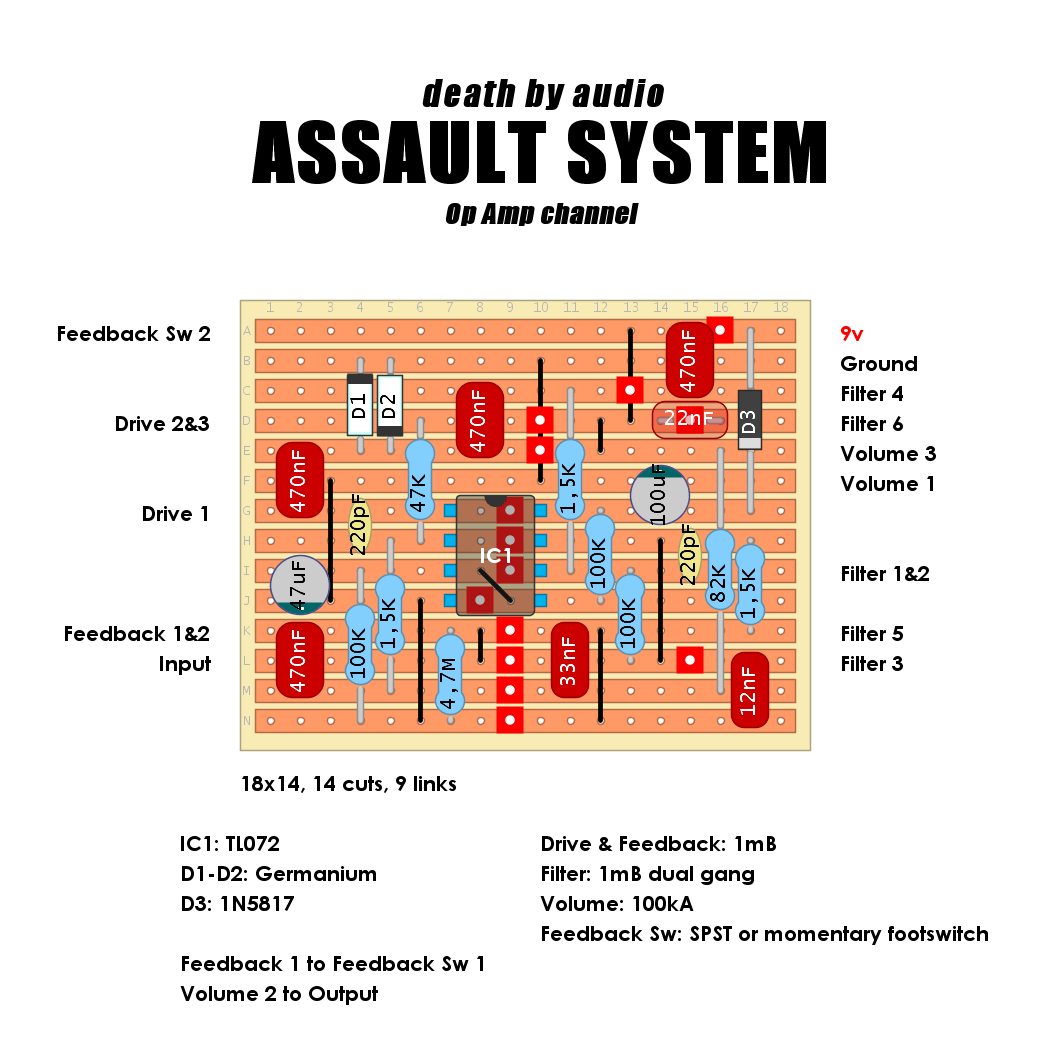

…and here is the op amp channel. Schematic (might to a complete layout for both channels if there is interest. It will require some extra offboard wiring due to two separate bypass switches and an order switch….)
