Month: February 2024
OFF-BOARD WIRING: Dual Effect Pedals, FX Insert Wiring
I have a couple of dual pedals planned, so time to jot down some off-board wiring plans. SWITCHED JACKS First off, I probably should touch on switched jacks – I’ll stick to the Cliff style, as these are the most common type used for guitar pedals. Switched jacks are great, as much as I … Read more
Cornerstone Gladio SC
Per request. This one was a PITA to draw with its four dual op amps and two buffered Vref lines. So it didn’t came out 125b friendly and it has more links than I prefer… Schematic is avaiable HERE.
Electronic Audio Experiments Musicman HD Preamp
Schematic is avaiable HERE. *Edit 240216* wyongroadelelectroncs verified this layout. He also noticed that the Bass and Mid pot connections was is incorrect in the linked schematic. The Layout is updated and tagged.
Capitalist Death Cult Fx Mexicali Räkmacka
Another layout and a dsign for those like it heavy by Chris at CDC Fx. No blurb from me, Chris does it better: Things are rainy and depressing here in California. And also depressing in the world, in general. So I’ve been drawing more layouts. I was inspired by both the Dead Air Sawzall, and … Read more

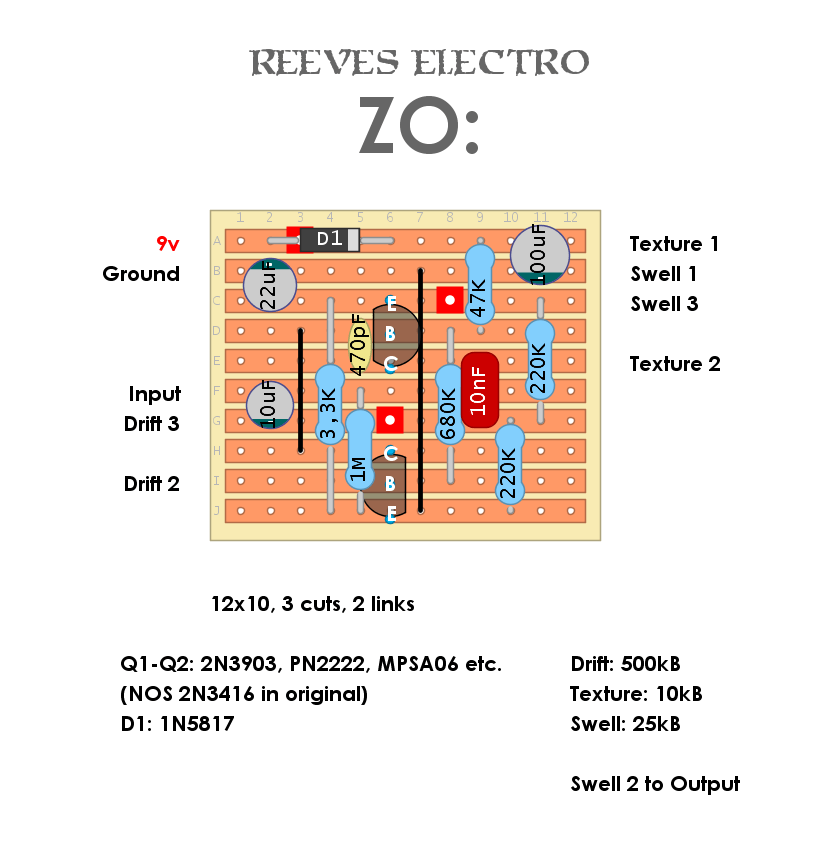

Reeves Electro Zo:
A modified and improved Hornby Skewes silicon Zonk 2 that goes for big bucks. Schematic and a breadboard session(!) is avaiable HERE. It seems that silicon transistors in the 150-200 hFe range works best in this circuit. *Update 240203* Reeves Electro got in touch with Gray Bench since two of the pot values was incorrect … Read more
