Devi Ever Shoegazer
Had a request for this one…yes I know it is a Soda Meiser into a Thorns Peaker and could be built on separate boards but…those small Devi circuits is so much fun to draw.😏

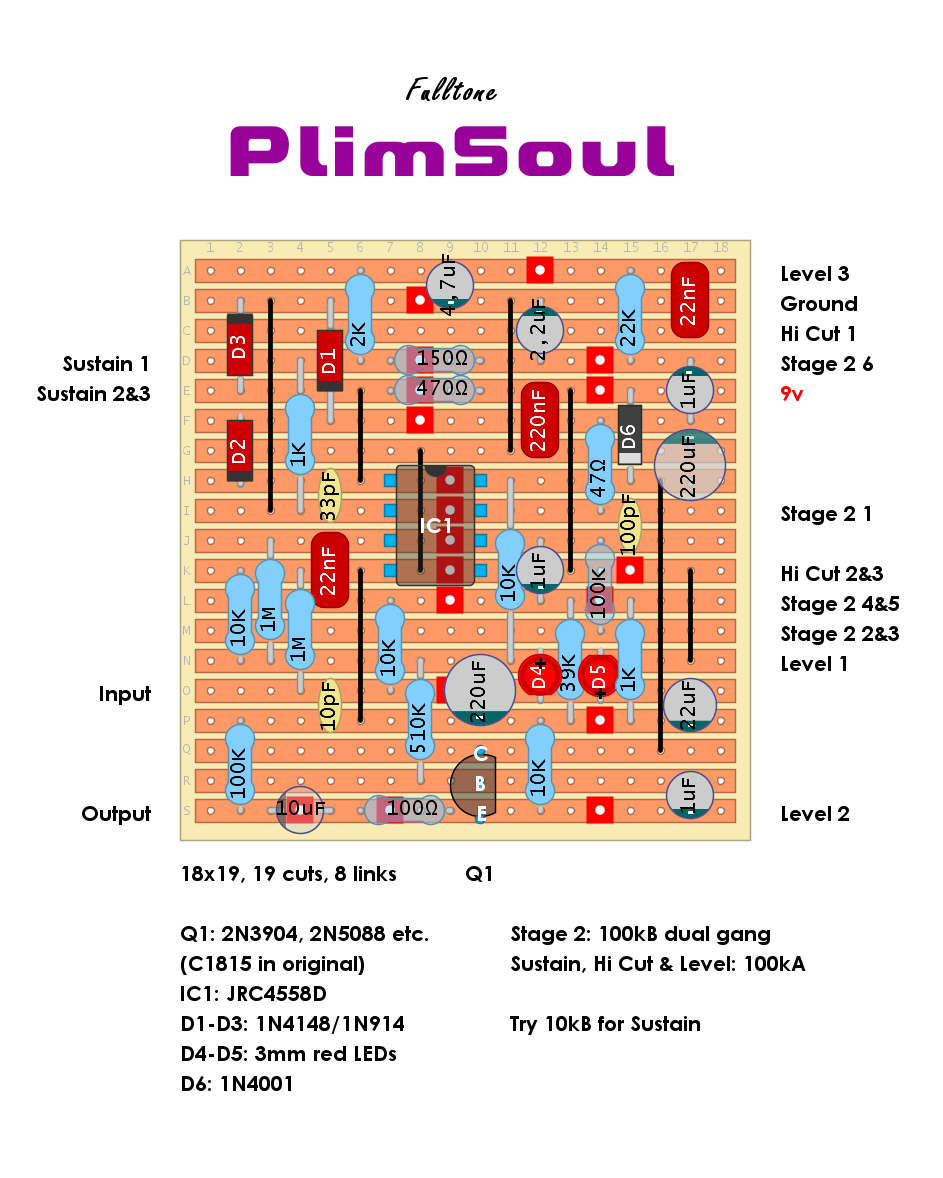

Fulltone PlimSoul
Schematic is avaiable HERE. Note that it is highly recommended to use a 10k pot for Sustain to avoid noise and dead spots in the sweep.
Dead Air Face Disaster
Phew, February has been a wild month here on the blog so lets end it with a BANG. This one is based on Tim Escobedo’s DIY classic, Ugly Face with quite a few added bells and whistles such as a optical LFO section, separate starve control for two of the chips and some tweaked values … Read more
EarthQuaker Devices Dream Crusher
Traced by Unsound Circuitry, once again, thanks, mate! It is a well known fact that this is a modified Ge Fuzz Face. The stock Fuzz control is ditched and replaced with a “Pre Gain2 control. It runs on normal power supply and is powered by soviet MP37B NPN germanium transistors. These are usually faily low … Read more
