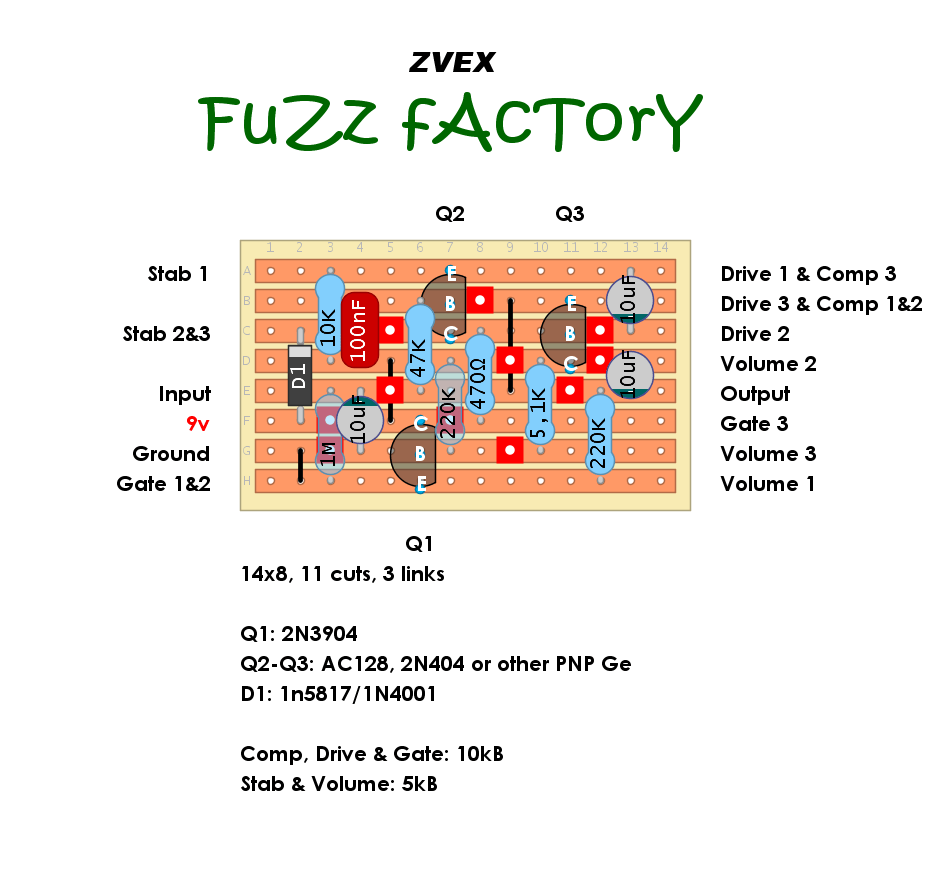

Devi Ever Improbability Drive
This one was quite a nightmare to draw so I’ve attached the schematic for anyone who is willing to take a second look.o.O
Noise

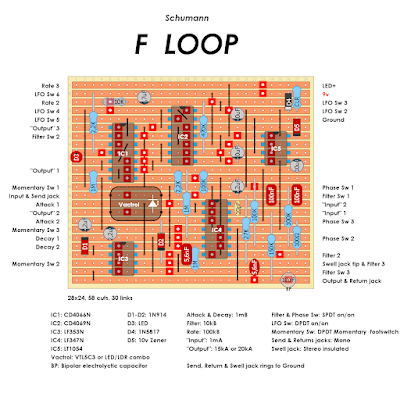

Schumann F Loop
Here is a an old, rare and weird one traced by Deadend Fx. It is a feedback looper that includes both modulation and an active filter sections. If you you don’t like the hassle with the offboard wiring this layout requires, Deadend Fx has nifty PCBs for sale. Schematic and more info HERE.

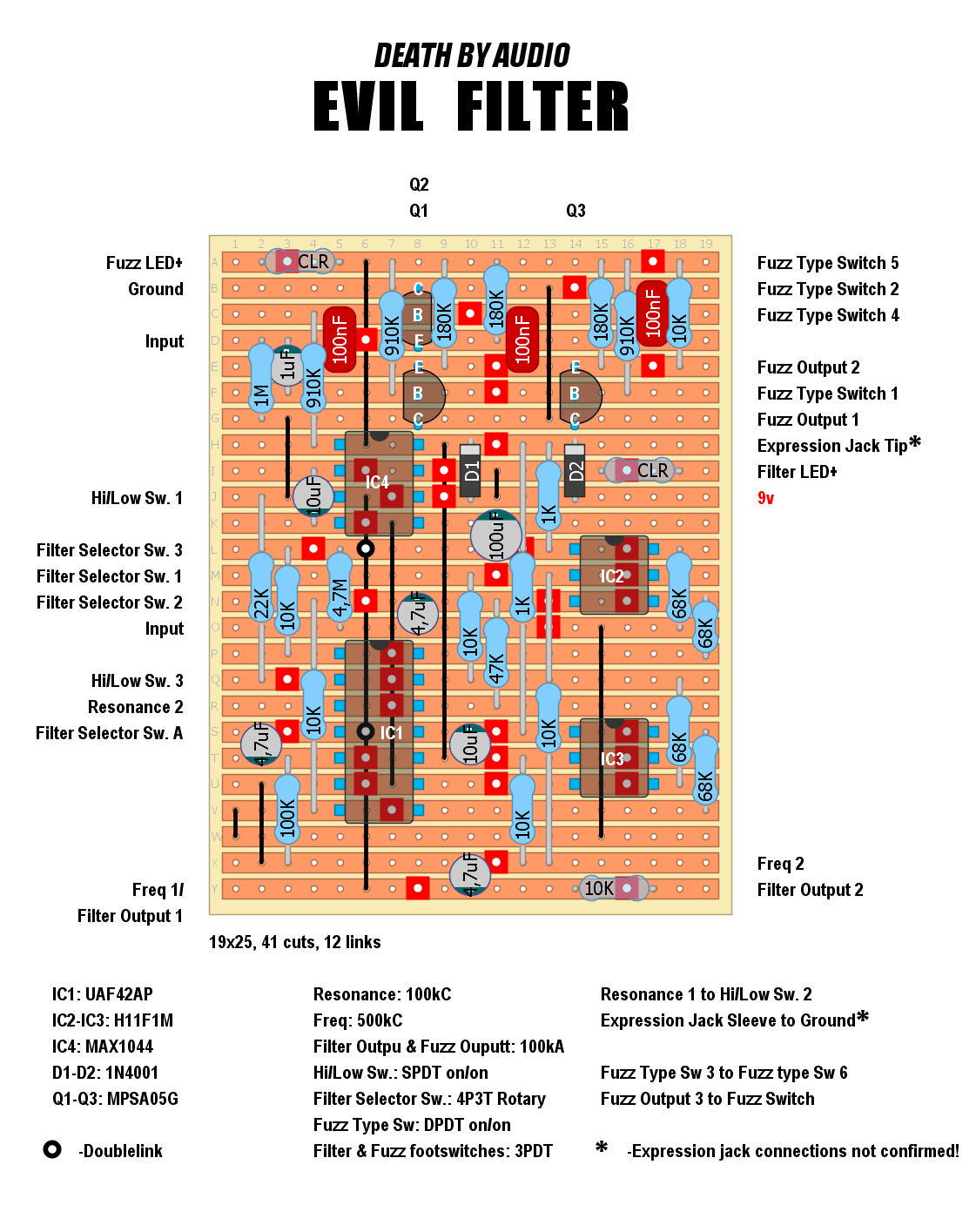

Death by Audio Evil Filter
The layout above is still unverified but I did a smaller simplified version a while ago. The fuzz section has been removed since didn’t care for it. Less offboard wiring and and a smaller enclosure…and you can put your favorite fuzz after it.

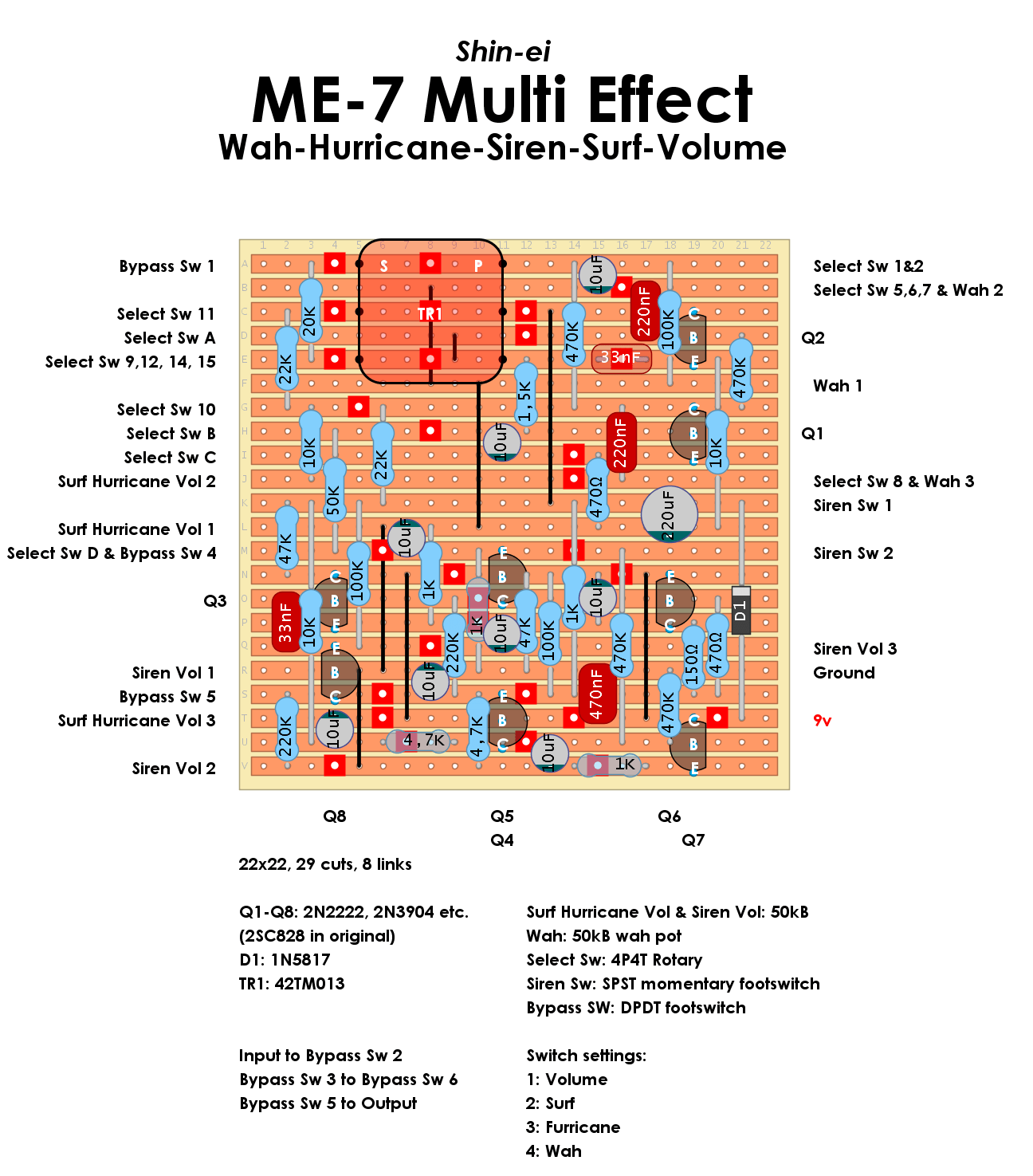

Shin-ei ME-7 Wah-Hurricane-Siren-Surf-Volume
This was a request. It is an old multieffect that includes wah, two noise generator settings, a volume pedal setting and a “Siren” switch which is an oscillator.
Seppuku Fx Memory Loss – alike
The layout is based on a quite diffucult-to-read schematic found at Mod Wiggler forum. It may contain some errors and there are few question marks next to some of the pots and one of the caps, so some “trial and error” might be necessary to get this thing working as it should. Also, the “Filter” … Read more
Lastgasp Art Laboratories Tone Mosaique
900 post. Phew. I think it is time for a couple of weeks break do deal with “outside world” issues.:-o. Will still log in here now and then and eventually upload something if something really interesting shows up. But here is a cool design from Lastgasp Art traced by Deadend FX, a bitcrucher/tremolo,/ringmod/envelope follower…thing. Schematic … Read more
Lastgasp Art Laboratories 88 / Super Oscillo Fuzz
Modified for 3PDT bypass switching. Correct schematic avaiable at Deadend Fx
Earthquaker Devices Data Corrupter
Think this is going to stay unverified for a while…:o) Schematic and info HERE.
