The layout is based on a quite diffucult-to-read schematic found at Mod Wiggler forum. It may contain some errors and there are few question marks next to some of the pots and one of the caps, so some “trial and error” might be necessary to get this thing working as it should. Also, the “Filter” … Read more
900 post. Phew. I think it is time for a couple of weeks break do deal with “outside world” issues.:-o. Will still log in here now and then and eventually upload something if something really interesting shows up. But here is a cool design from Lastgasp Art traced by Deadend FX, a bitcrucher/tremolo,/ringmod/envelope follower…thing. Schematic … Read more
Modified for 3PDT bypass switching. Correct schematic avaiable at Deadend Fx
Think this is going to stay unverified for a while…:o) Schematic and info HERE.

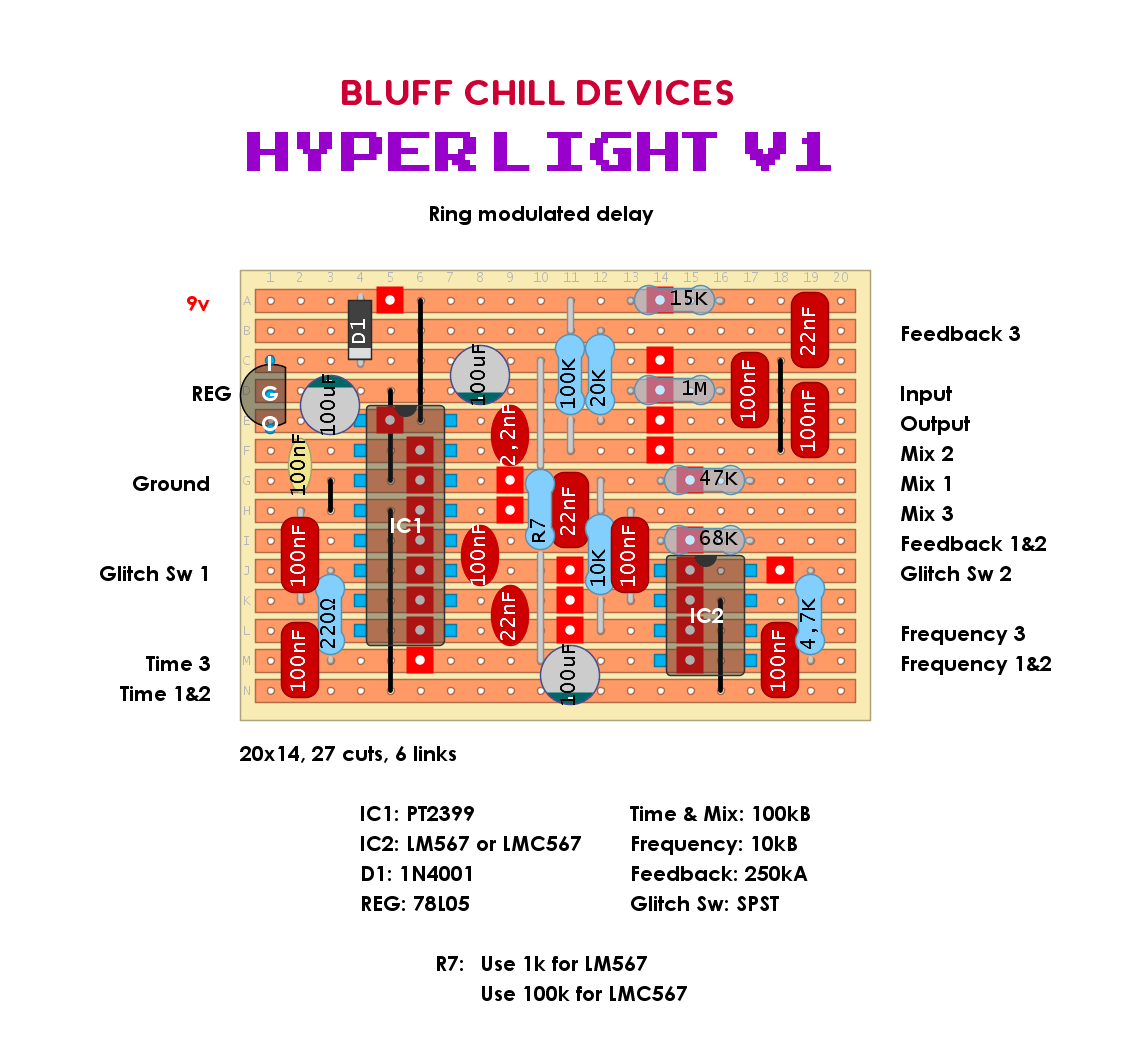

A quite interesting PT2399 delay with a ringmod circuit in the wet path for dirty and robotic delay repeats. Schematic is avaiable HERE.

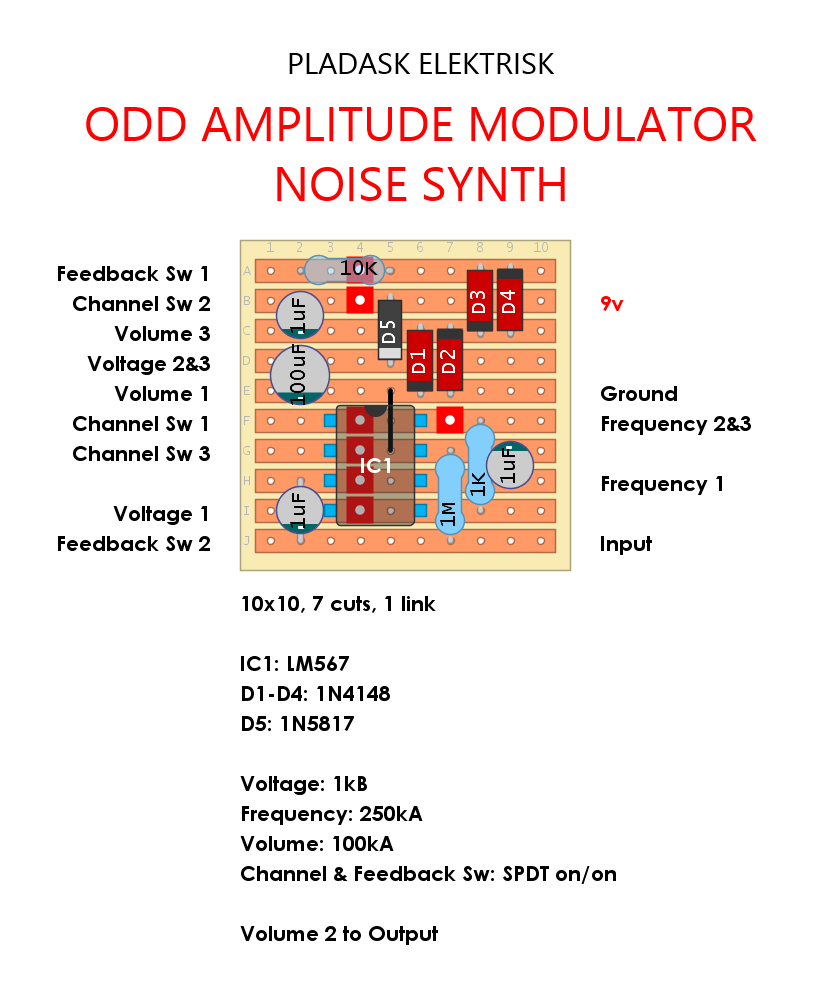

A liitle noise thingy designed by Knutolai at Pladask Elektrisk. A ring modulator based som Tim Escobedos Thing Modulator with Starve control, hard clipping diodes, cross over distortion diodes and a feedback switch…somethhing to keep the neighbours happy.
