Baja Mars Hall 59 Plexi

3 Jun 202612 Aug 2018 by chords

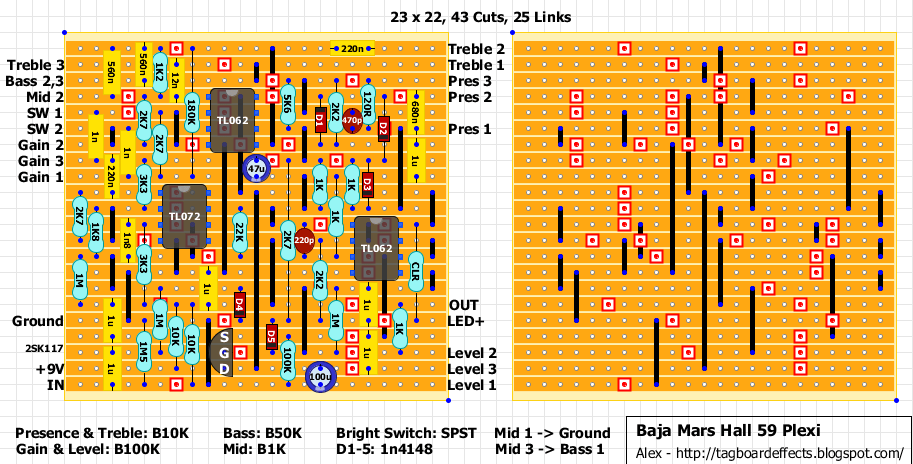

Baja MarsHal 59 Plexi 02bf5d6a3097

Bajaman’s overdrive circuit based on the Marshall 59 Plexi amplifier. Original thread and schematic available on the FSB forum here.

Categories Uncategorized Tags Amp Emulation, Baja, Difficult, Marshall, Overdrive, Plexi, tagboardeffects, Verified, Vero Leave a comment
