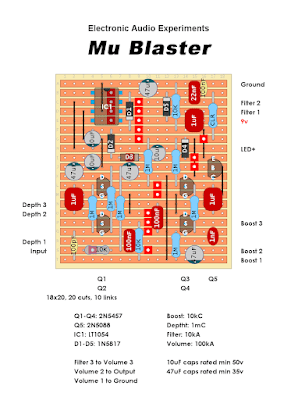

Electronic Audio Experiments Mu Blaster
This was a request. Schematic and a neat circuit description is avaiable HERE.
Unverified
Danelectro D-1 Fab Tone Distortion
A very old request and I forgot I had it in a folder. Somewhat related to some of the DOD “Lamb” series dirt boxes,
Motley Crue Dr. Feelgood Distortion
Not much info on the manufacturer of this one but I believe it was made by TC Electronics. Note that I have seprated the the Instrument/Line level section into a daughterboard. Simply to to have the option to leave it out and cram the main board into a smaller enclosure… Schematic is avaiable HERE. … Read more
FAL Treble Boosters
Found these posted by the one and only pinkjimiphoton on the usual places. Both are very old and rare always on fixed treble boosters. Should be quick fun small builds. You can easily make them NPN by flipping the electrolytic caps, power and ground connections. I believe low gain transistors will work fine in them. … Read more
Lastgasp Art Laboratories Sick Pitch King Jr.
Schematic and setup guide avaiable HERE. And as usual, don’t hesistate to order some boards from Deadend Fx.
Monster Effects Mastortion
I know, I know, it’s been a long time since a new layout has been posted. We have not gone away, just time has a habit of getting away from you, especially with the current state of the pandemic. I’ve got a running list for more layouts to come, but I don’t want to post … Read more
