Fortin 33
“Fredrik Thordendal’s signature 33 pedal is a sonic detonator tool that will transform any amplifier into a metal wrecking ball machine!“ Schematic and pcb available on Pedalpcb website here.
Month: March 2020

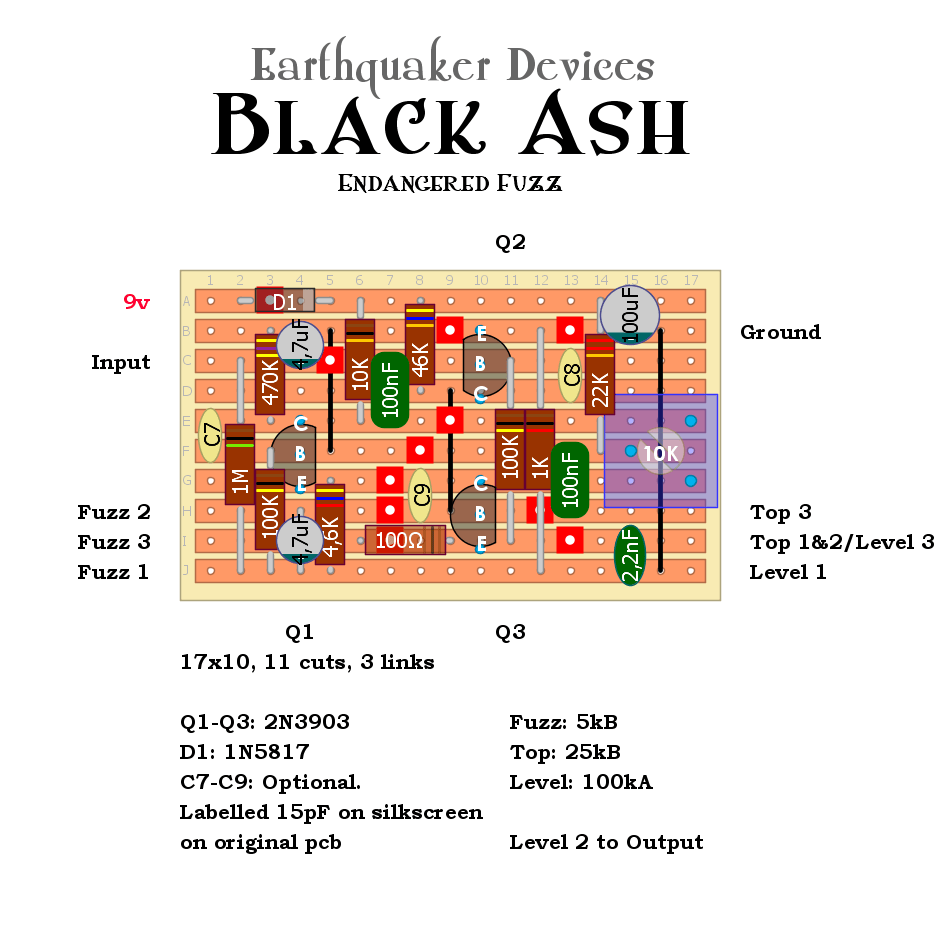

Earthquaker Devices Black Ash Endangered Fuzz
Traced by cenotapf and AlexS. It’s basically a silicon Tonbender Mk 2 with a quite subtle treble cut control. 2N3903 transistor is a low gain version of 2N3904 so any NPN silicon with Hfe 100-150 works like MPSA06, PN22222, 2N2369 etc. Verified by AlexS
EarthQuaker Devices The Warden
Original Info: The Warden is an optical compressor with a feature set usually reserved for studio grade units. Built with high grade components and internally powered by 18v, The Warden has loads of gain and sustain on tap. With complete control over attack, release, sustain and ratio, The Warden will allow everything from a heavy … Read more
Fuzzhead Fx Soundwave War
Just a variation of various Death by Audio circuits using reverse beta gain (reversed transistor gain). Initially I was messing with Fuzz War 7 transistor fuzz and eventually got it to work but it was unstable and the decay was very erratic. Replaced the five first stages with the four first stages of Soundwave Breakdown … Read more
