Fuzz

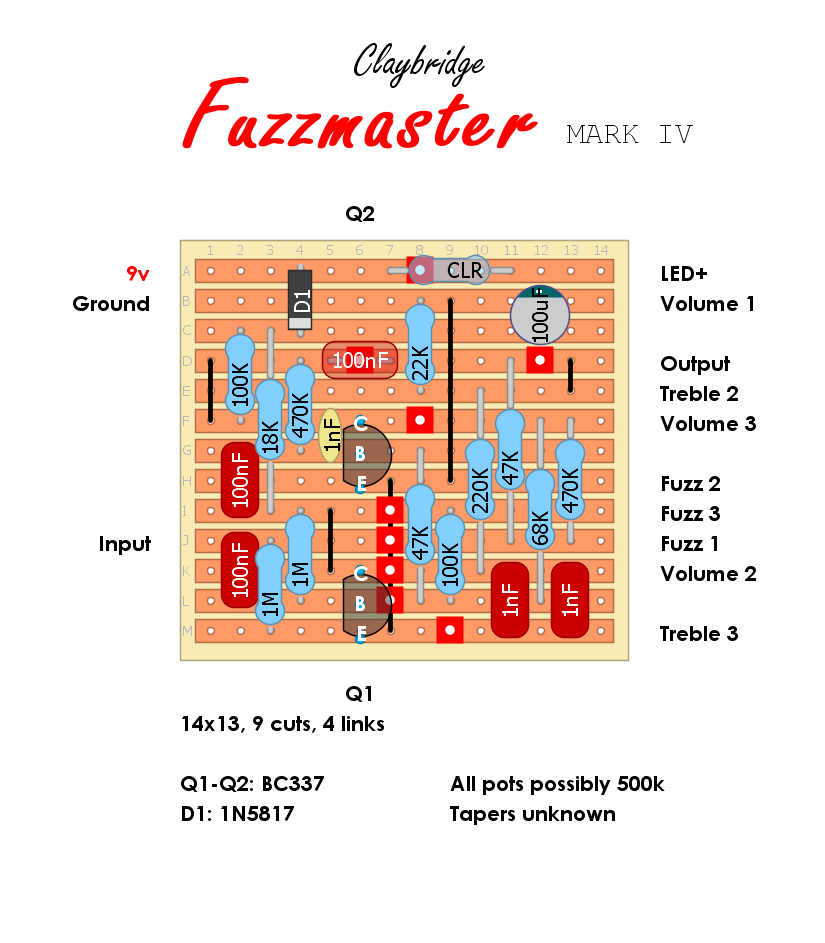

Claybridge Fuzzmaster Mk. IV
How about an austrailian fuzz box from the late 60s? Amazing that there is still undiscovered old circuits around… Note that pot values and tapers are still unconfirmed but all of them is most likely 500k. Schematic is avaiable HERE.

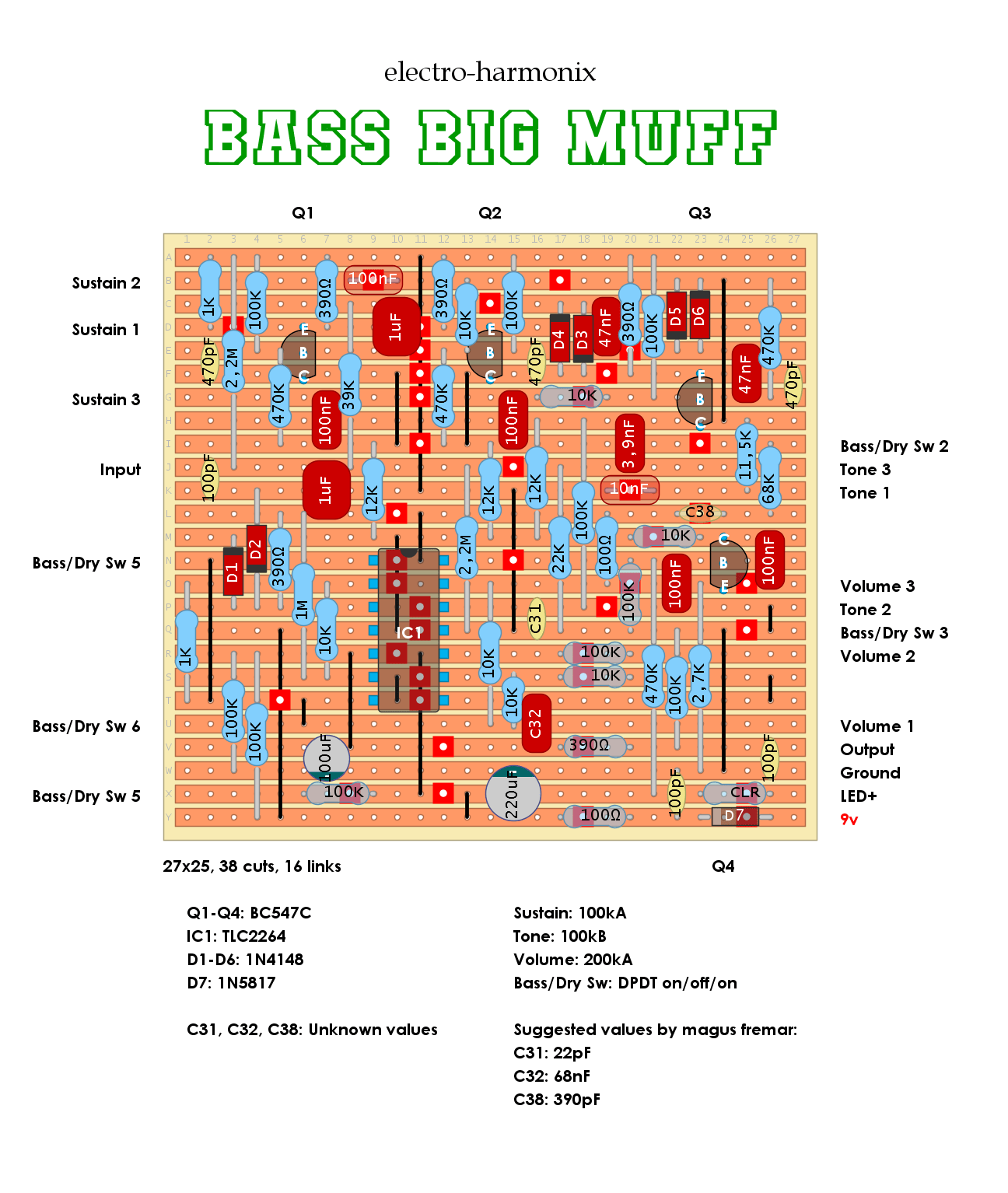

Electro Harmonix Bass Big Muff
Per request. Was a bit hesistant to upload this since there are three missing cap values. But socketing some values should get you close enough. magus femar did some socketing and ended up with some values that works well. See the notes below the layout. Note that I omitted the ferrite beads since they are … Read more

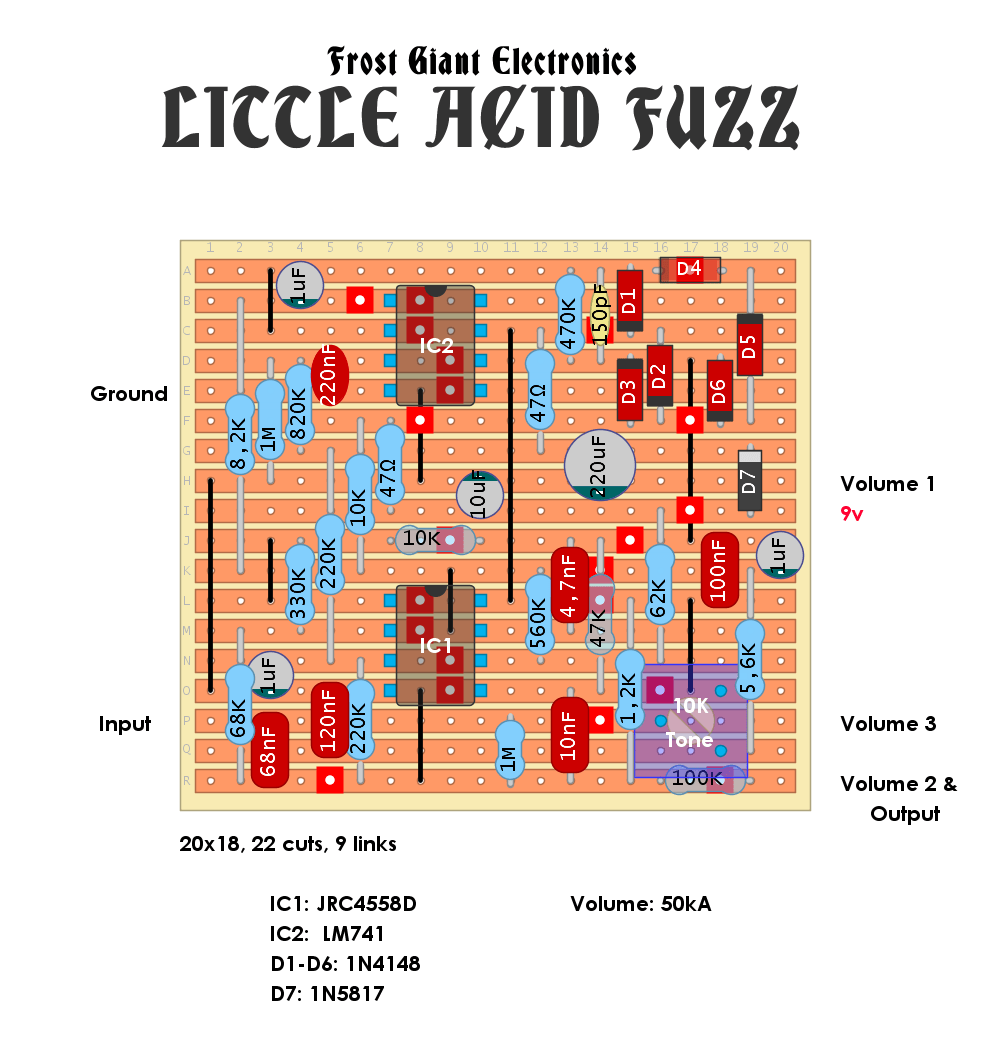

Frost Giant Electronics Little Acid Fuzz
Phew, loys of work lately so not much time for the blog and building lataely. A few people have sent me some new traces and new layouts. These will be uploaded today. First out is Little Acid Fuzz by Frost Giant Electronics. Another Frost Giant PCB traced by Sergio. Based on the op amp … Read more

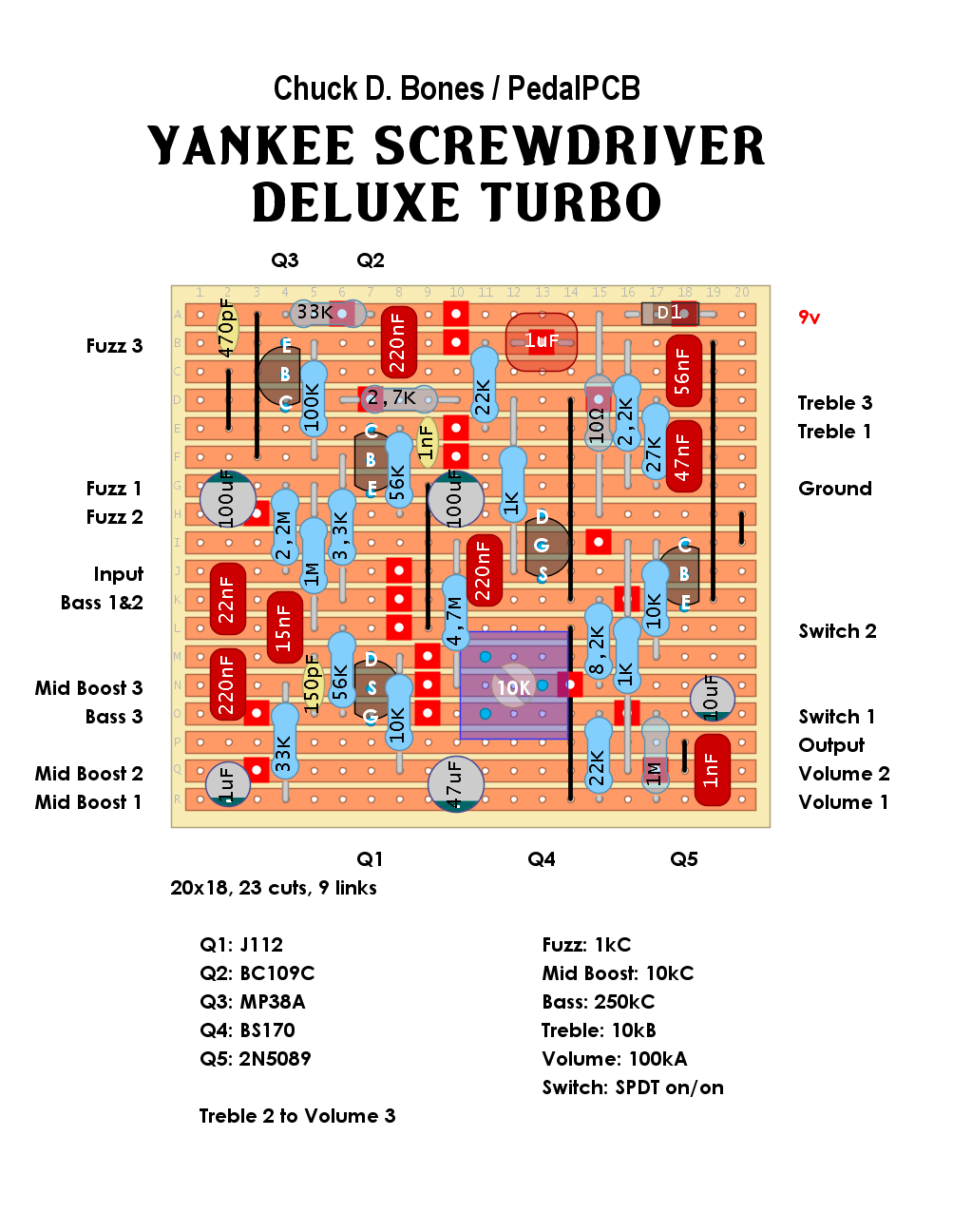

PedalPCB/Chuck D. Bones Yankee Screwdriver Deluxe Turbo
Based on Skreddy Screwdriver but Mr Bones modified into quite something else… Schematic is avaiable HERE.
