TC Electronics Mojo Mojo Overdrive
Per request. The layout stays mostly true to the schematic. One half of the op amps was unused to I used it for buffered Vref which doesn’t hurt. Quite an interesting design if a bit over engineered.:-)
Biyang Tonefancier BL-8 Blue
This one is kind of a take on a single opamp overdrive with hard clippers ala OD250/Dist+, but the gain control is placed on the feedback loop like in many standard overdrive designs. Nothing too speacial or different, but a nice addition to overdrive palette nevertheless. Snippet from the spiel:The BL-8 delivers a creamy yet … Read more
Exar HR-03 Hammer
Another one from Vitalii’s traces. This one seems quite nice modern metal distortion with reasonable frequency characteristics. Should be enough gain too. The 47K at the top (horizontal one) may be a point to tweak for even more over the top gain. Like so many of these pedals of Polish origin, this one seems to … Read more

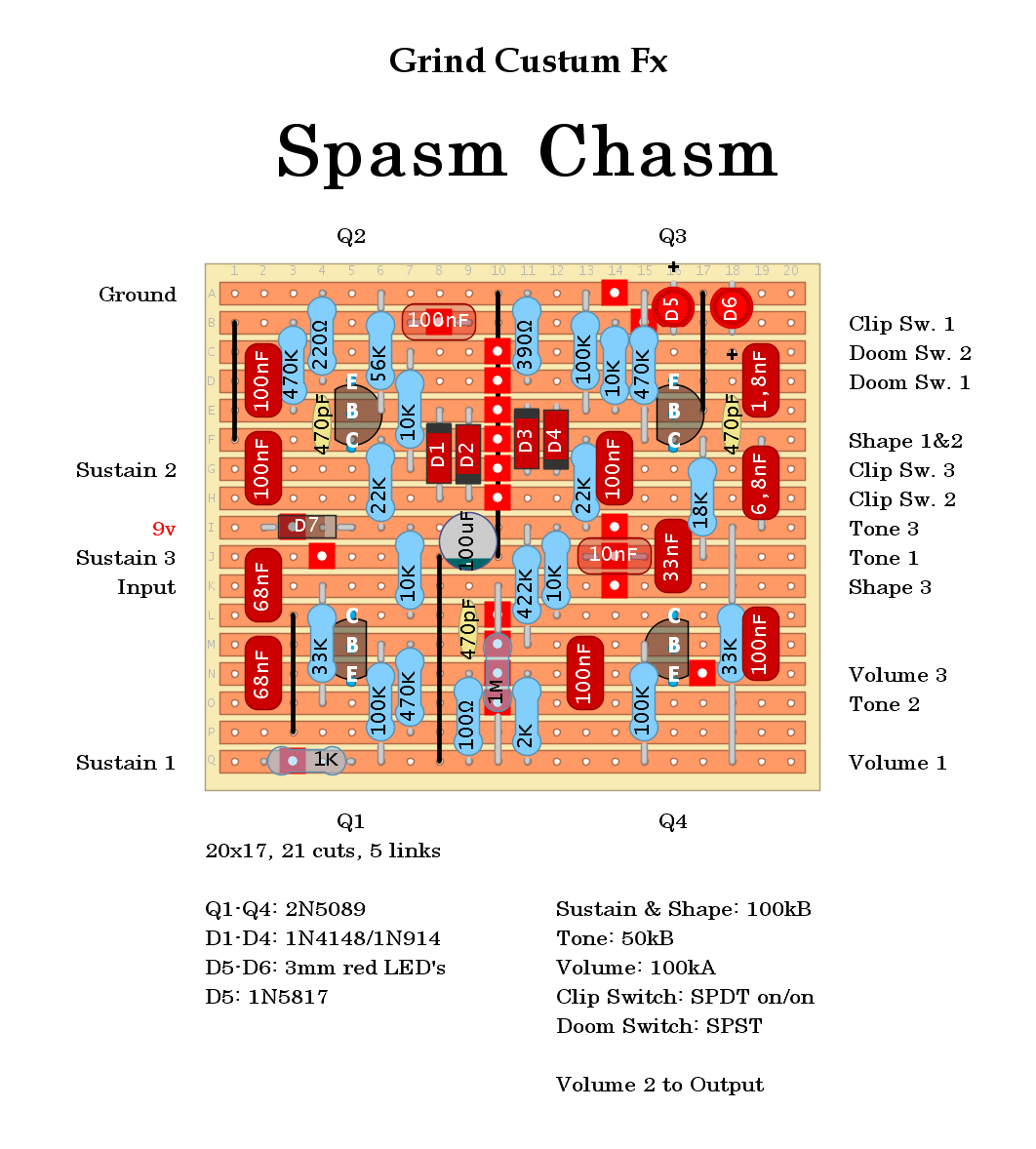

Grind Custom Fx Spasm Chasm
By looking at the component values, this appears to be a smoother, tighter, civilized and mid oriented Muff variant especially when you compare it to Ultrastoner and TSM680…
Danelectro FAB Distortion
Based on Maxon Distortion Master but with a hardwired bass control and different component values along the signal path. The buffered bypass swithing wasn’t included in the schematic so I left it out.
Ltava Fuzz Wah – modified
The fuzz and wah section of Ltava Fuzz/Vibrato/Wah multi effects pedal manufactured in Ukraine in the early 80s. The LFO section was left out simply because the layout would be too big. The internal trimpots is taken out on the outside for external gain controls. And a onboard voltage inverter was added. Schematic: … Read more
