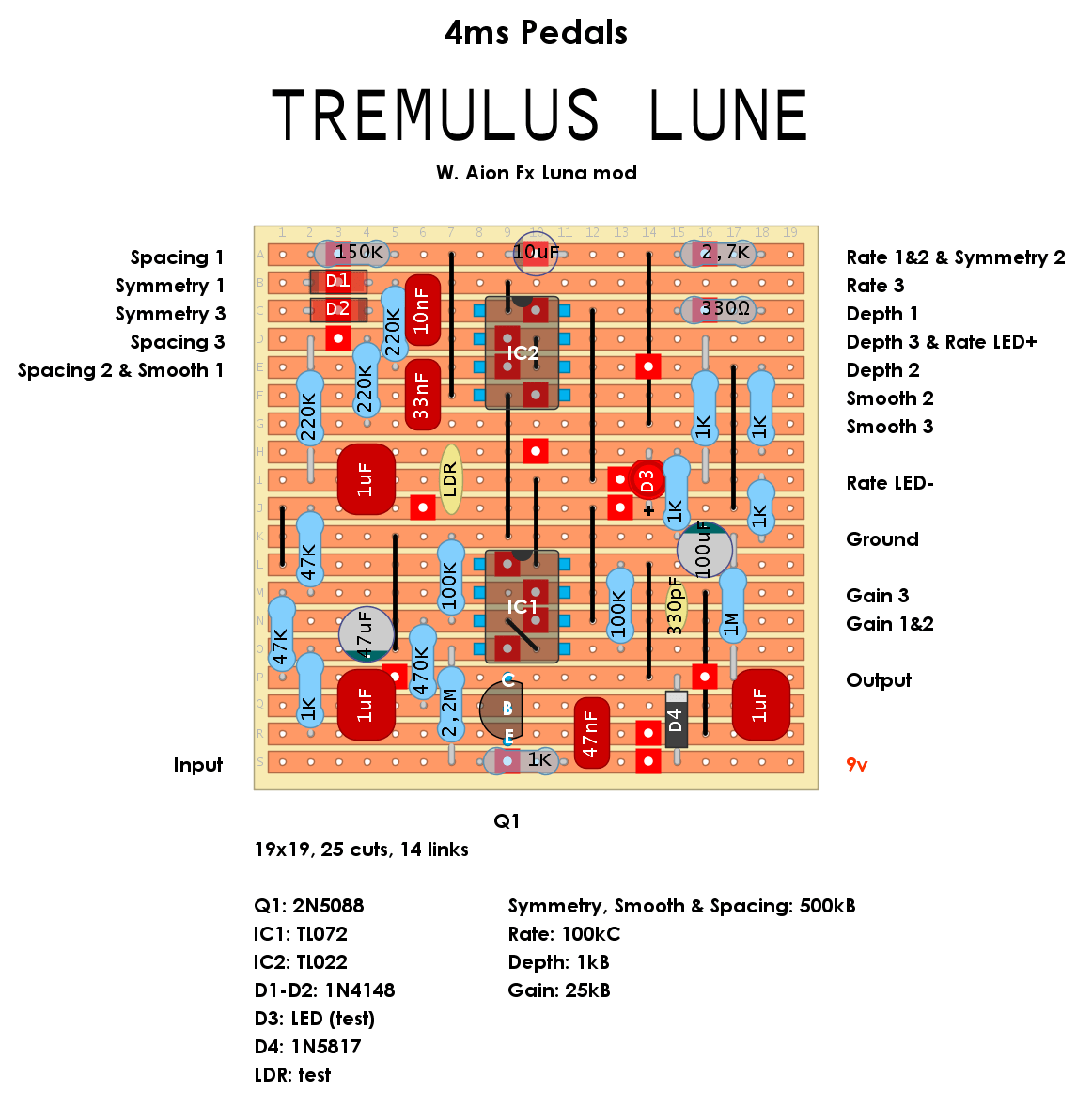

4ms Pedals Tremulus Lune
There was a request for 4ms Tremulues Lune with two LFO’s but couldn’t find a schematic for it. So we’re stuck with the normal version. But for this layout I’ve incorporated an input buffer found in their “Luna” project. Schematic is aviable HERE as well different ways to wire up the rate LED and the … Read more

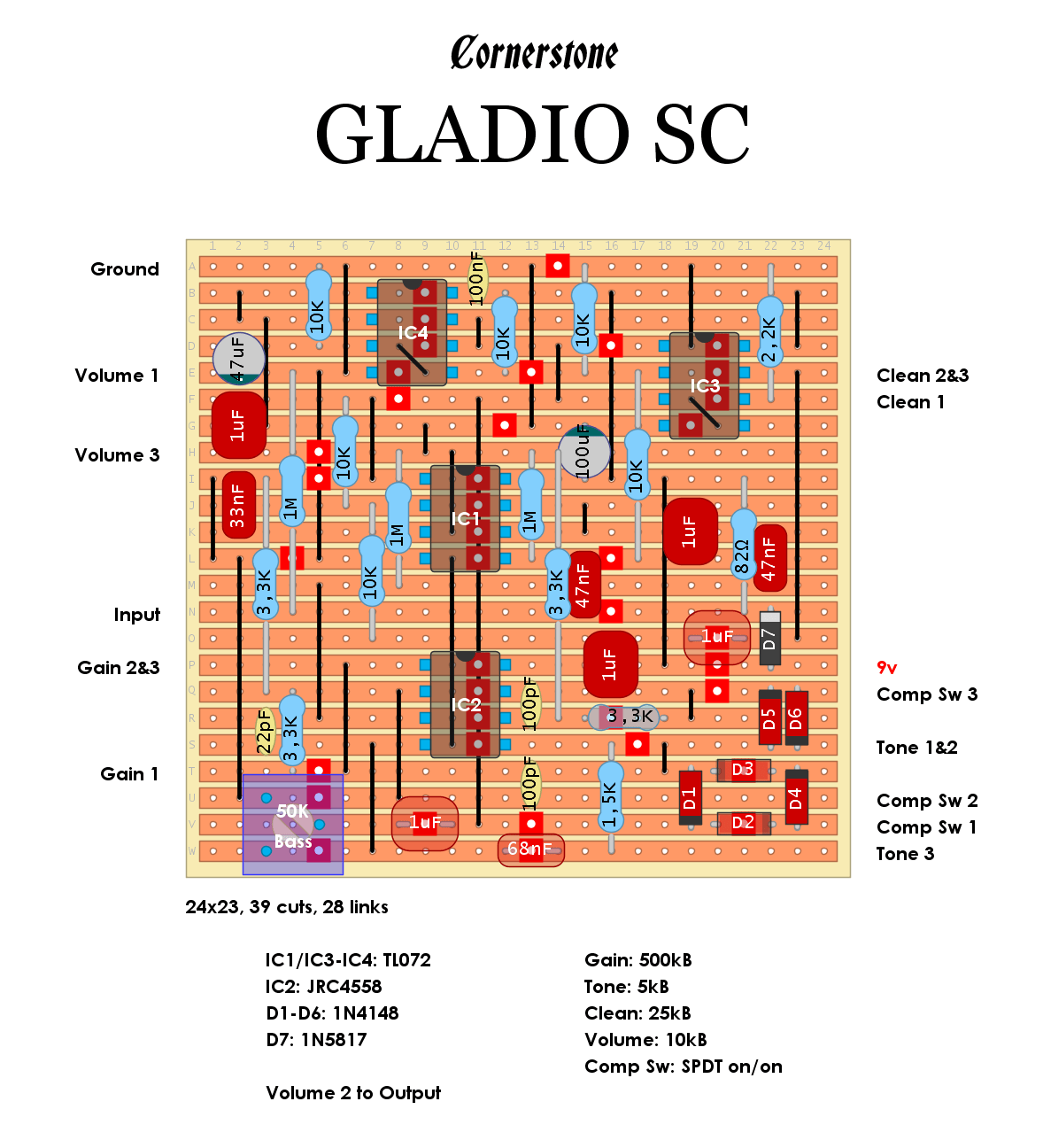

Cornerstone Gladio SC
Per request. This one was a PITA to draw with its four dual op amps and two buffered Vref lines. So it didn’t came out 125b friendly and it has more links than I prefer… Schematic is avaiable HERE.

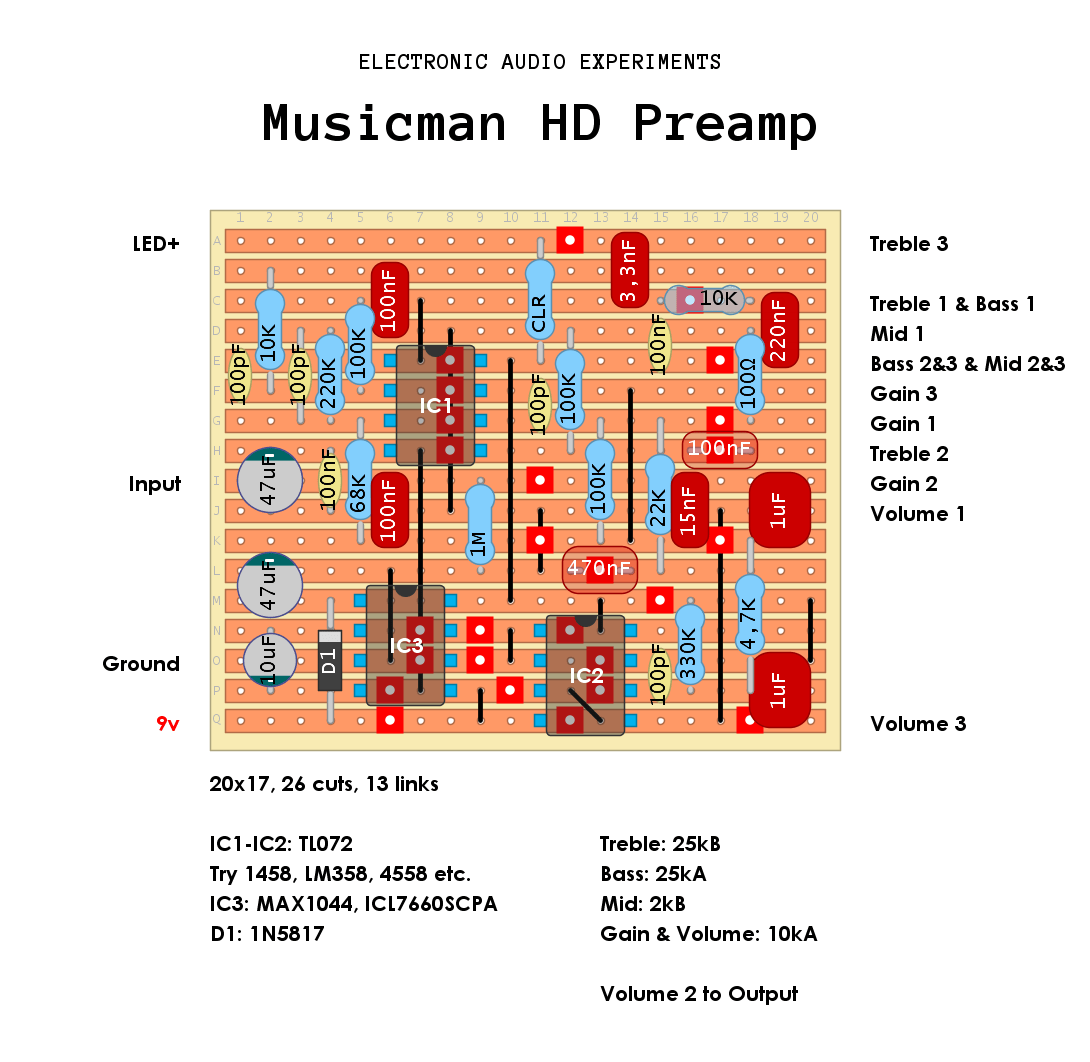

Electronic Audio Experiments Musicman HD Preamp
Schematic is avaiable HERE. *Edit 240216* wyongroadelelectroncs verified this layout. He also noticed that the Bass and Mid pot connections was is incorrect in the linked schematic. The Layout is updated and tagged.
Capitalist Death Cult Fx Mexicali Räkmacka
Another layout and a dsign for those like it heavy by Chris at CDC Fx. No blurb from me, Chris does it better: Things are rainy and depressing here in California. And also depressing in the world, in general. So I’ve been drawing more layouts. I was inspired by both the Dead Air Sawzall, and … Read more
